Trailer Towing System: Location

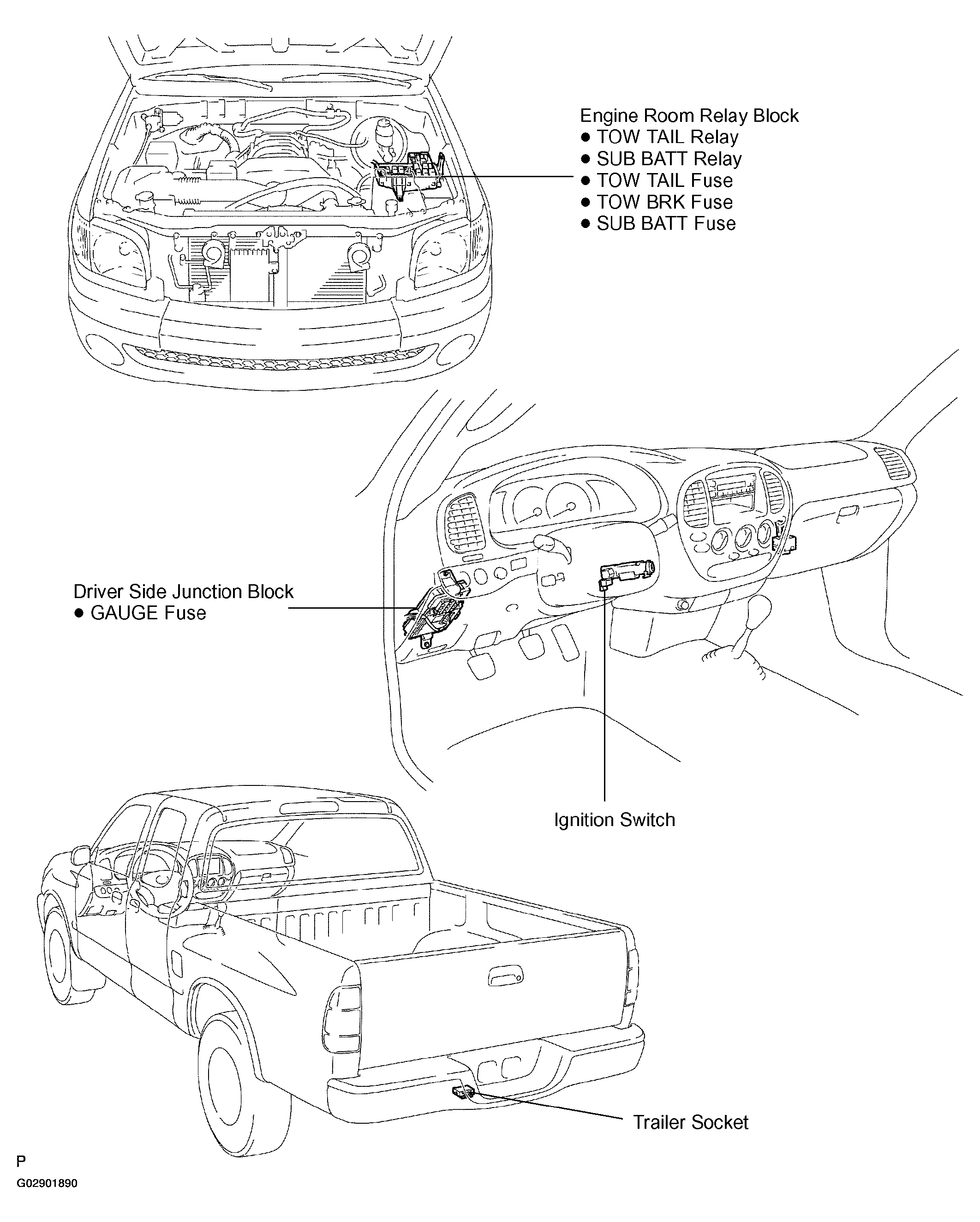

Fig 1: Identifying Trailer Towing Components

G02901890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
