Body Electrical Systems - Troubleshooting
>>
TROUBLESHOOTING - Tundra
>>
Problem Symptoms Table
>>
Power Window Control System
Power Window Control System

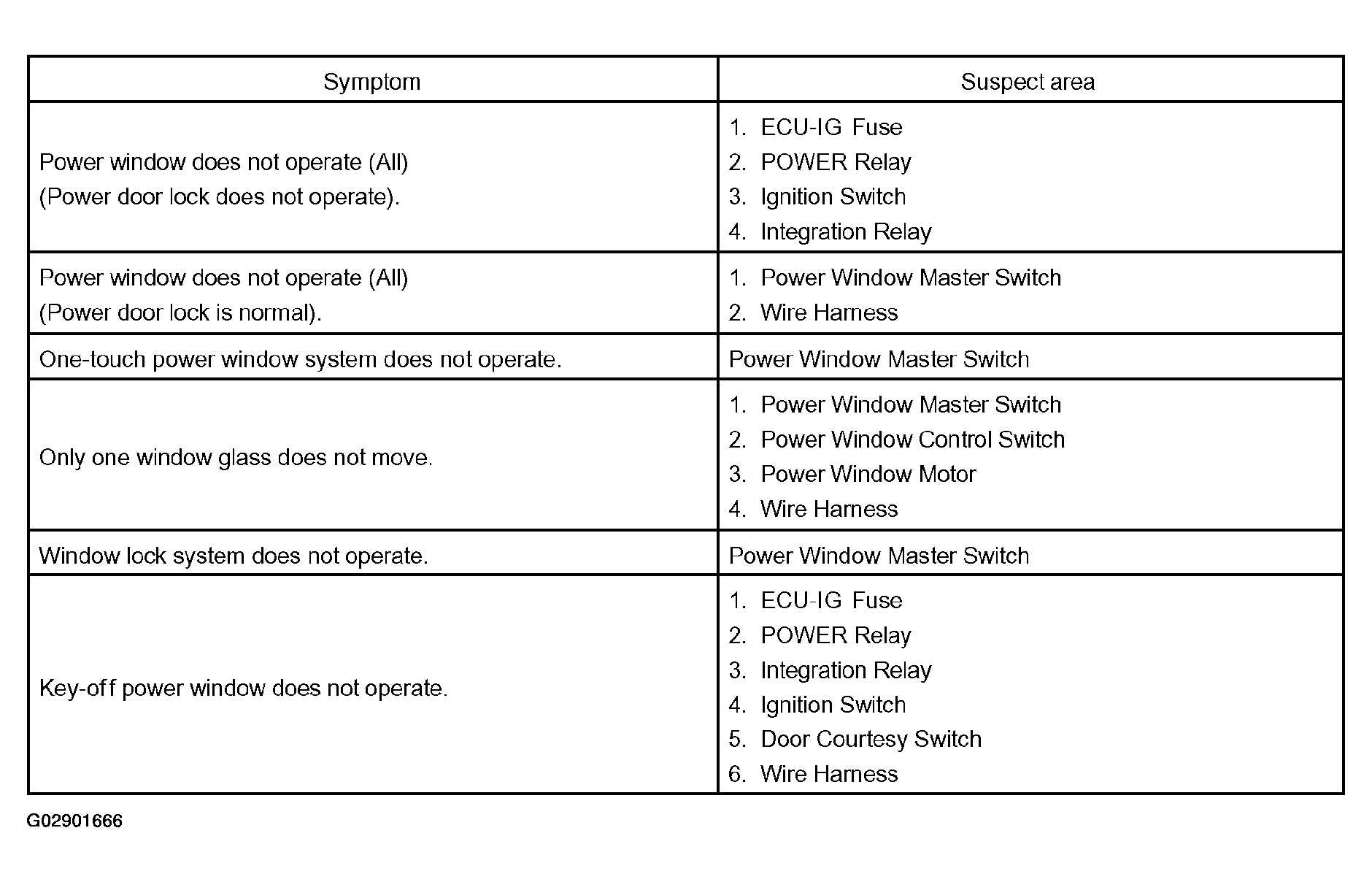

Fig 1: Power Window Control System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
