Seat Belt: Components

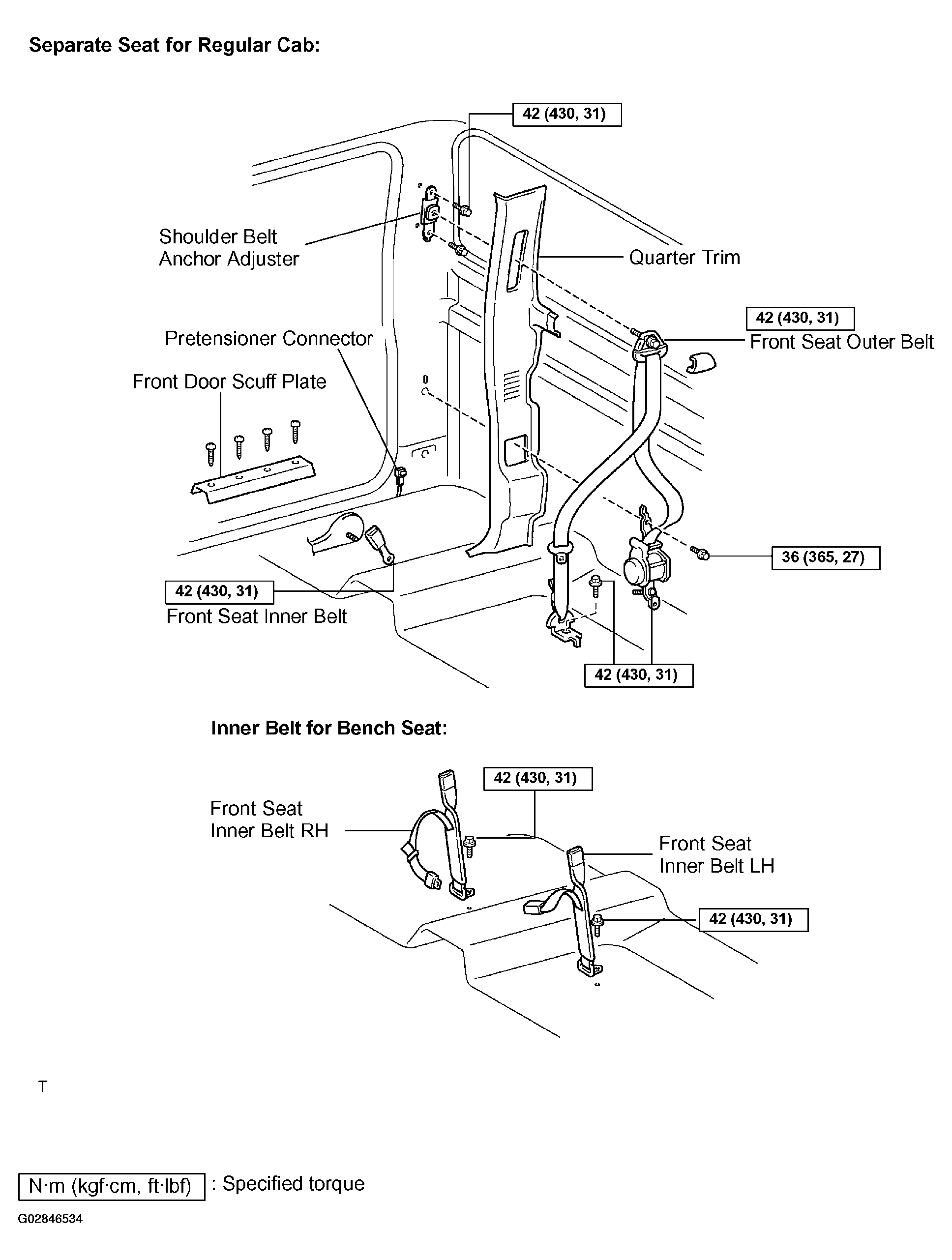

Fig 1: Locating Seat Belt Components (Separate Seat For Regular Cab)
G02846534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

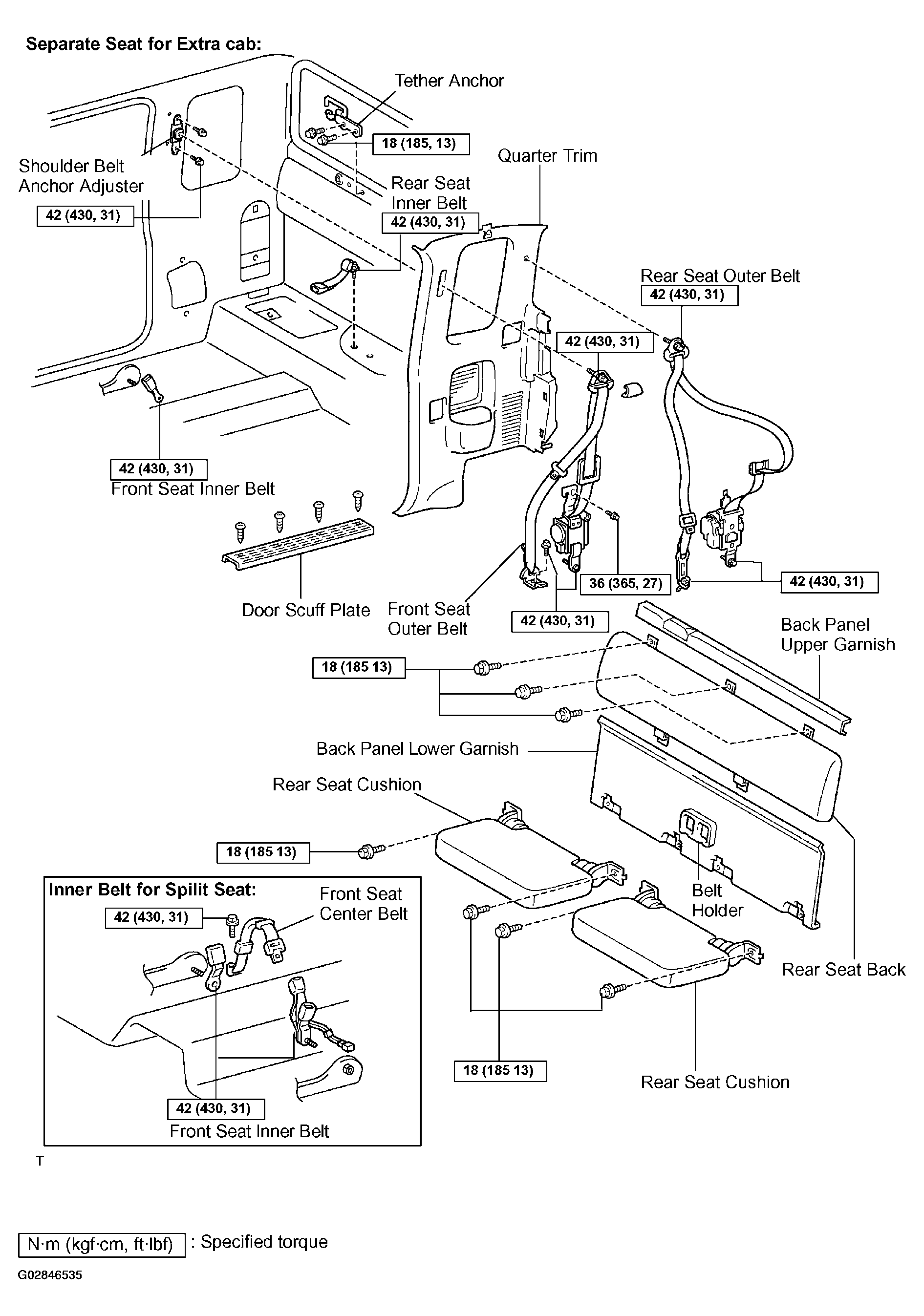

Fig 2: Locating Seat Belt Components (Separate Seat For Extra Cab)
G02846535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

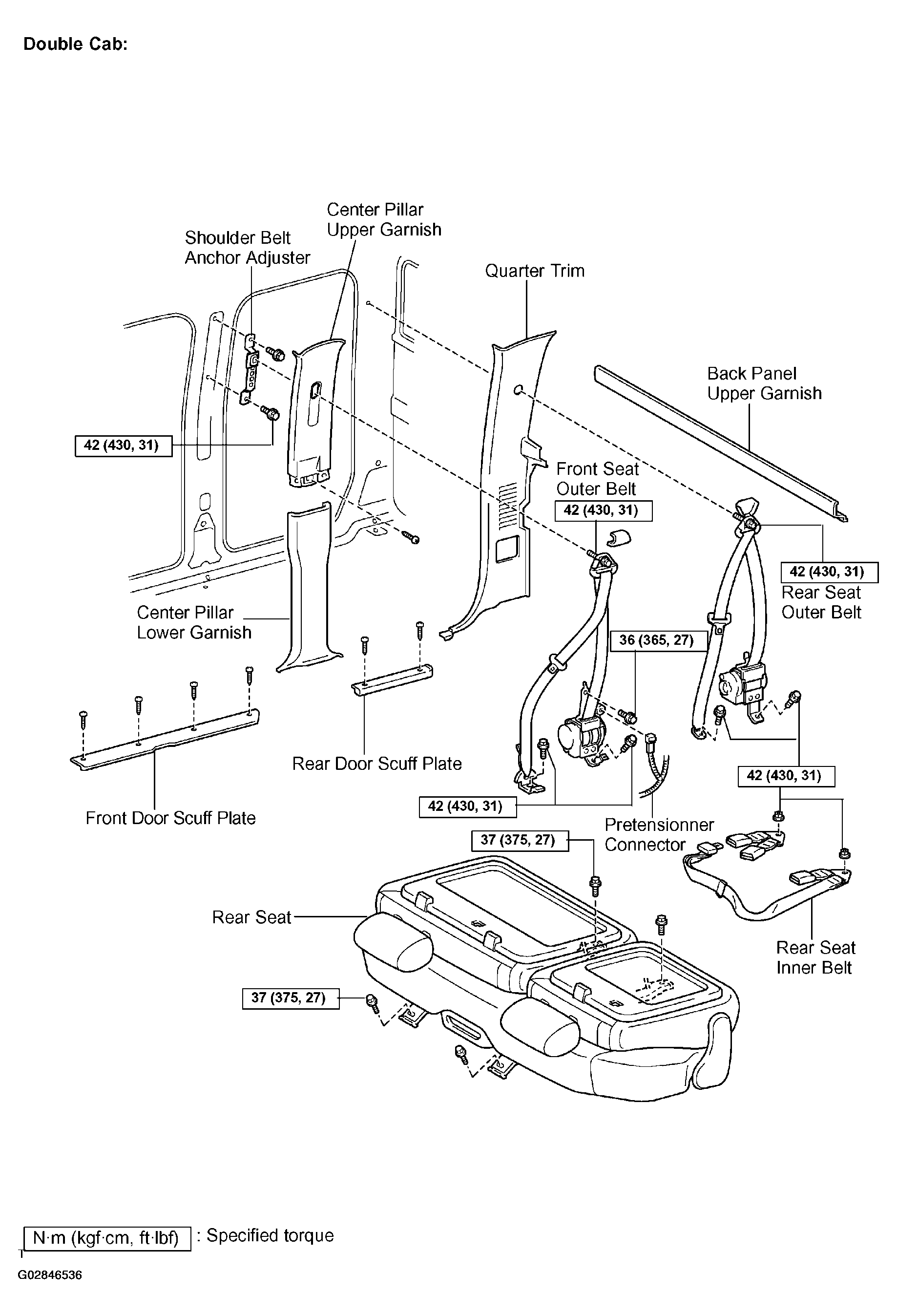

Fig 3: Locating Seat Belt Components (Double Cab)
G02846536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
