Rear Brake Speed Sensor: Components

NOTE:

Pre runner is described below.

RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB

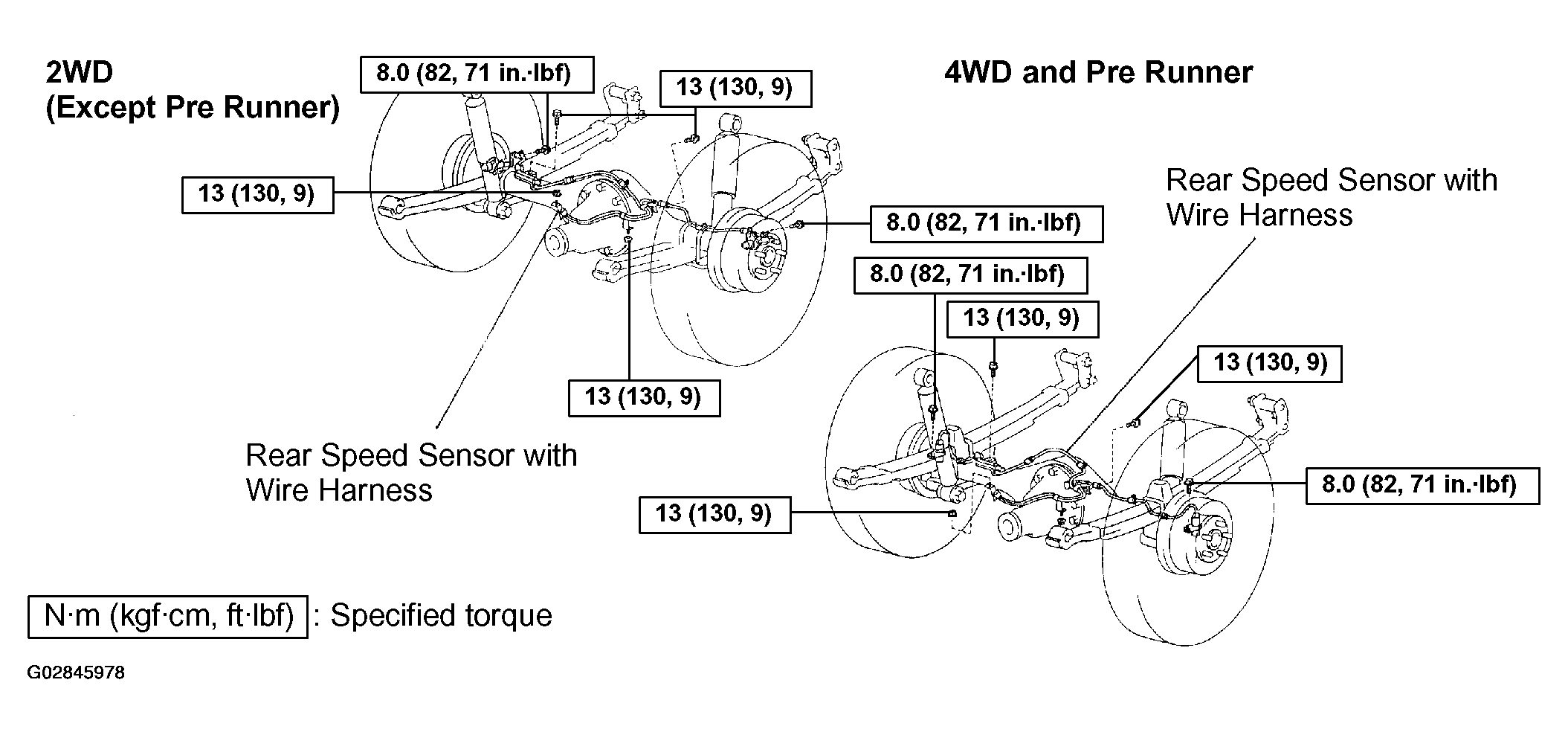

Fig 1: Identifying Rear Speed Sensor Components
G02845978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
