Tilt Steering Column: Components

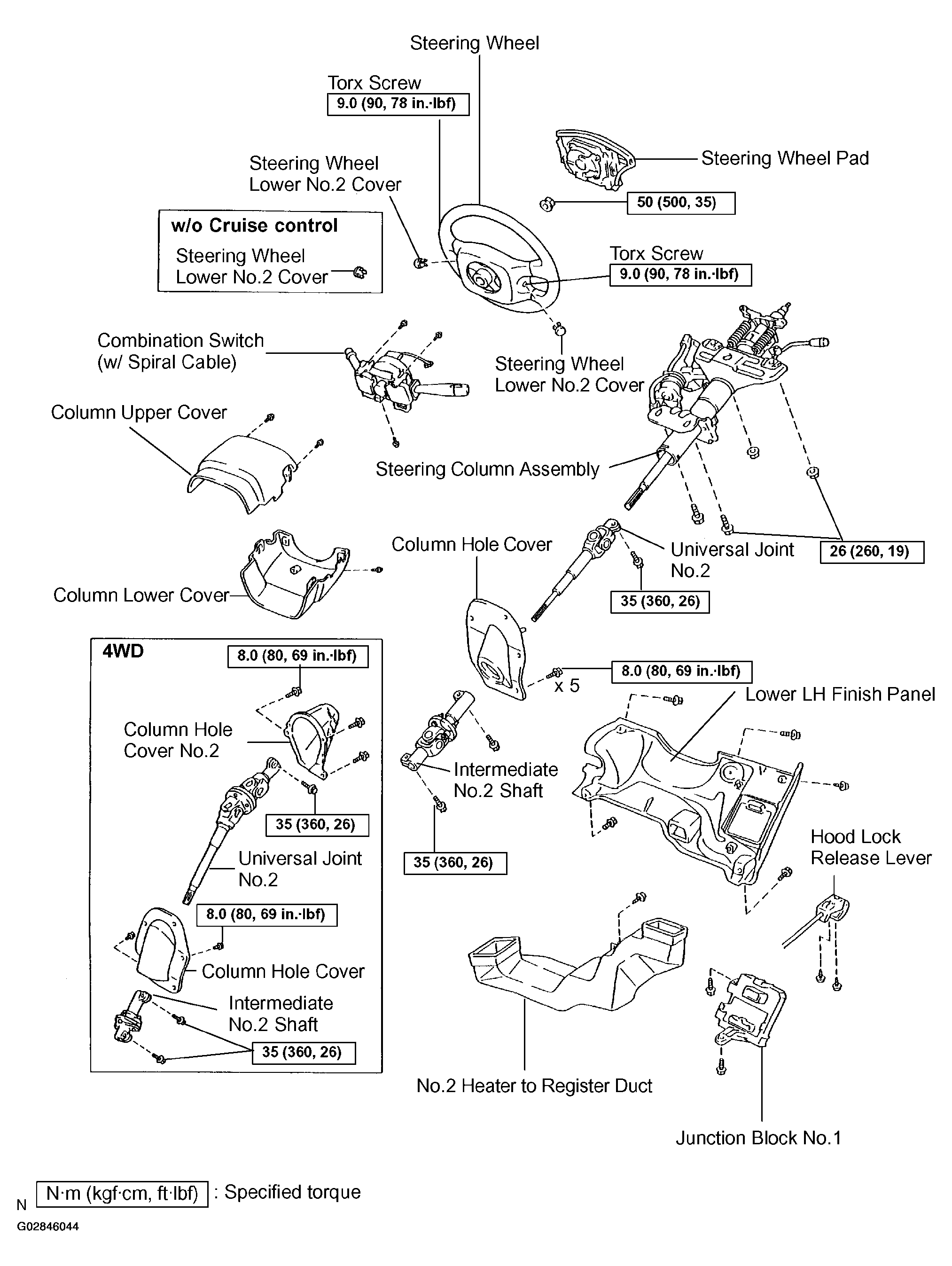

Fig 1: Locating Tilt Steering Components (1 Of 2)
G02846044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

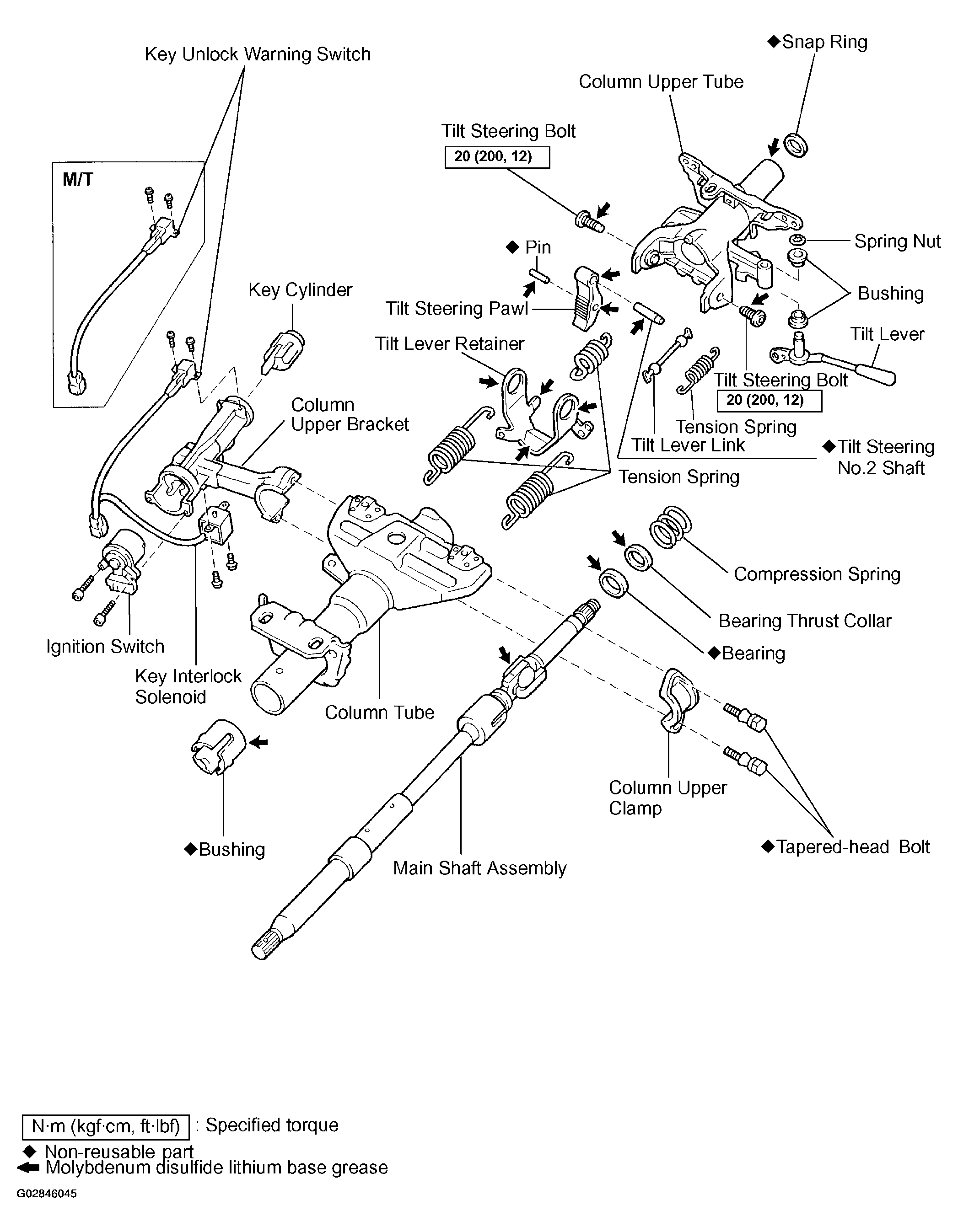

Fig 2: Locating Tilt Steering Components (2 Of 2)
G02846045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
