Non-Tilt Steering Column: Components

NOTE:

• For precautions, see STEERING SYSTEM - PRECAUTIONS article.
• For troubleshooting, see STEERING SYSTEM - TROUBLESHOOTING article.

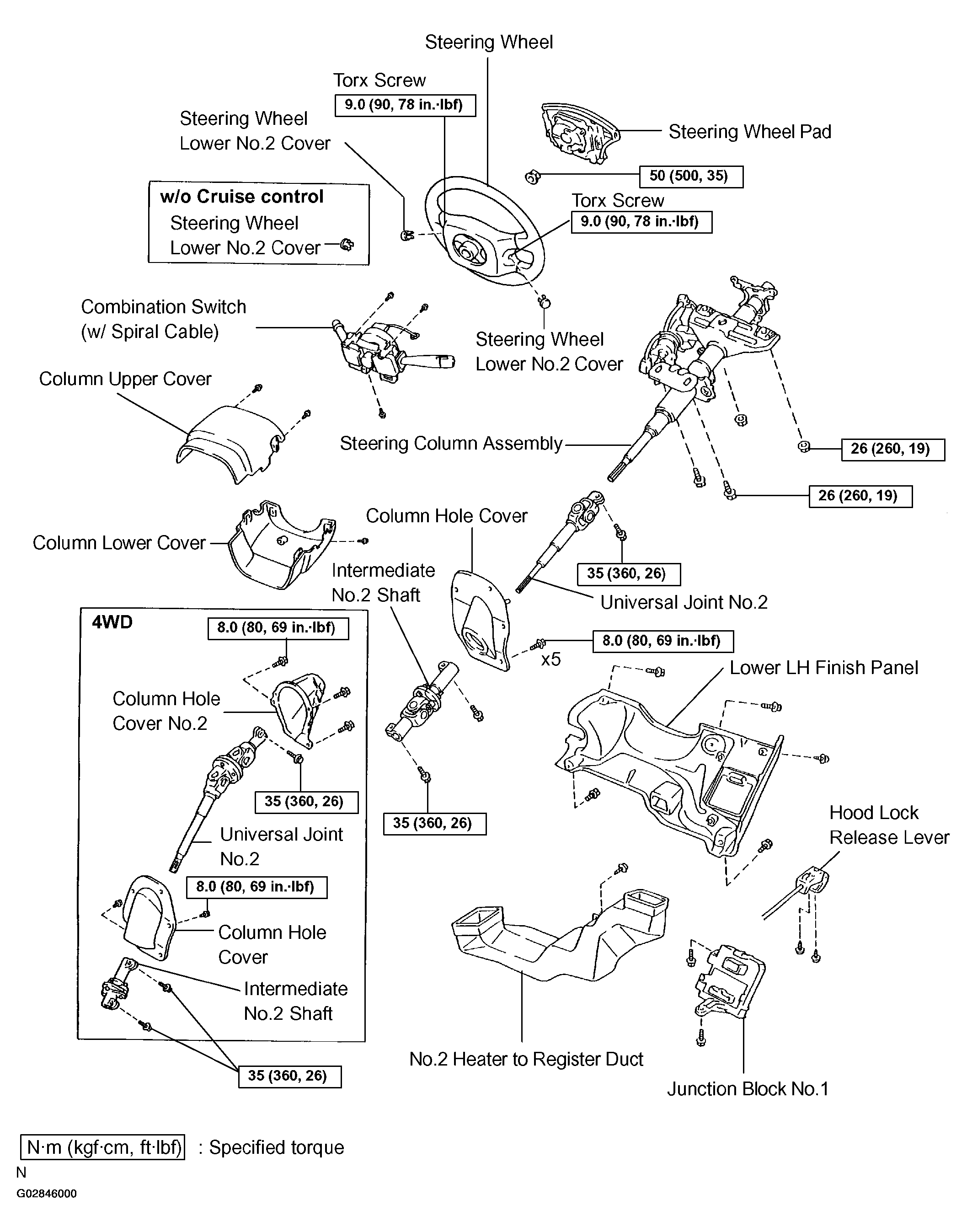

Fig 1: Identifying Non Tilt Steering Column Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

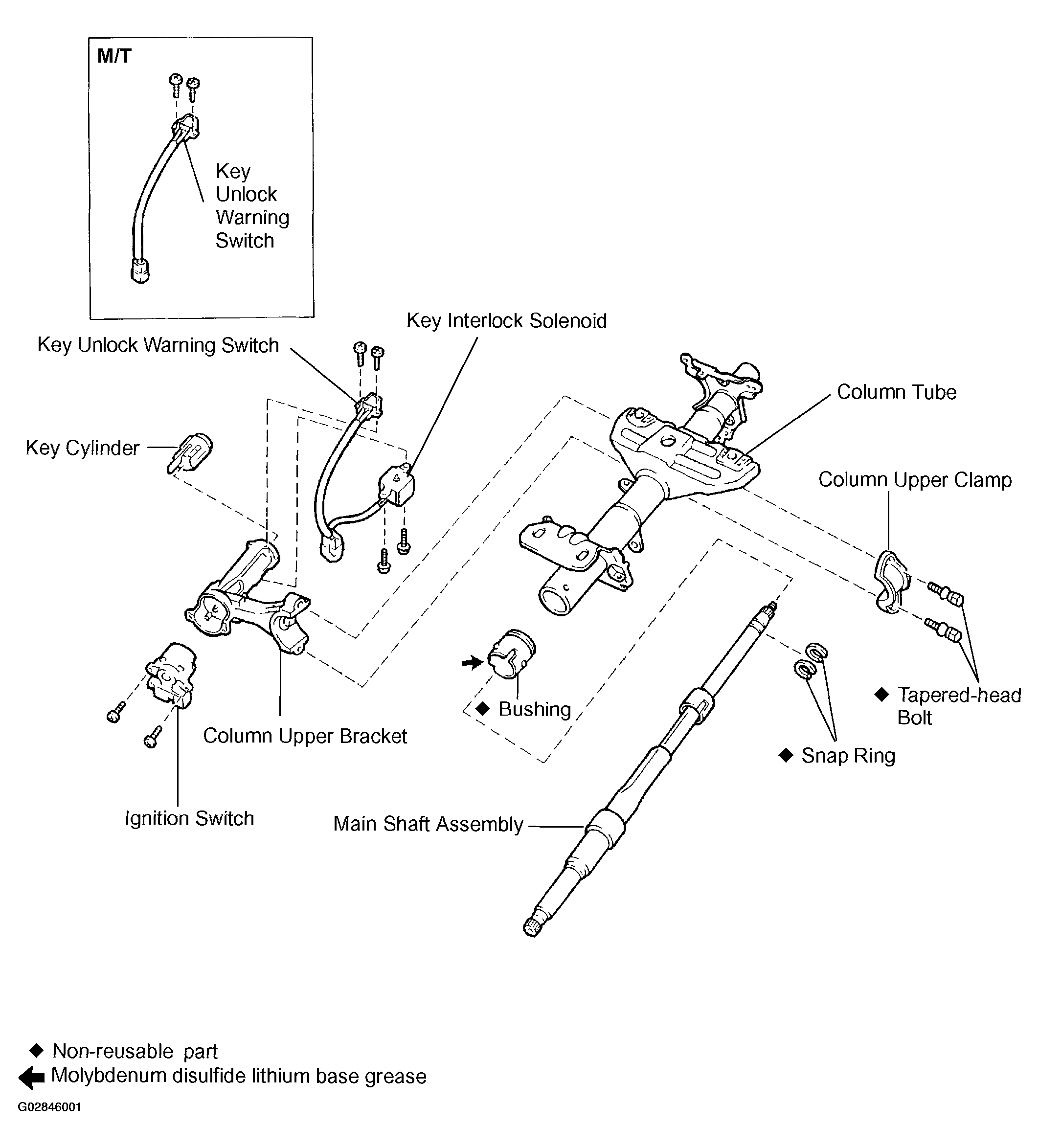

Fig 2: Identifying Non Tilt Steering Column Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
