Inspect Stop Light Switch Continuity
WARNING: This page is about a different car, the 2004 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

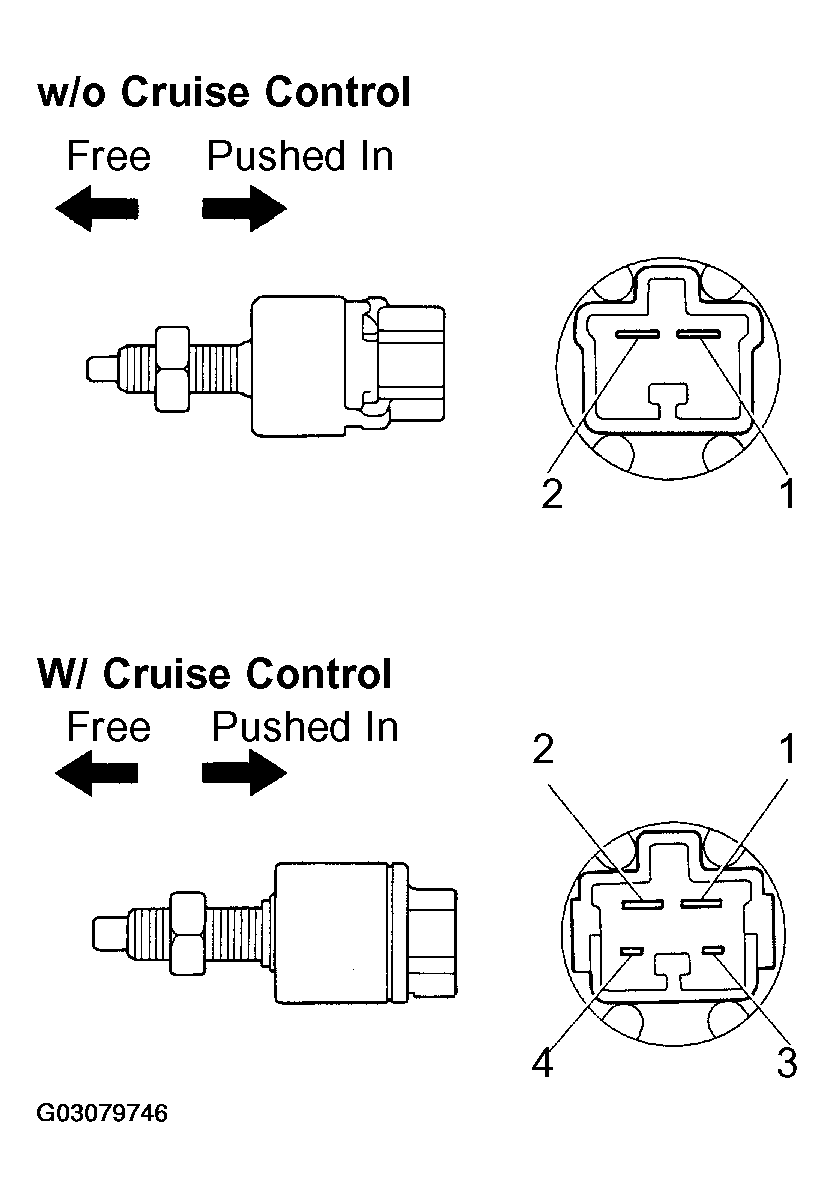

w/o Cruise control:
STOP LIGHT SWITCH TERMINALS CONTINUITY (W/O CRUISE CONTROL)
| Switch position | Tester connection | Specified condition |
|---|---|---|
| Switch pin free | 1 - 2 | Continuity |
| Switch pin pushed in | 1 - 2 | No continuity |
If continuity is not as specified, replace the switch.
w/Cruise control:
STOP LIGHT SWITCH TERMINALS CONTINUITY (W/CRUISE CONTROL)
| Switch position | Tester connection | Specified condition |
|---|---|---|
| Switch pin free | 1 - 2 | Continuity |
| Switch pin pushed in | 1 - 2 | No continuity |
| Switch pin free | 3 - 4 | No continuity |
| Switch pin pushed in | 3 - 4 | Continuity |
If continuity is not as specified, replace the switch
