Instrument Panel: Components

NOTE:

Screw shapes and sizes are indicated in Fig 1. The codes (A - I) correspond to those indicated in Fig 2-Fig 4.

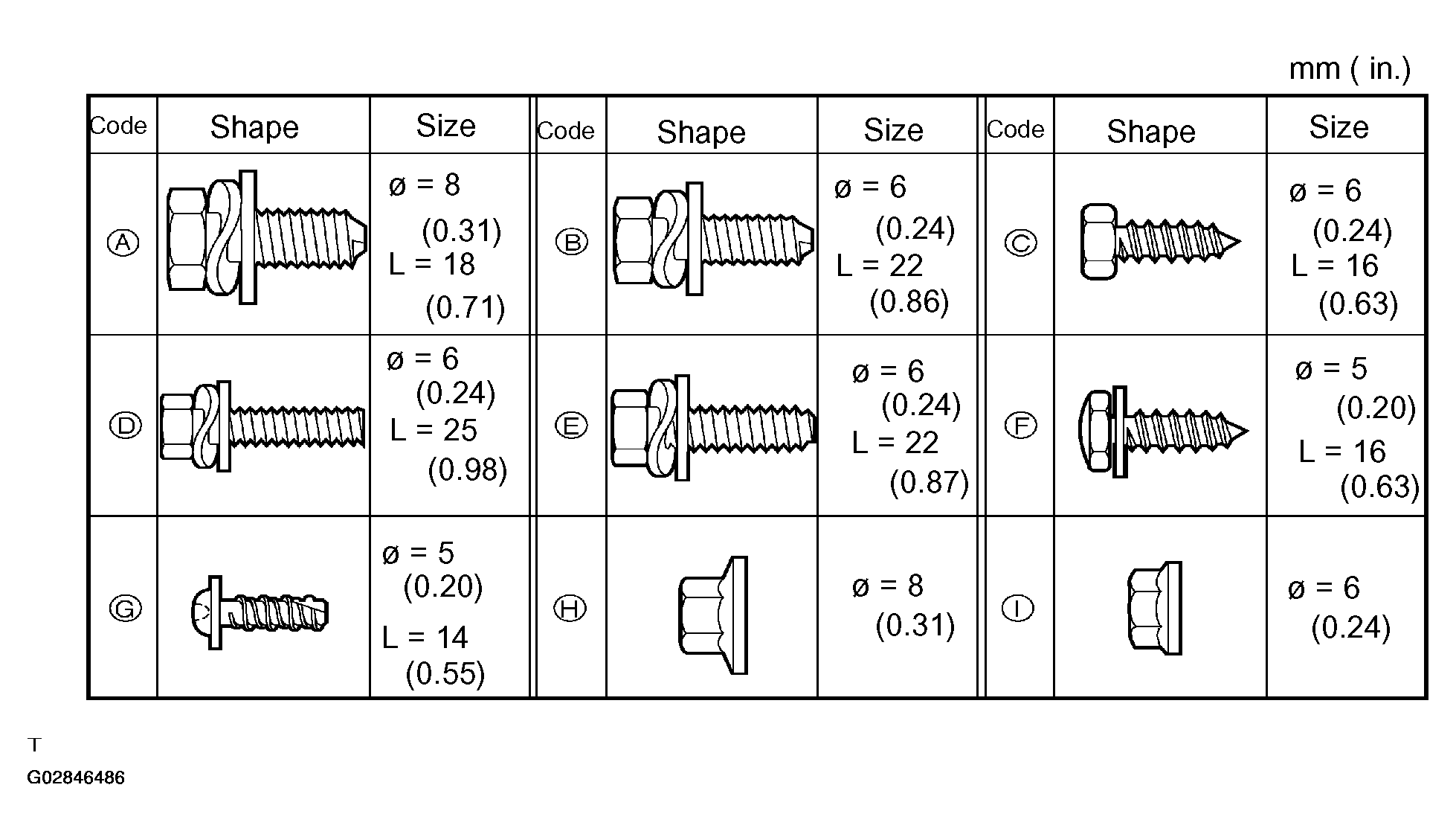

Fig 1: Screw Shape And Size Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

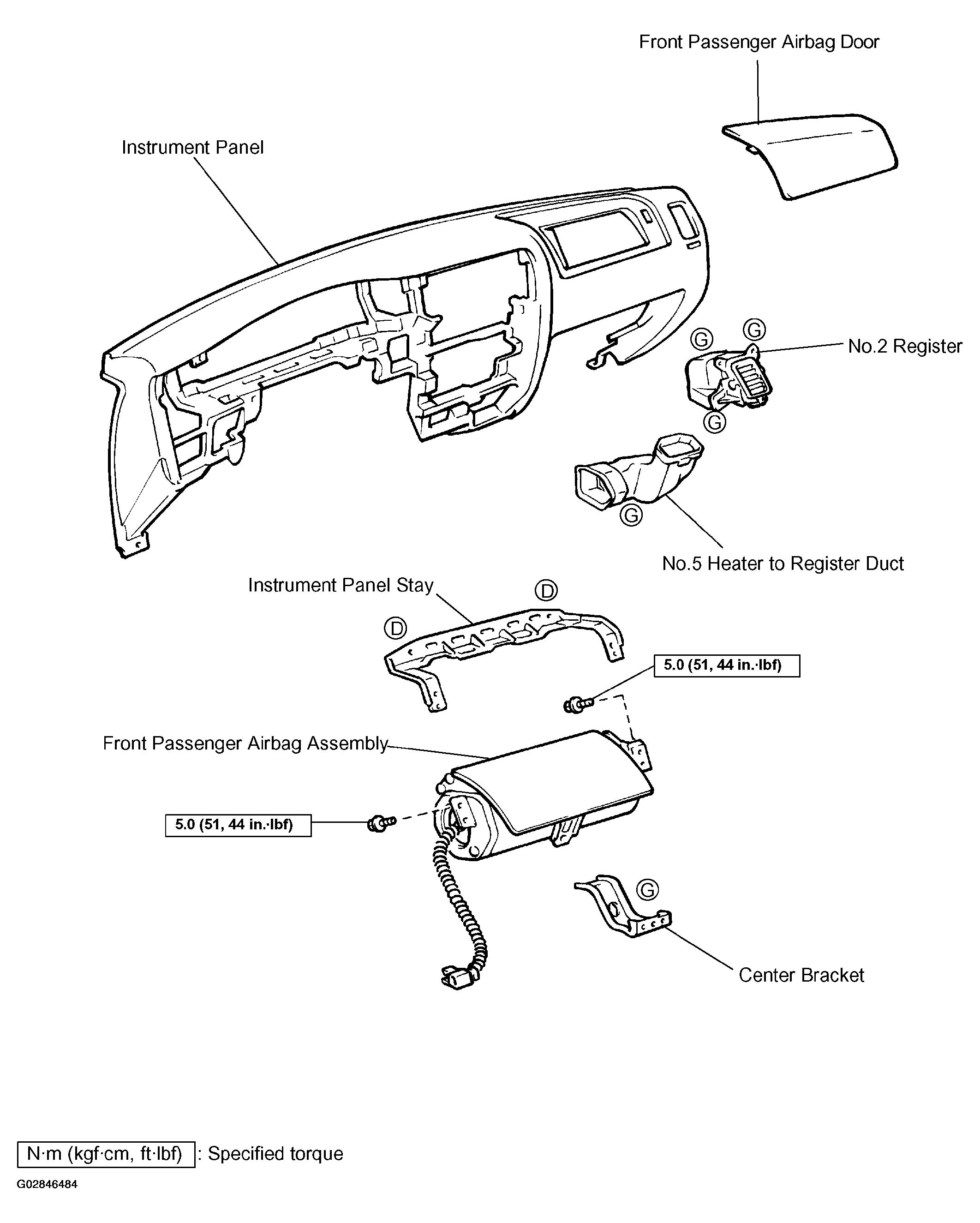

Fig 2: Locating Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

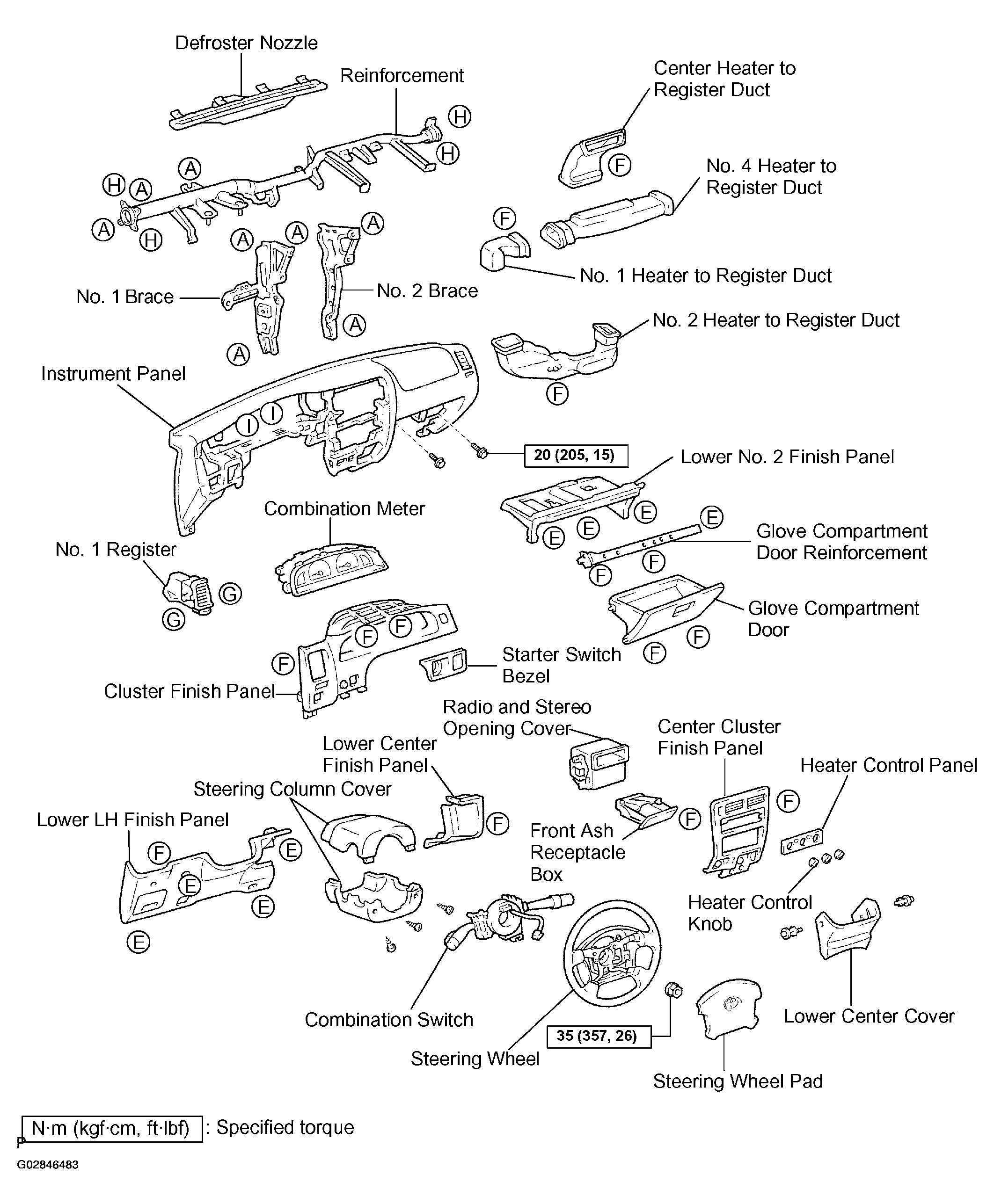

Fig 3: Locating Components (2 Of 3)

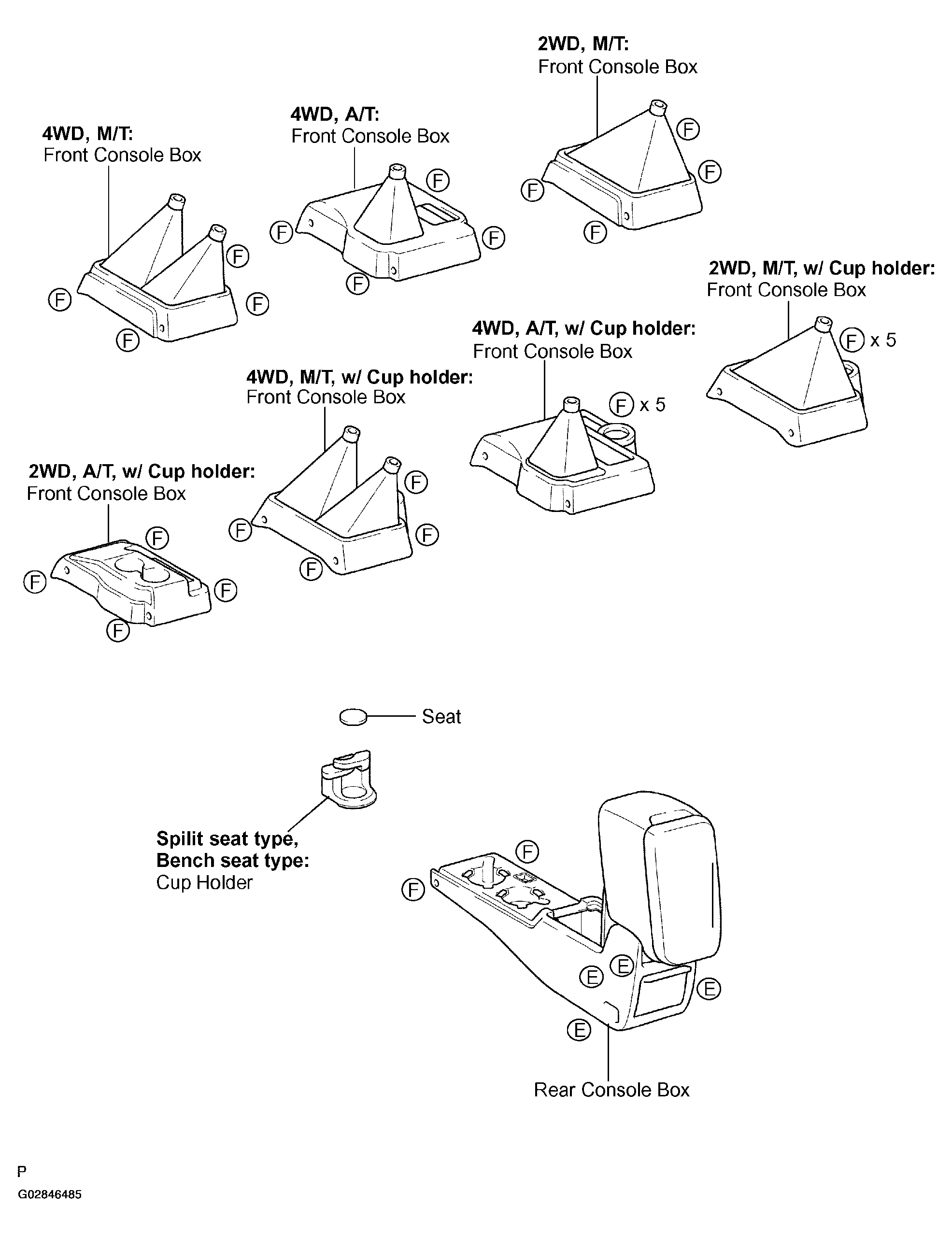

Fig 4: Locating Components (3 Of 3)
