How To Proceed With Troubleshooting

Troubleshooting in accordance with the following procedures.

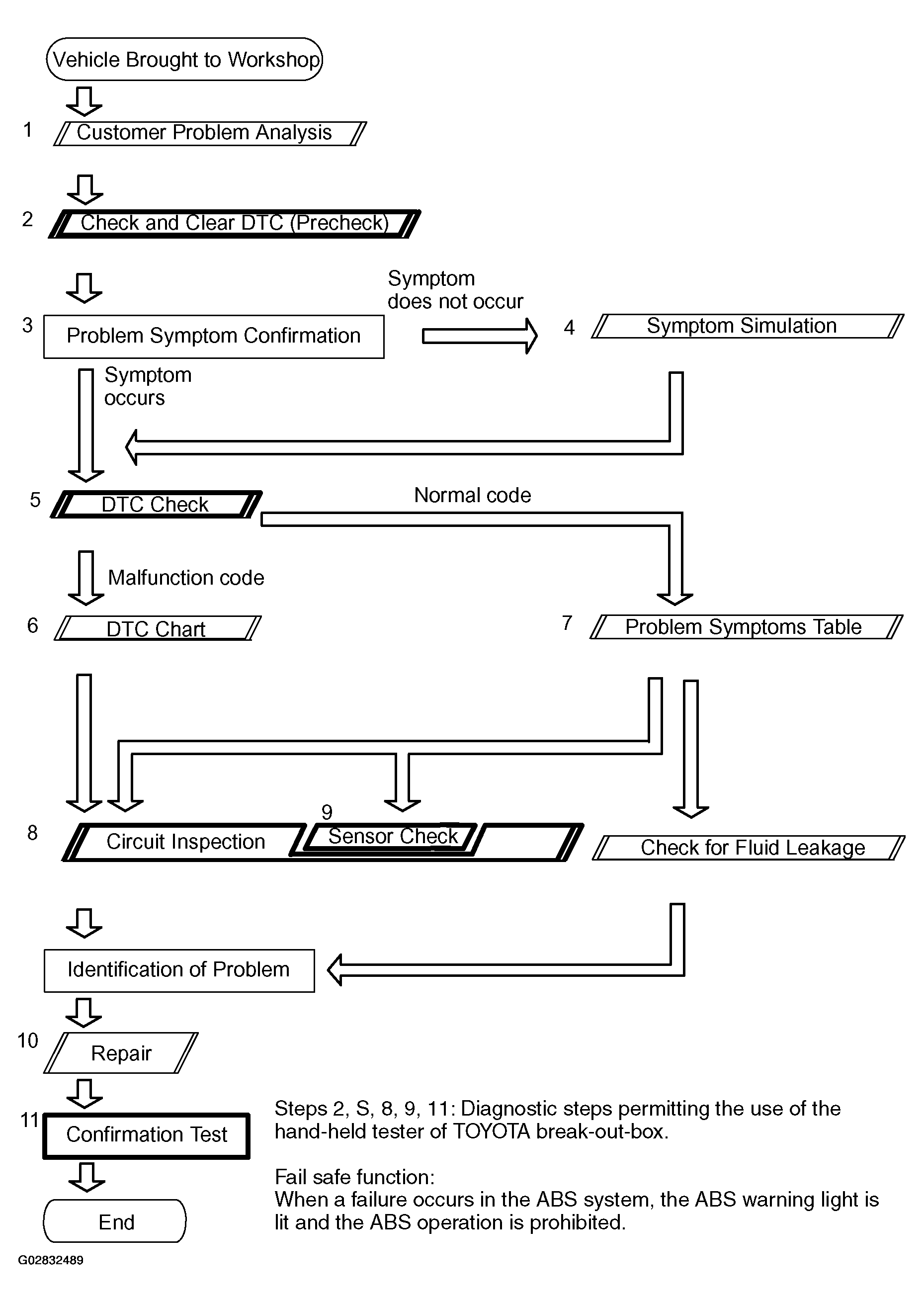

Fig 1: Troubleshooting Flow Chart
G02832489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
