Home >> Toyota >> 2003 >> Tacoma Base, 4D Pickup >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Actuator >> Components

Abs Actuator: Components

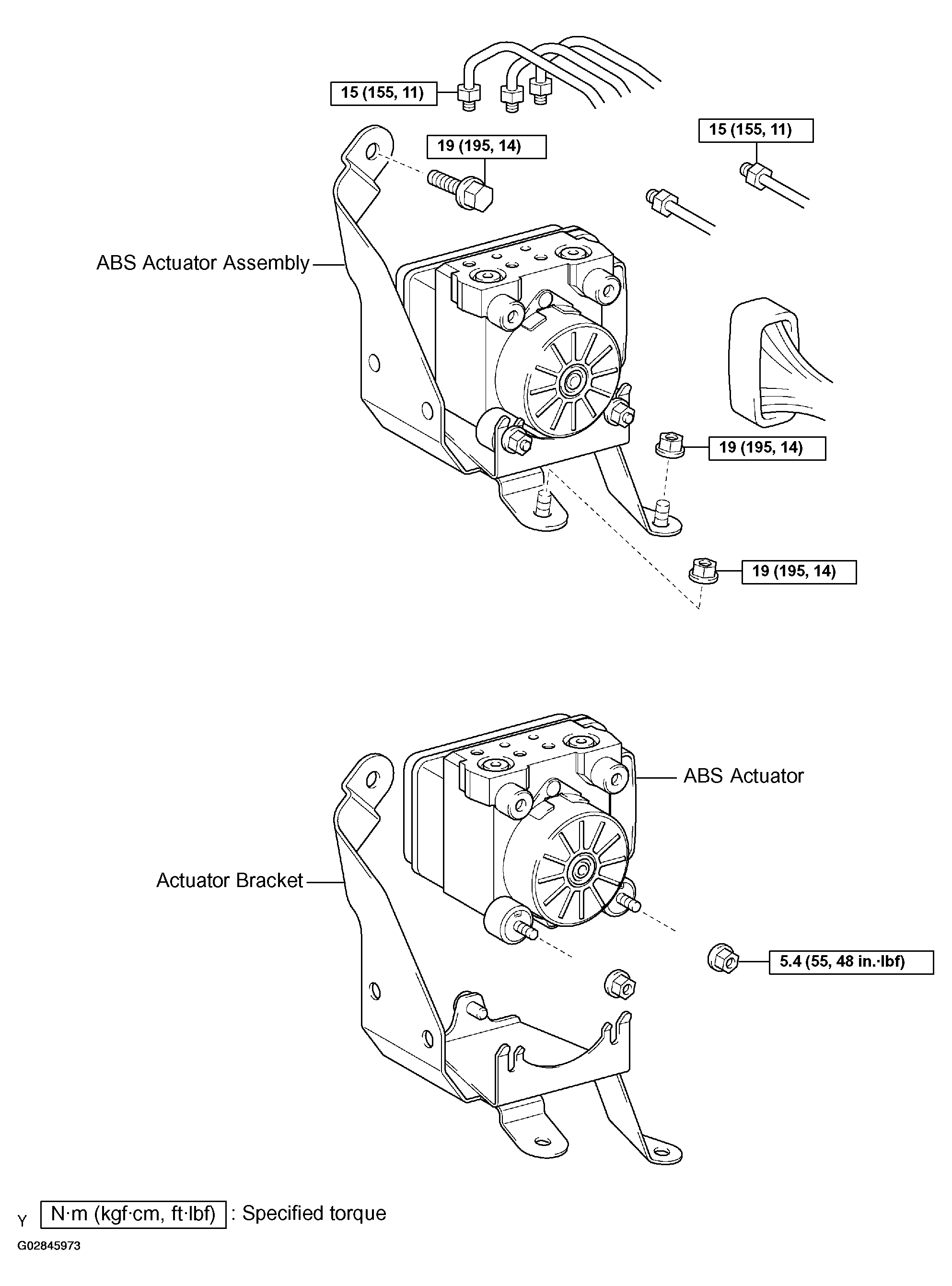

Fig 1: Locating Components Of ABS Actuator

G02845973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
