Body Electrical Systems - Troubleshooting
>>
Problem Symptoms Table
>>
Wiper And Washer System
Wiper And Washer System

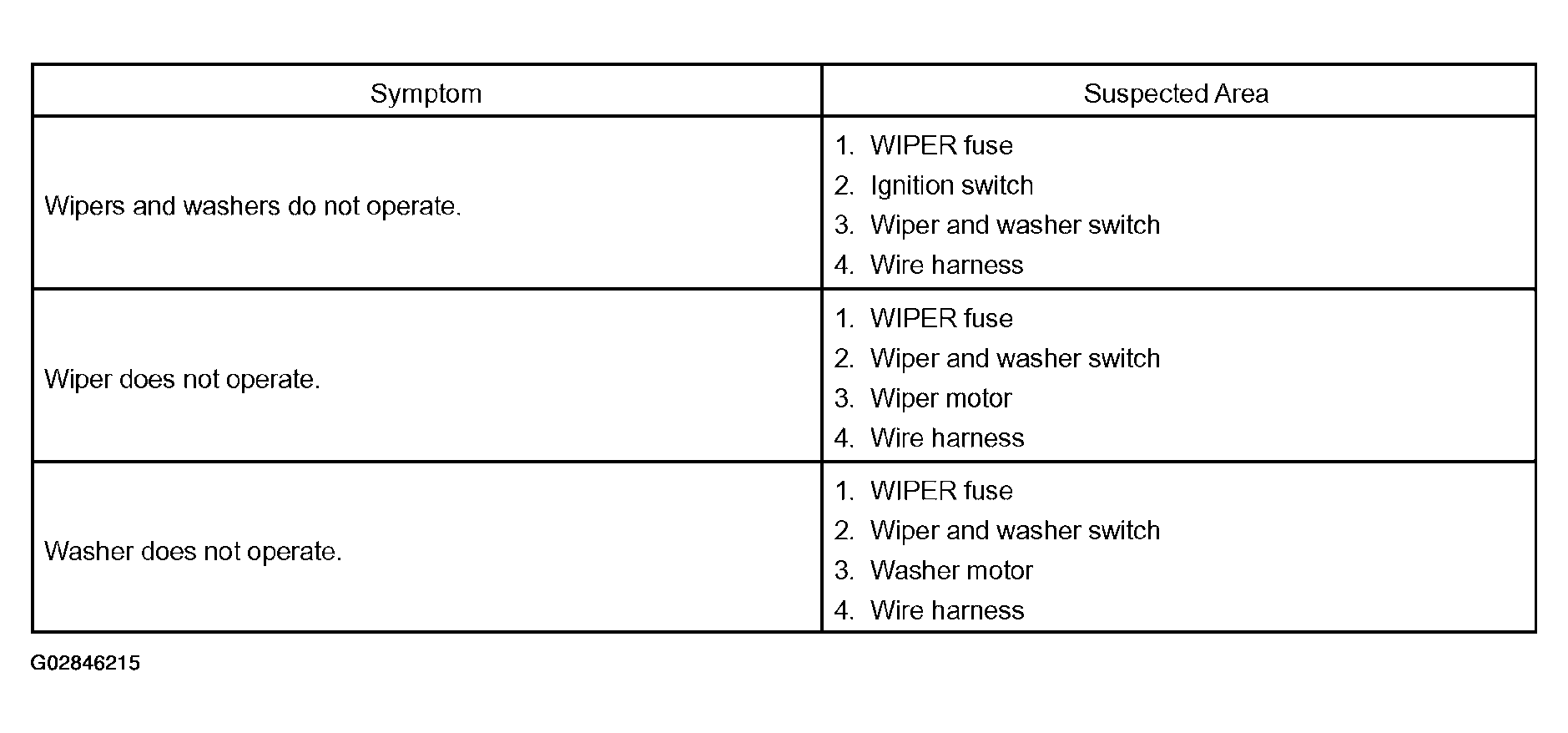

Fig 1: Wiper And Washer System Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
