Turn Signal And Hazard Warning System

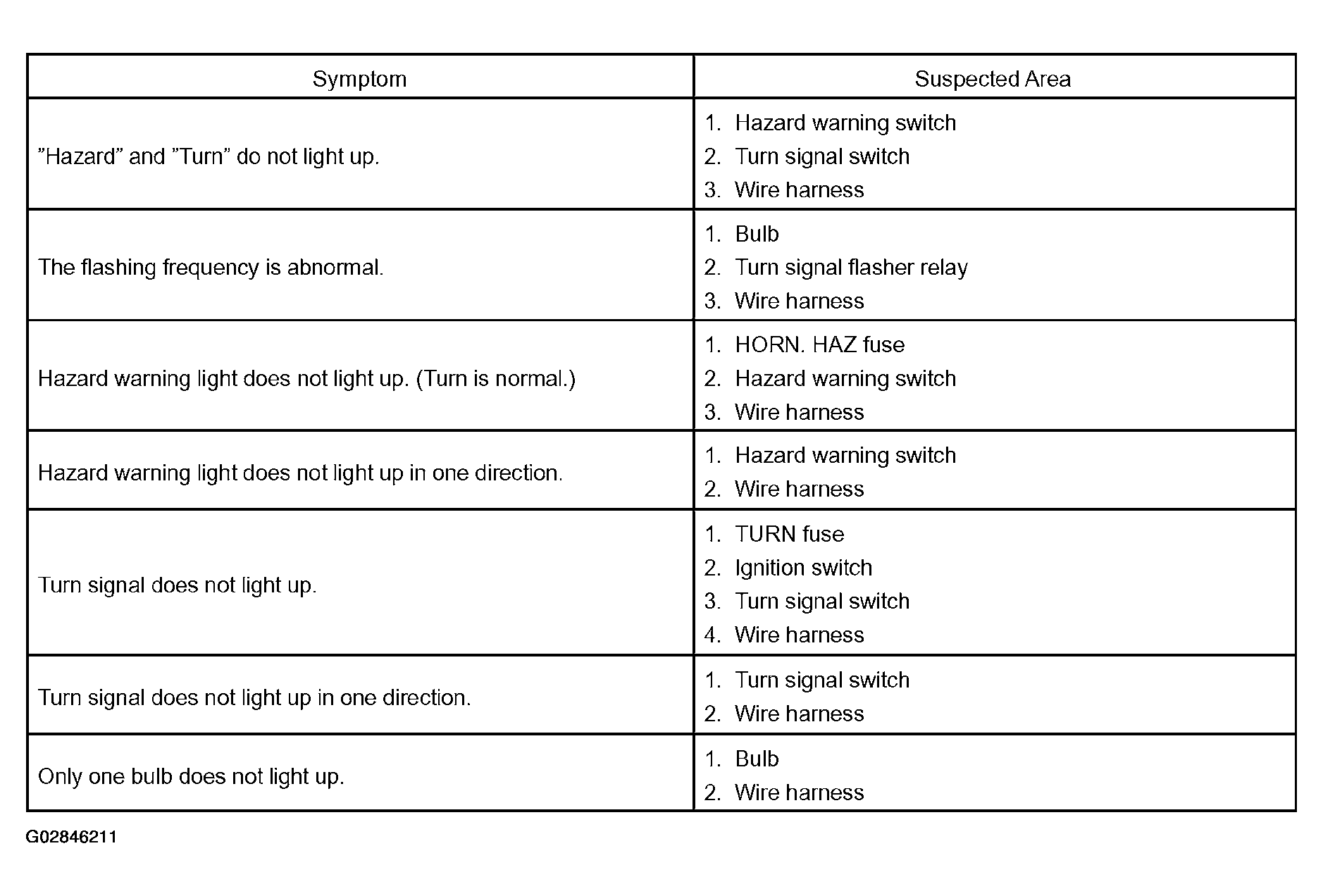

Fig 1: Turn Signal And Hazard Warning System Symptoms Chart

G02846211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
