Warning Lights

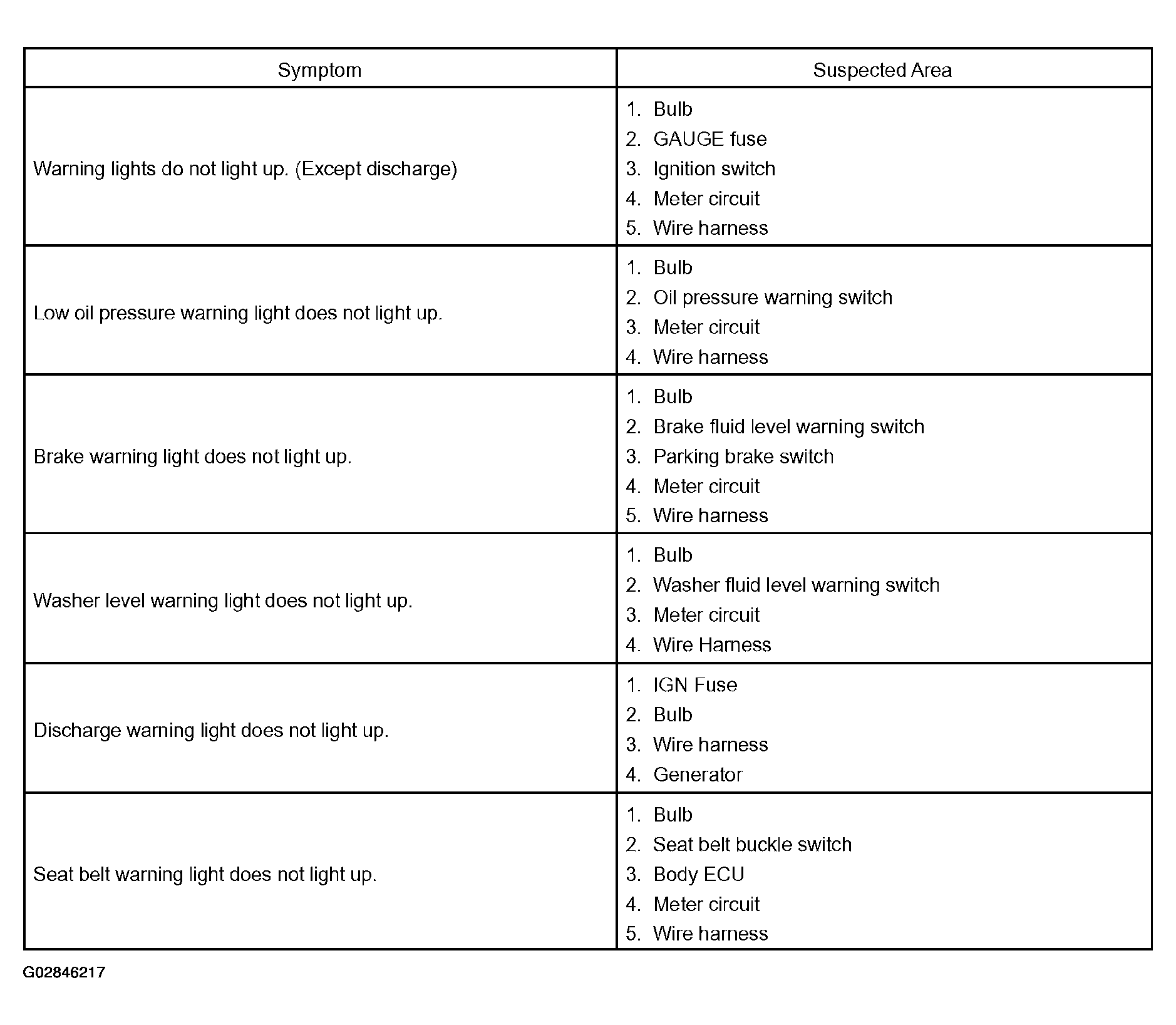

Fig 1: Combination Meter Symptoms Chart (Warning Lights)

G02846217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
