Body Electrical Systems - Troubleshooting
>>
Problem Symptoms Table
>>
Combination Meter
>>
Indicator Lights
Indicator Lights

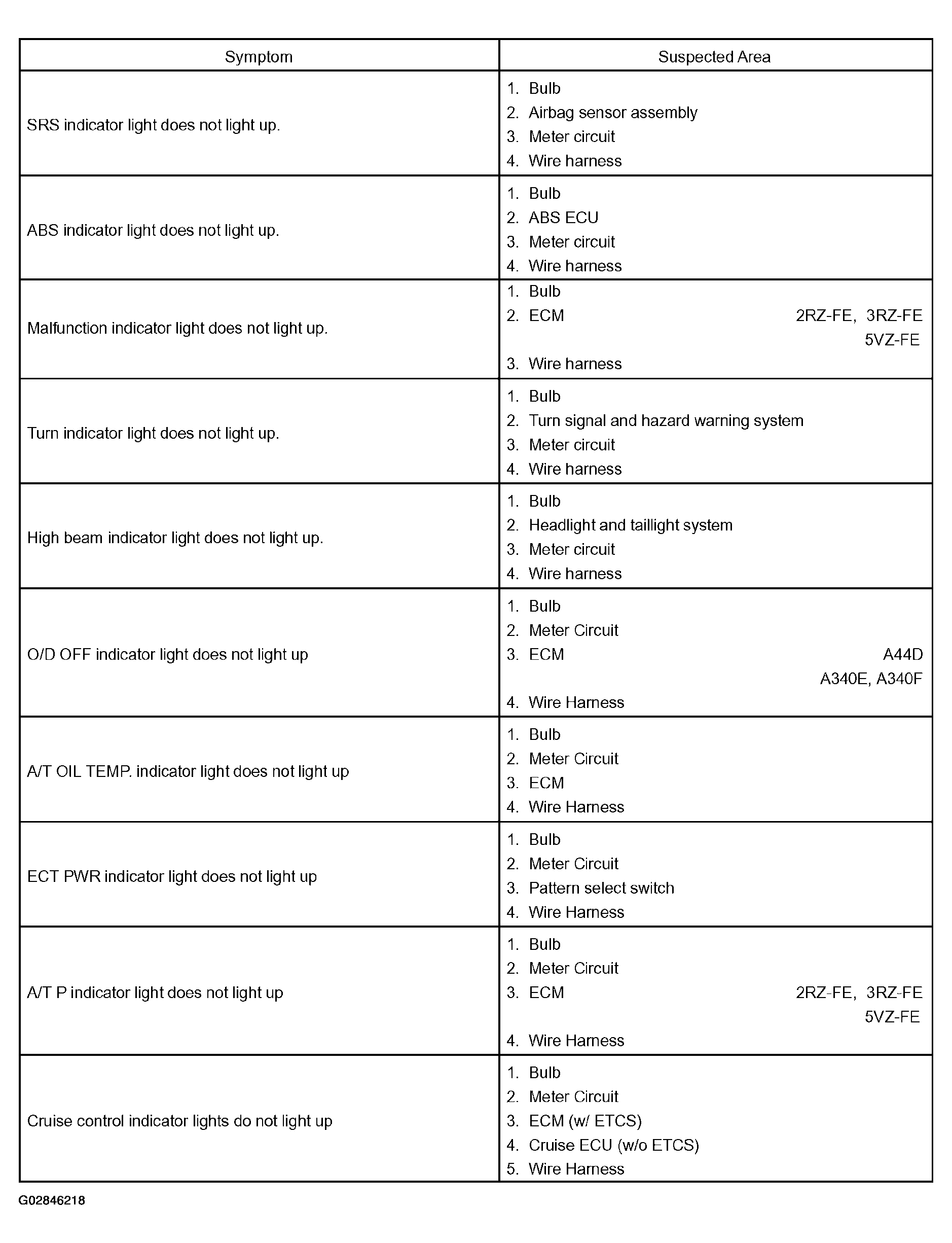

Fig 1: Combination Meter Symptoms Chart (Indicator Lights)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
