Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in Fig 1 and Fig 2.

NOTE:

If the clip is damaged during the operation, always replace it with a new clip.

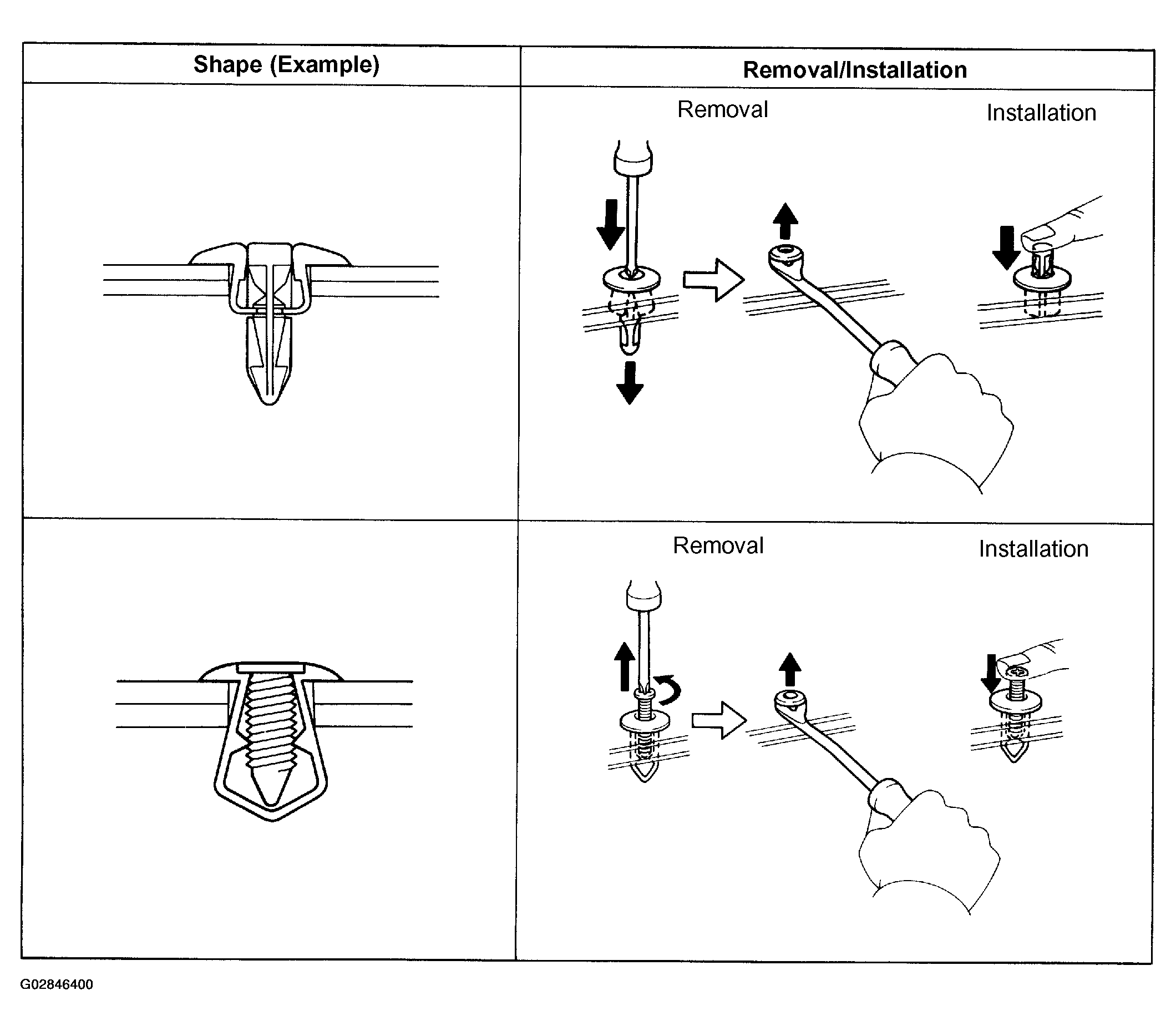

Fig 1: Clip Removing And Installing Procedure (1 Of 2)

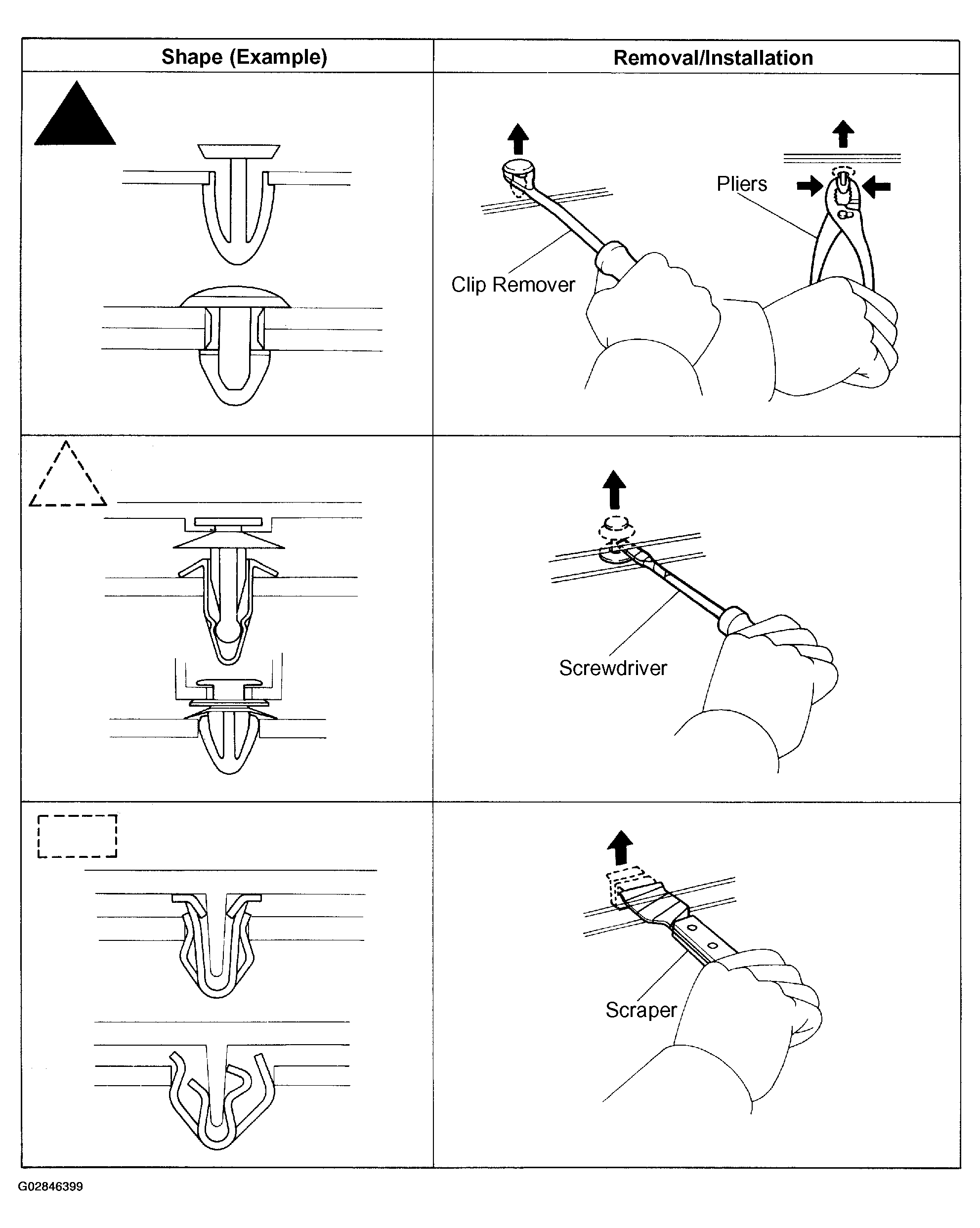

Fig 2: Clip Removing And Installing Procedure (2 Of 2)
