Combination Meter: Location

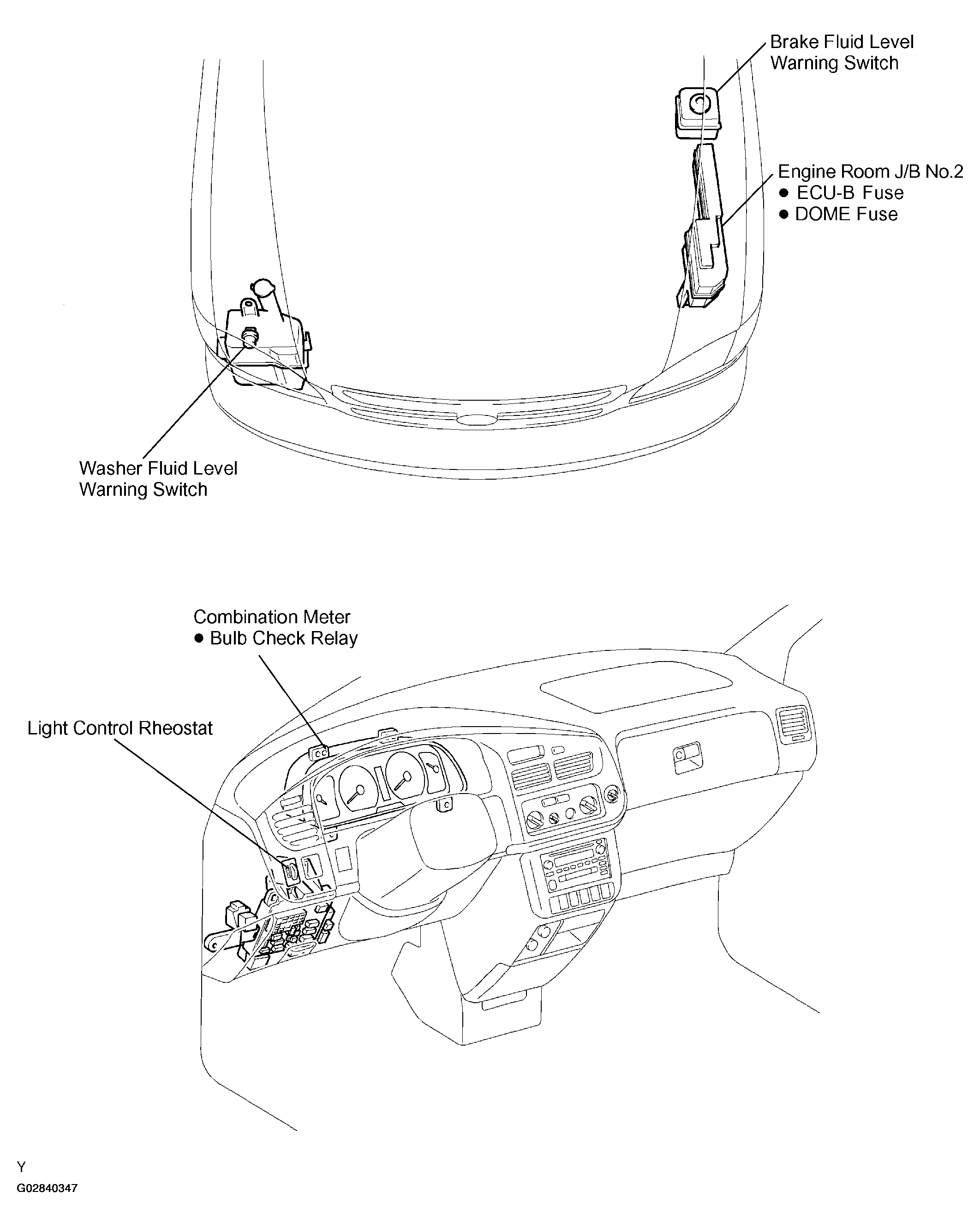

Fig 1: Identifying Combination Meter Component (1 Of 2)
G02840347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

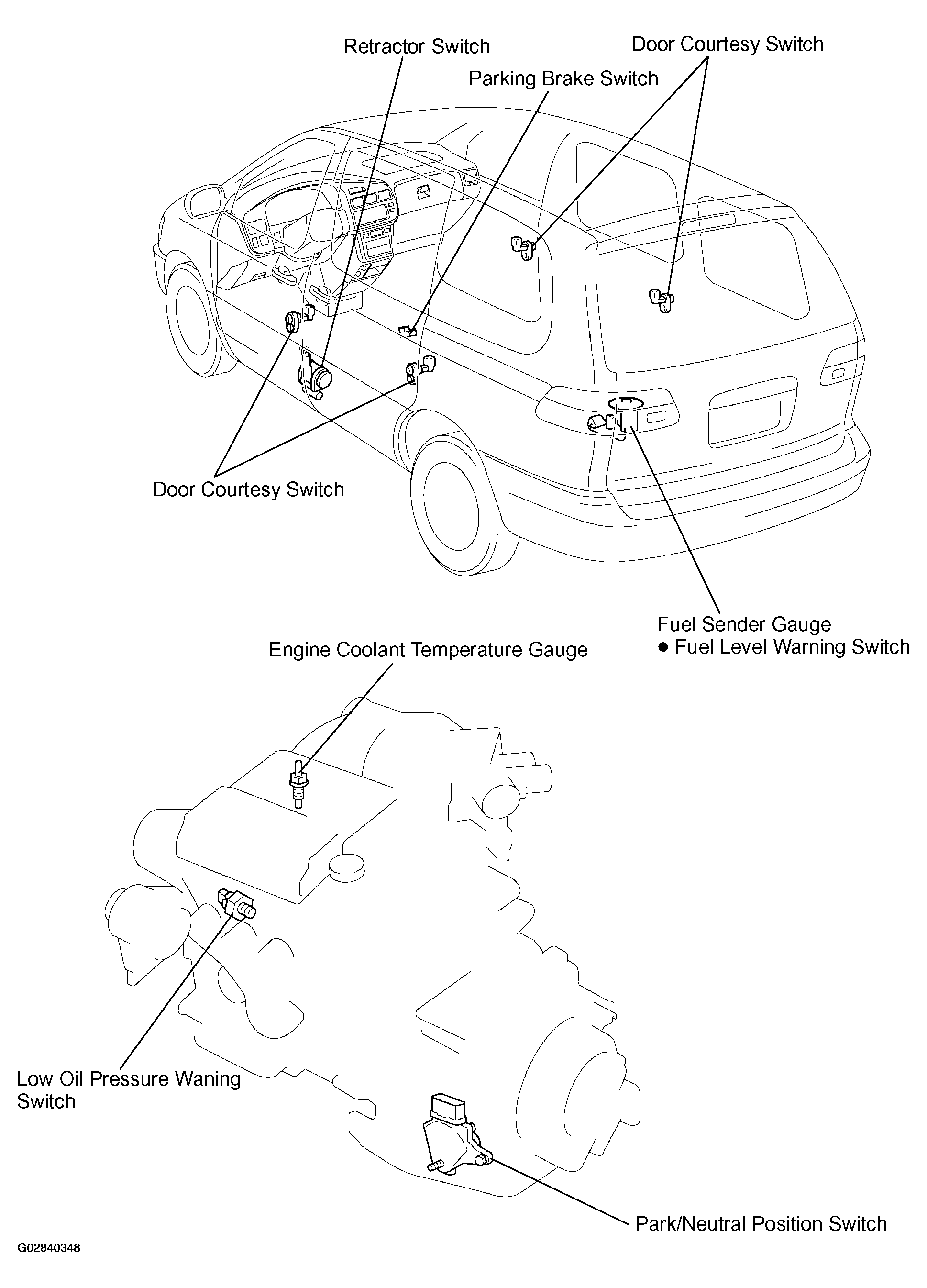

Fig 2: Identifying Combination Meter Component (2 Of 2)
G02840348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
