Anti-Lock Brake System - Diagnostics: Pre-Check

  1. DIAGNOSIS SYSTEM
    1. Check the warning lights.
      1. Release the parking brake pedal.
      2. When the ignition switch is turned ON, check that the ABS warning light and BRAKE warning light go on for approx. 3 seconds.
      NOTE:
      • When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
      • If the warning light check result is not normal, proceed to troubleshooting for the ABS warning light circuit and BRAKE warning light circuit.
      DIAGNOSIS SYSTEM REFERENCE

      Trouble Area Go To
      ABS Warning Light Circuit ABS WARNING LIGHT CIRCUIT
      BRAKE Warning Light Circuit BRAKE WARNING LIGHT CIRCUIT

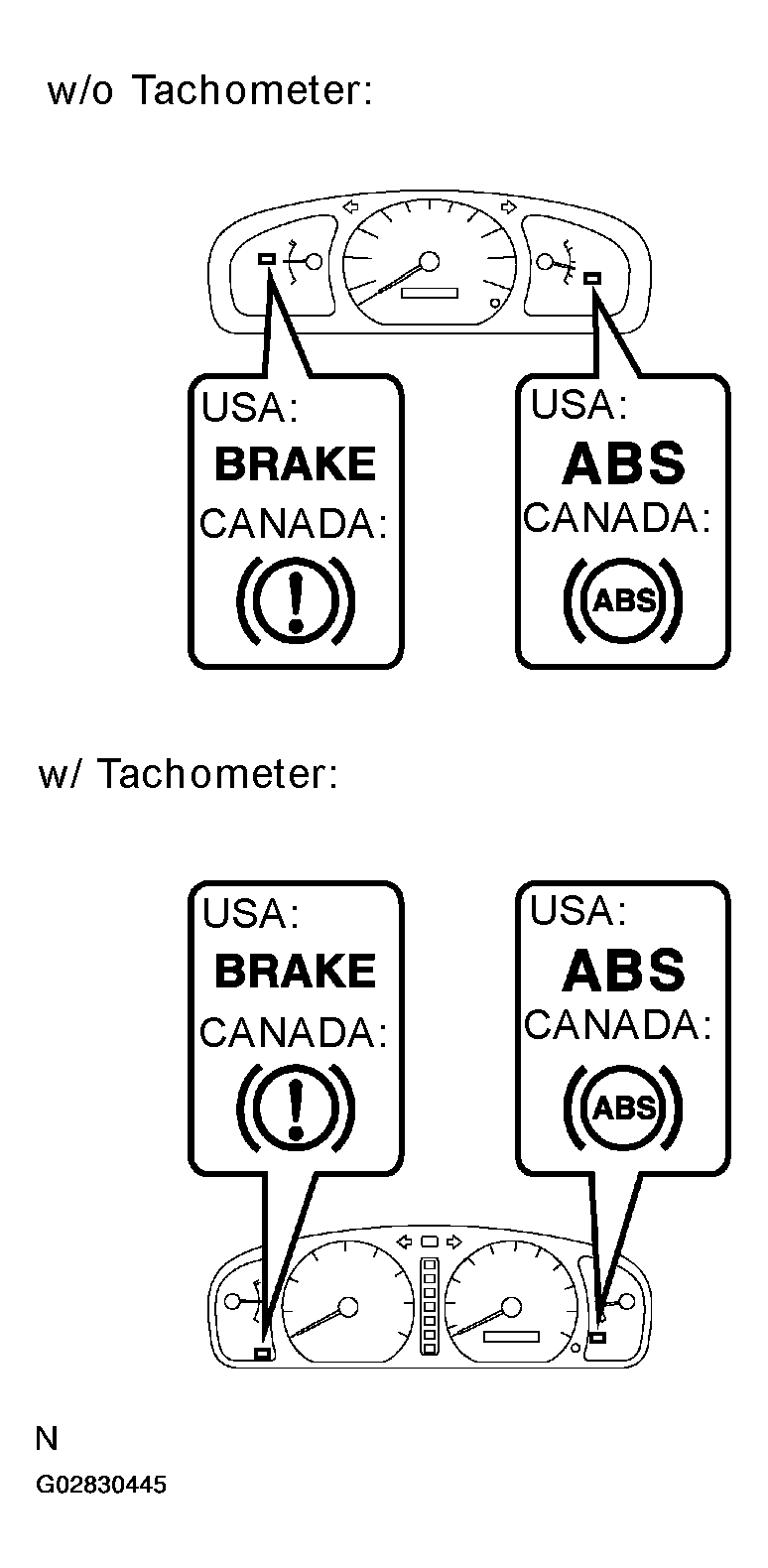

      Fig 1: View Of Speedometer With & Without Tachometer (USA & Canada Model)
      G02830445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. In case of not using hand-held tester:

      Check the DTC of skid control ECU.

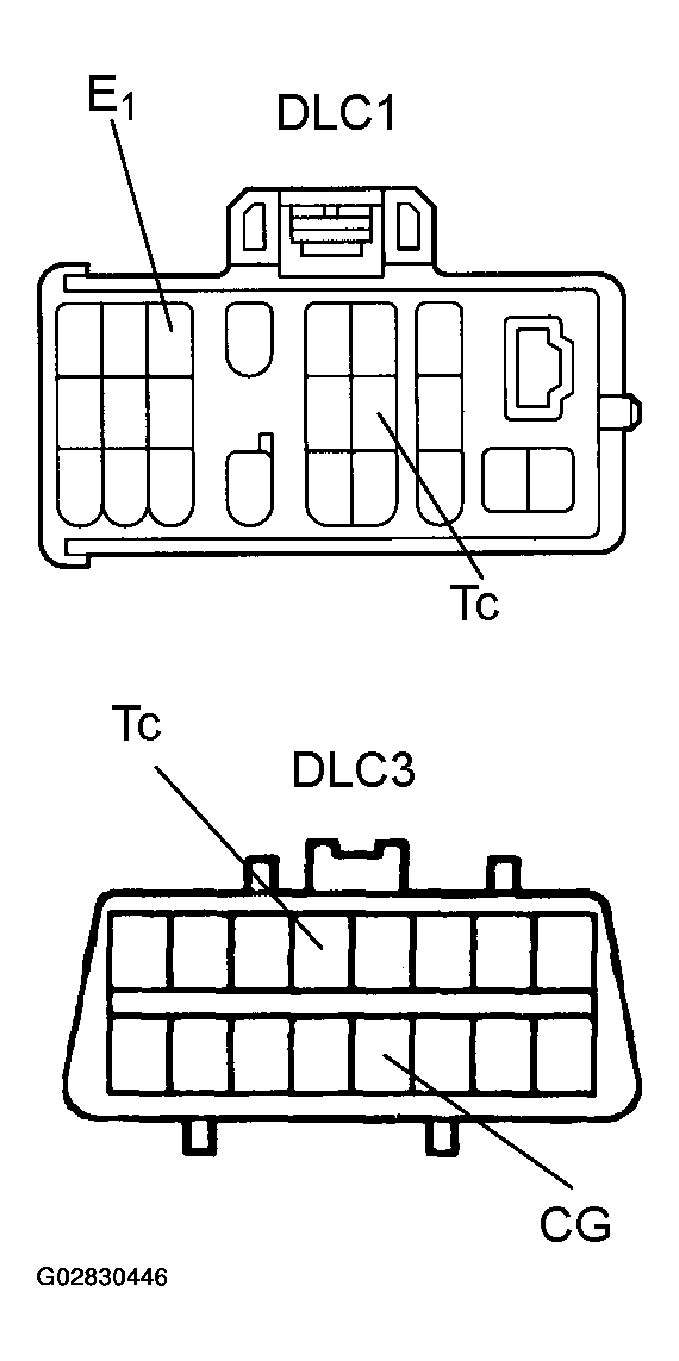

      Fig 2: Identifying DLC1 & DLC3 Terminals
      G02830446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3.

        SST 09843-18020 or 09843-18040

      2. Turn the ignition switch ON.
      3. Read the DTC from the ABS warning light, on the combination meter.
        NOTE:
        • If no code appears, inspect the diagnostic circuit, ABS warning light circuit or BRAKE warning light circuit.
          DIAGNOSIS SYSTEM REFERENCE

          Trouble Area Go To
          Tc terminal circuit Tc TERMINAL CIRCUIT
          ABS warning light circuit ABS WARNING LIGHT CIRCUIT
          BRAKE warning light circuit BRAKE WARNING LIGHT CIRCUIT
        • When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
        • As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

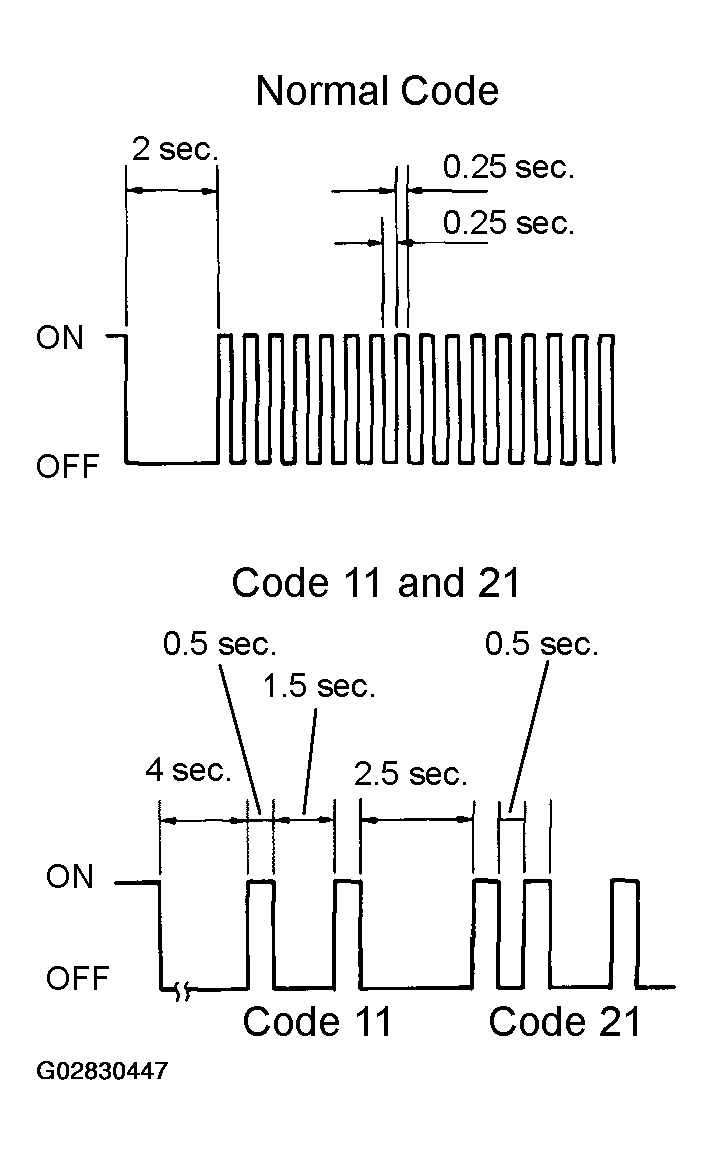

          Fig 3: Malfunctions Blinking Pattern (Normal Code)
          G02830447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Codes are explained in the code table on DIAGNOSTIC TROUBLE CODE CHART .
      5. After completing the check, disconnect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3, and turn off the display.

      If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.

    3. In case of using hand-held tester:

      Check the DTC.

      1. Hook up the hand-held tester to the DLC3.

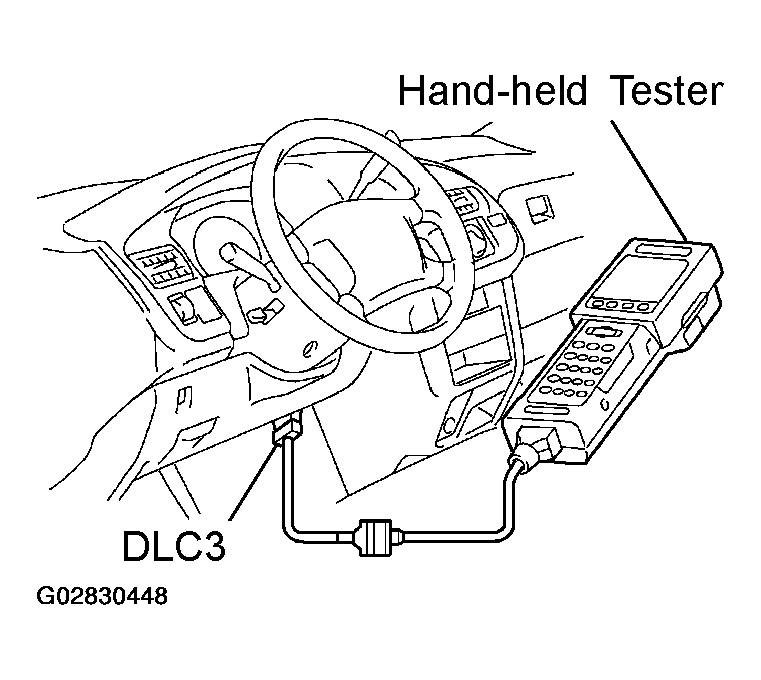

        Fig 4: Connecting DLC3 To Hand Held Tester
        G02830448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the ignition switch ON.
      3. Read the DTC by following the prompts on the tester screen.

      NOTE: Please refer to the hand-held tester operator's manual for further details.
    4. In case of not using hand-held tester: Clear the DTC of skid control ECU.
      1. Using SST, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3.

        SST 09843-18020 or 09843-18040

      2. Turn the ignition switch ON.
      3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
        Fig 5: Adjusting Brake Pedal Movement
        G02830449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Check that the warning light shows the normal code.
      5. Remove the SST from the terminals of the DLC1 or DLC3.

        SST 09843-18020 or 09843-18040

      NOTE: Cancellation cannot be done by removing the battery cable or ECU-IG fuse.
    5. In case of using hand-held tester

      Clear the DTC.

      1. Hook up the hand-held tester to the DLC3.

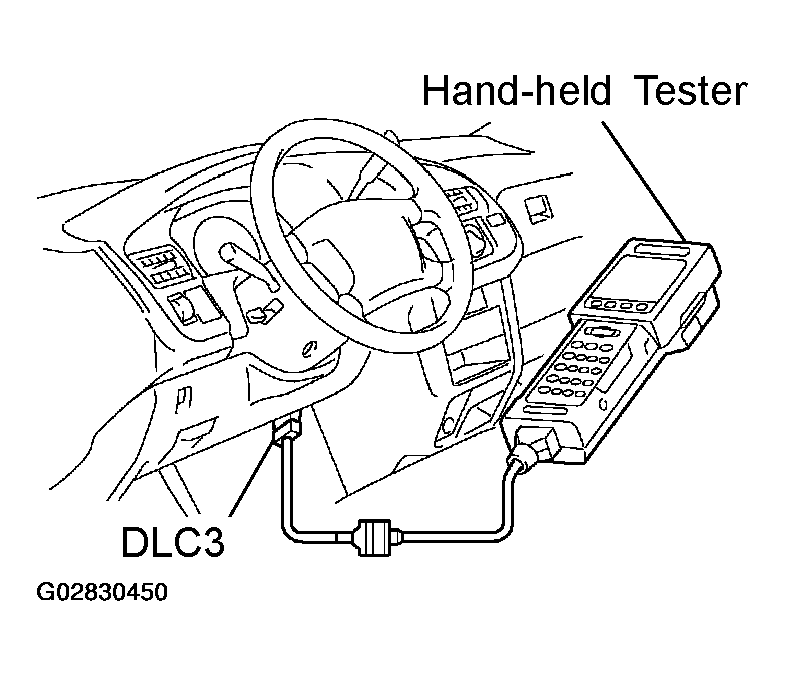

        Fig 6: Connecting DLC3 To Hand Held Tester
        G02830450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the ignition switch ON.
      3. Operate the hand-held tester to erase the codes.

      NOTE: Please refer to the hand-held tester operator's manual for further details.
  2. SPEED SENSOR SIGNAL CHECK (TEST MODE)
    1. In case of not using hand-held tester:

      Check the sensor signal.

      1. Turn the ignition switch OFF.
      2. Using SST, connect terminals Ts and E1 of the DLC1.

        SST 09843-18020

        Fig 7: Identifying DLC1 Connector Terminals
        G02830451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Start the engine.
      4. Check that the ABS warning light blinks.
        Fig 8: ABS Warning Light Blinking Pattern
        G02830452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: If the ABS warning light does not blink, inspect the (See ABS WARNING LIGHT CIRCUIT ).
      5. Drive vehicle straight forward.

        Drive vehicle at a speed faster than 45 km/h (28 mph) for several seconds and check that the ABS warning light comes off.

        NOTE: The sensor check may not be completed if the front wheels are spun or the steering wheel is steered during this check.
      6. Stop the vehicle.
      7. Using SST, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3.

        SST 09843-18020 or 09843-18040

      8. Turn the ignition switch ON.
      9. Read the number of blinks of the ABS warning light.
        NOTE:
        • See the list of DTC shown on the next page.
        • If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
        • If 2 or more malfunction codes are identified at the same time, the lowest numbered code will be displayed 1st.

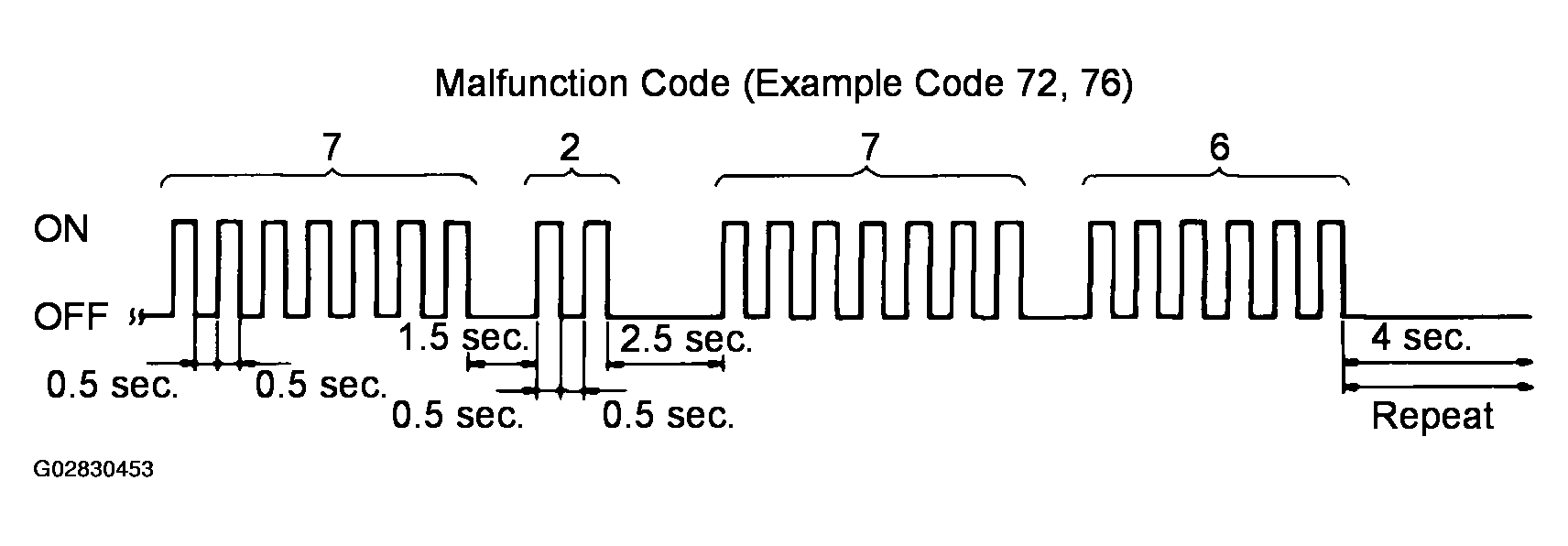

        Fig 9: Malfunctions Code Blinking Pattern
        G02830453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. After doing the check, disconnect the SST from terminals of the DLC1 or DLC3, and turn the ignition switch OFF.

        SST 09843-18020 or 09843-18040

    2. In case of using hand-held tester:

      Check the sensor signal.

      1. Hook up the hand-held tester to the DLC3.

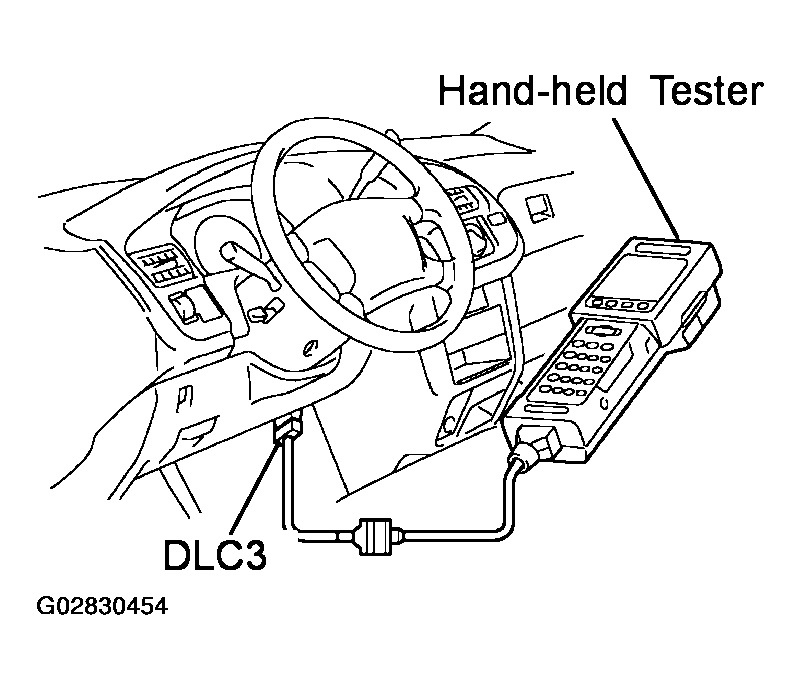

        Fig 10: Connecting DLC3 To Hand Held Tester
        G02830454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Do step (3) - (6) on the previous page.
      3. Read the DTC by following the prompts on the tester screen.

      NOTE: Please refer to the hand-held tester operator's manual for further details.

    DTC of speed sensor check function:

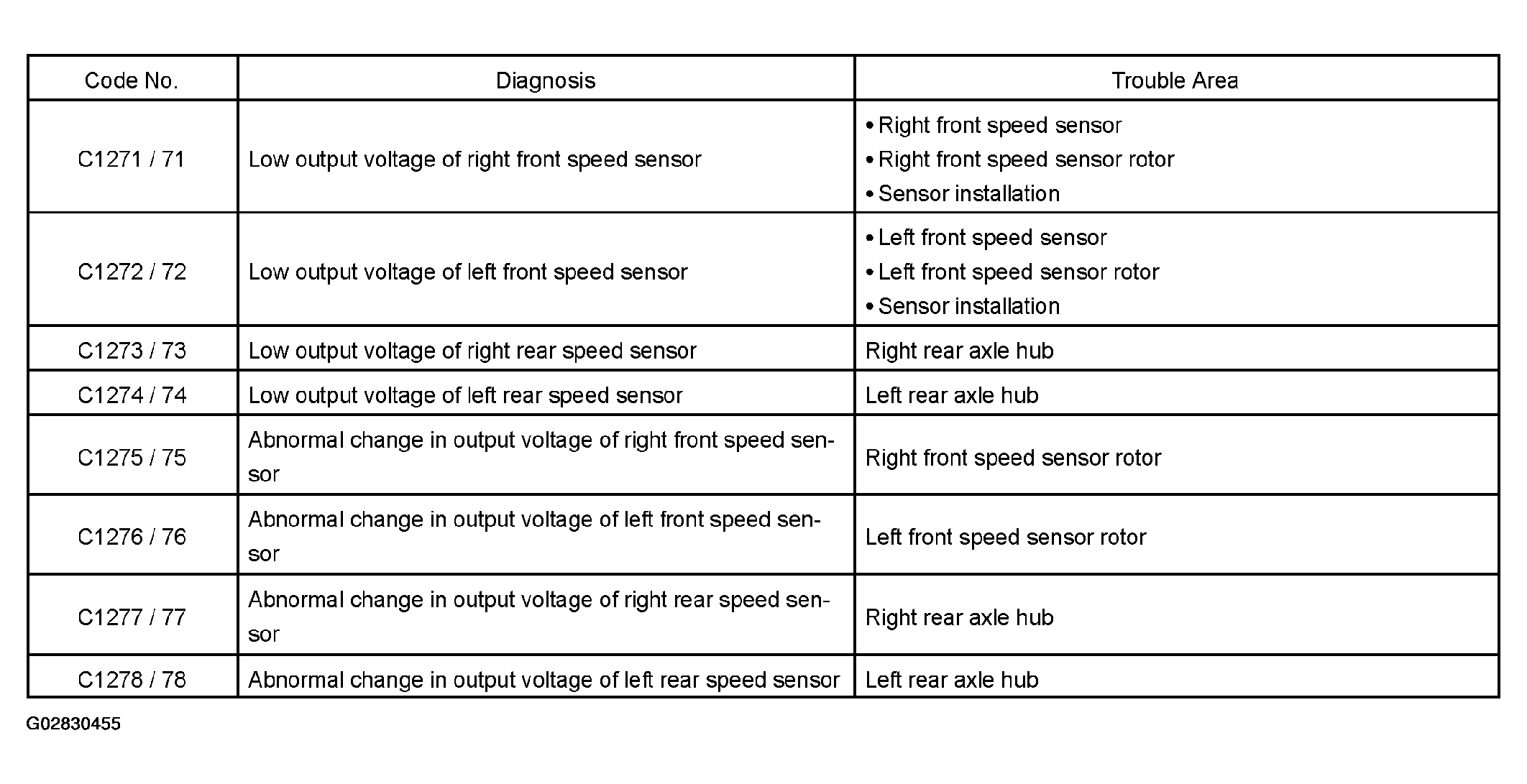

    Fig 11: Speed Sensor DTC Functioning Chart
    G02830455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
