Power Rear Quarter Window System: Location

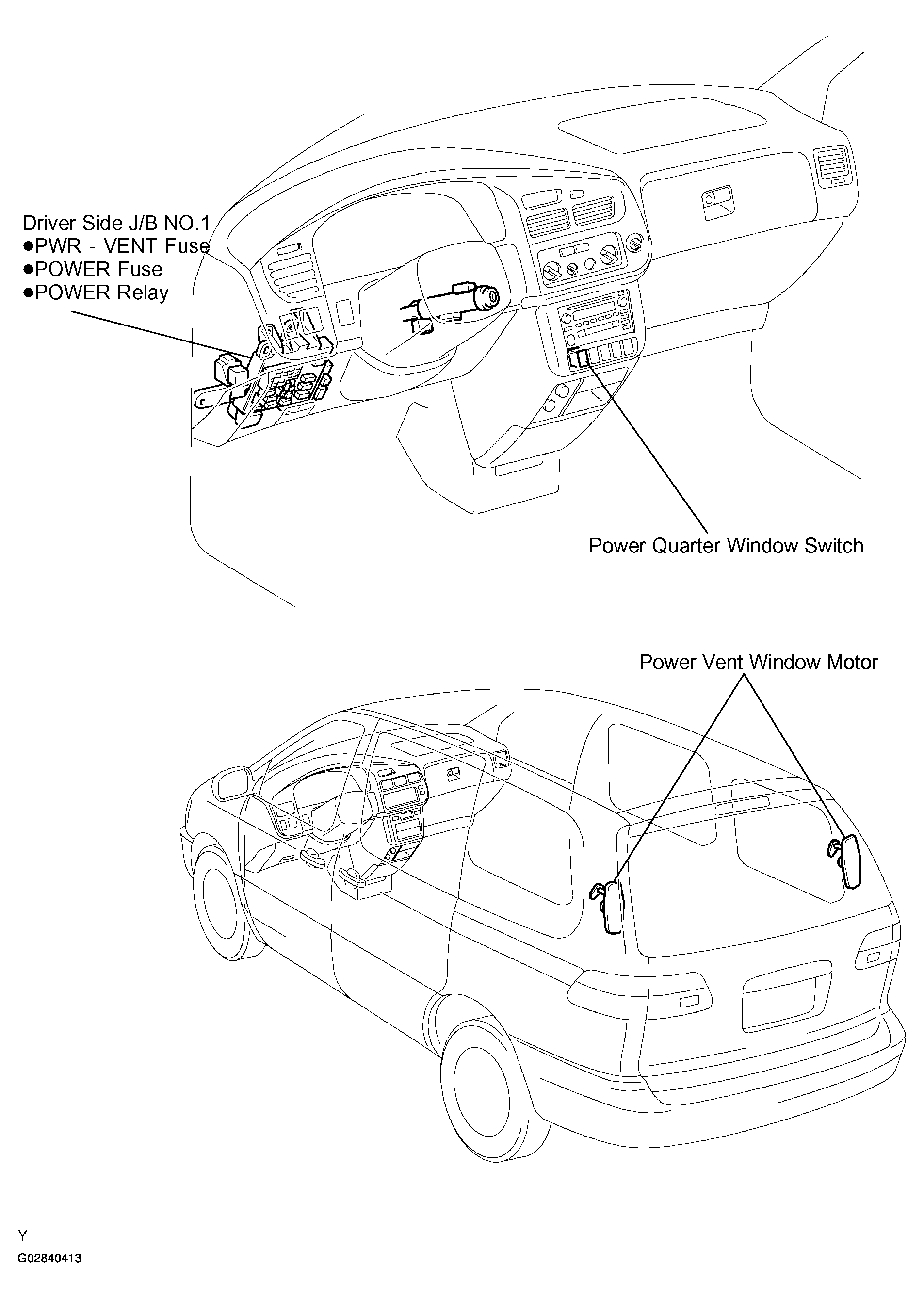

Fig 1: Identifying Power Rear Quarter Window Components

G02840413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
