Electro Chromic Mirror System: Inspection
INSPECT ELECTRO CHROMIC INNER MIRROR OPERATION

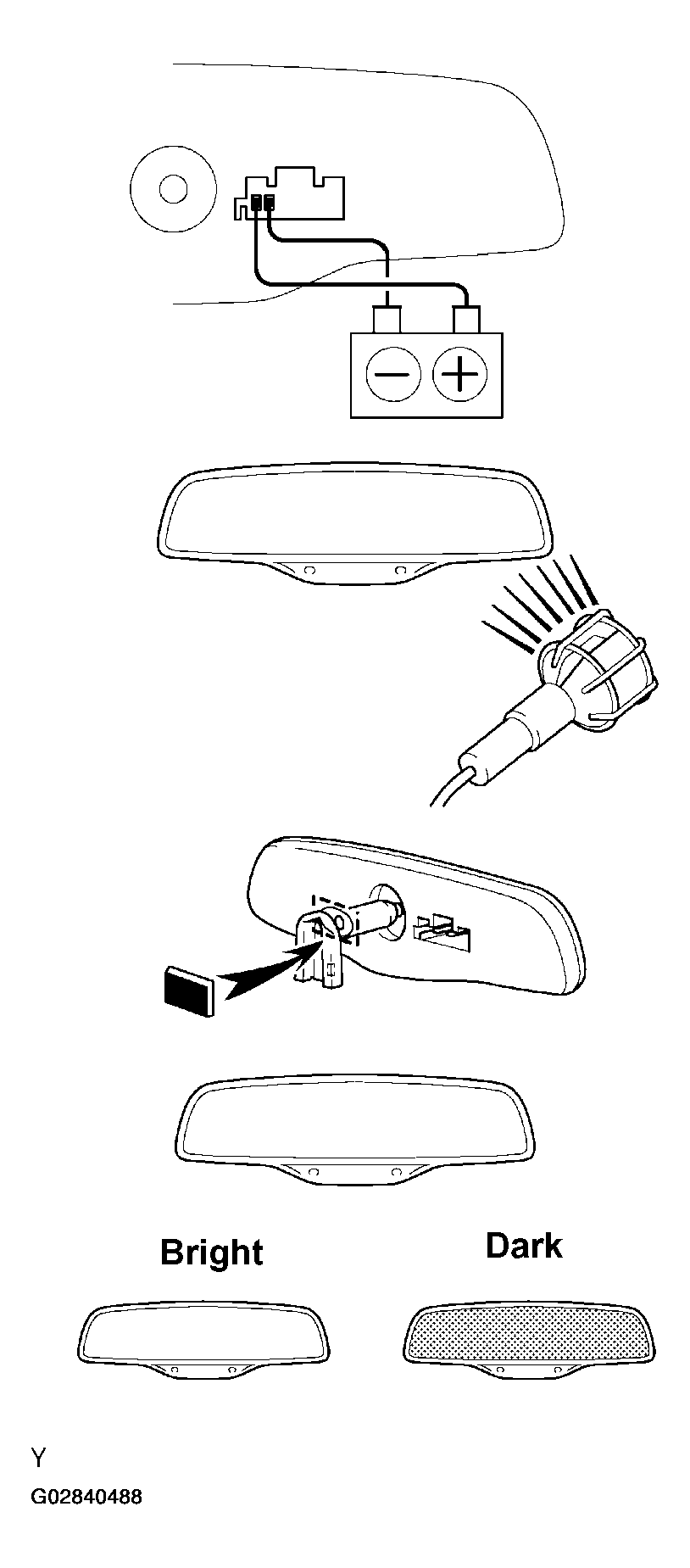

- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
- Attach a black colored tape to forward sensor to prevent it from sensing.
- Light up the mirror with an electric light, and check that mirror surface changes "bright" to "dark".
If operation is not as specified, replace the inner mirror.
