Home >> Toyota >> 2003 >> Sienna LE >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Slide Door Control System >> Location

Power Slide Door Control System: Location

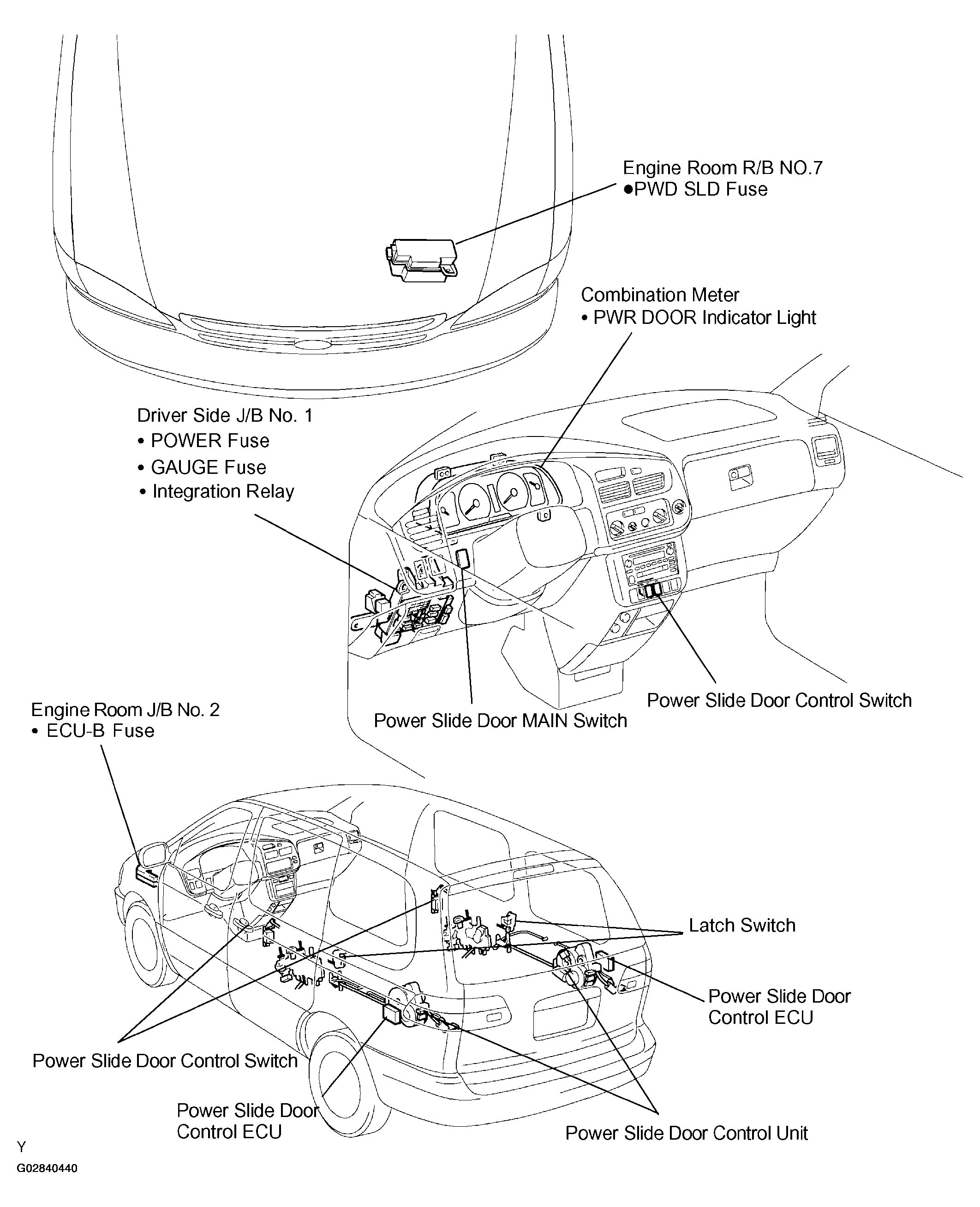

Fig 1: Identifying Power Slide Door Control System

G02840440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
