Home >> Toyota >> 2003 >> Sienna LE >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

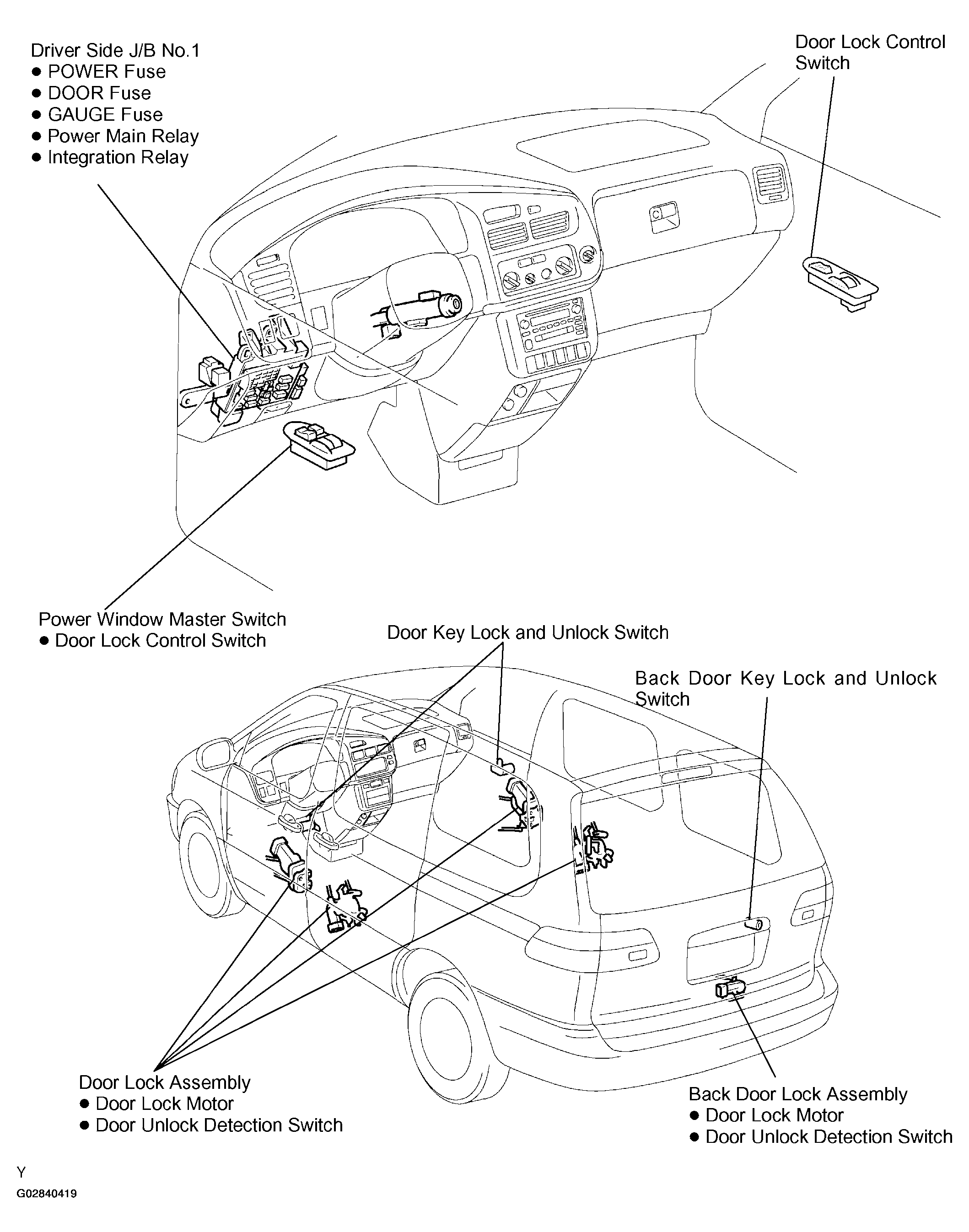

Fig 1: Identifying Power Door Lock Control System

G02840419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
