Abs Actuator: Components

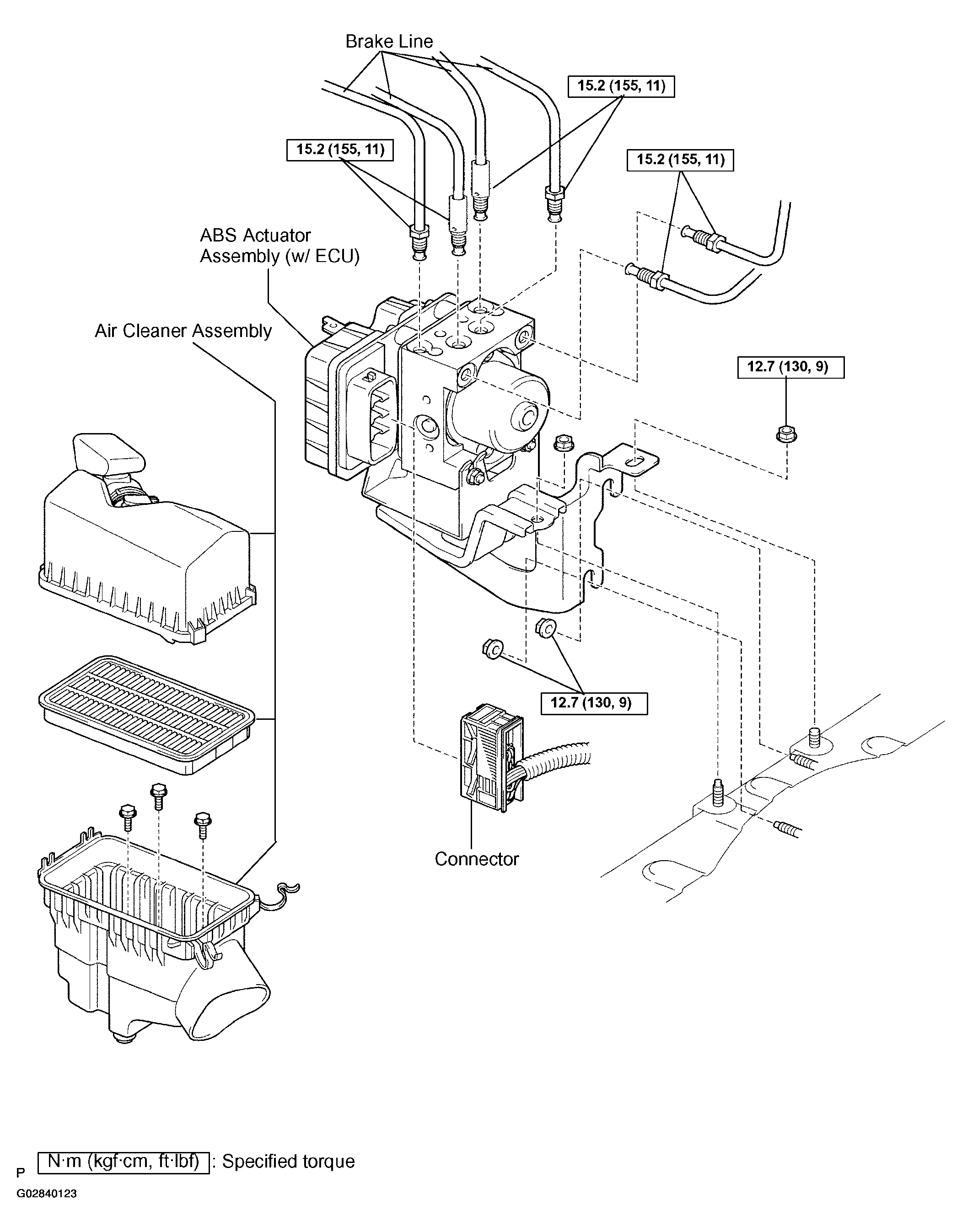

Fig 1: Exploded View Of ABS Actuator Components (1 Of 2)
G02840123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

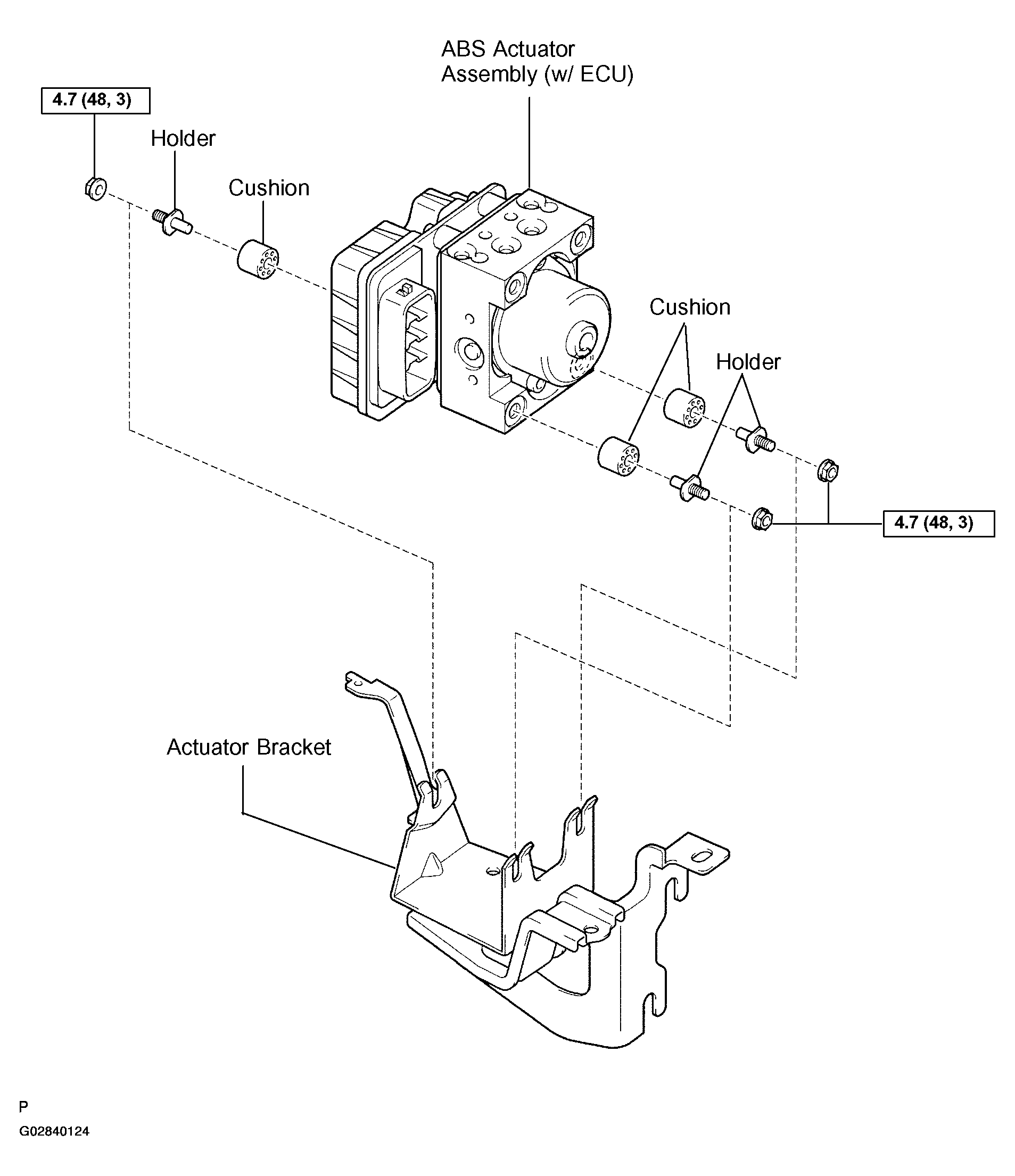

Fig 2: Exploded View Of ABS Actuator Components (2 Of 2)
G02840124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
