On-Vehicle Repair

  1. DISCONNECT ATF TEMPERATURE SENSOR CONNECTOR
  2. REMOVE ATF TEMPERATURE SENSOR
    1. Remove the ATF temperature sensor.

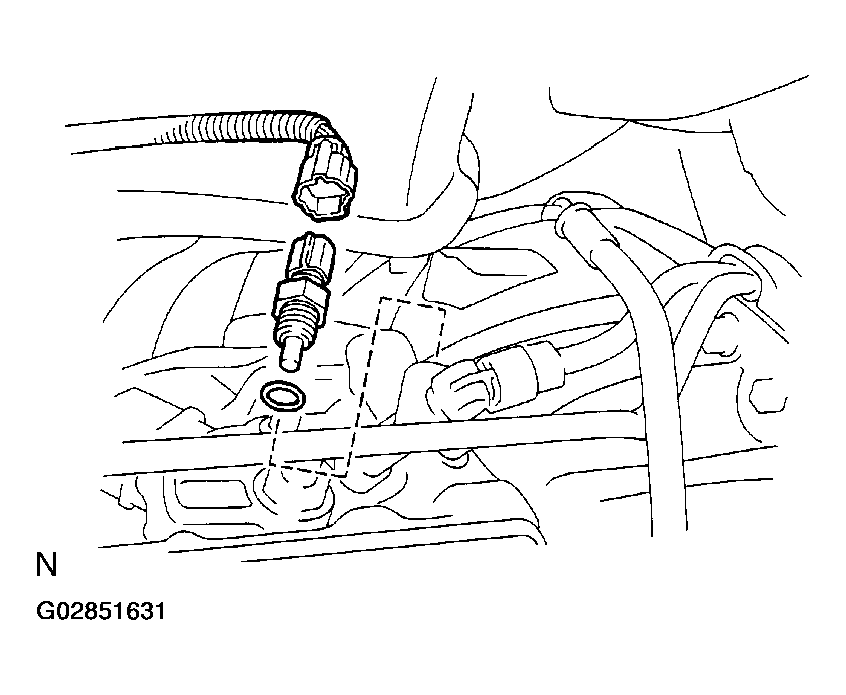

      2. Fig 1: Disconnecting ATF Temperature Sensor Connector
      G02851631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the ATF temperature sensor.
  3. INSTALL ATF TEMPERATURE SENSOR
    1. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
    2. Install the ATF temperature sensor.

      Torque: 15 N.m (150 Kgf.cm, 11 ft.lbf)

  4. CONNECT ATF TEMPERATURE SENSOR CONNECTOR
    NOTE: Be careful not to twist the wire harness.

    Install the 3 clamps with the 3 bolts.

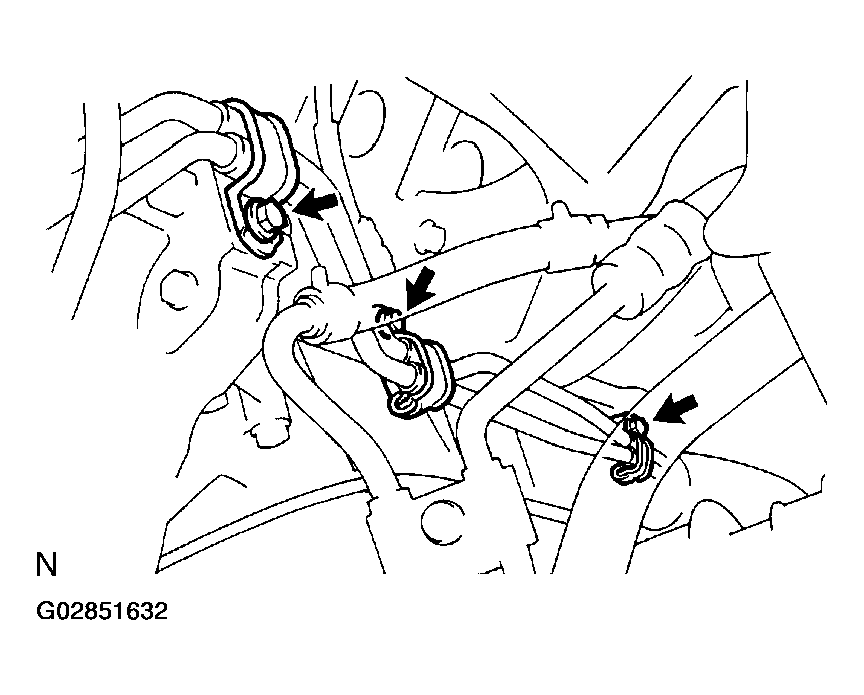

    Fig 2: Installing The 3 Clamps With 3 Bolts
    G02851632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. FILL ATF AND CHECK FLUID LEVEL (See  PRE-CHECK  )
