Front Brake Speed Sensor: Components

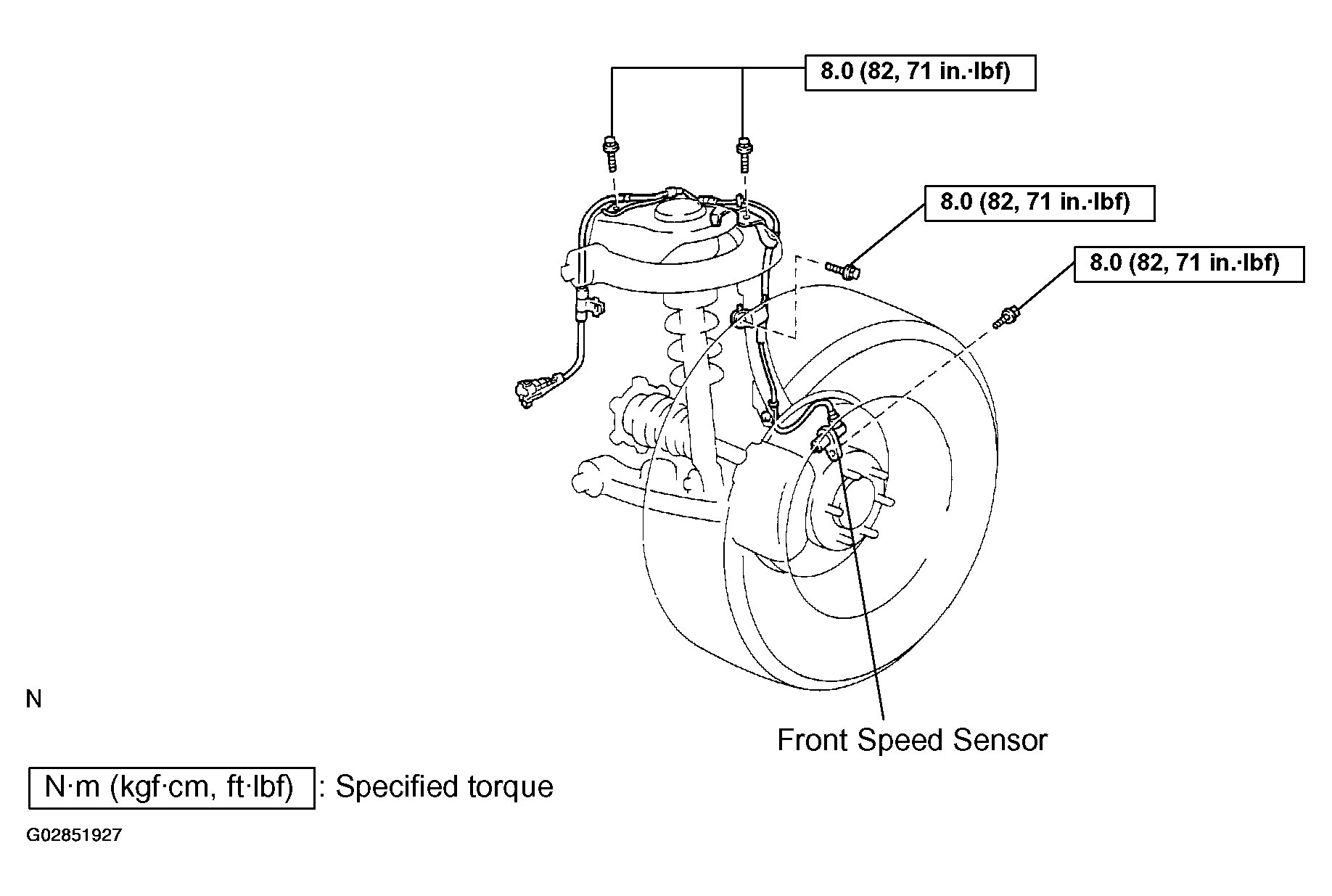

Fig 1: Identifying Tightening Torque of Front Speed Sensor Bolts

G02851927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
