Home >> Toyota >> 2003 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Door Power Window Control System >> Location

Back Door Power Window Control System: Location

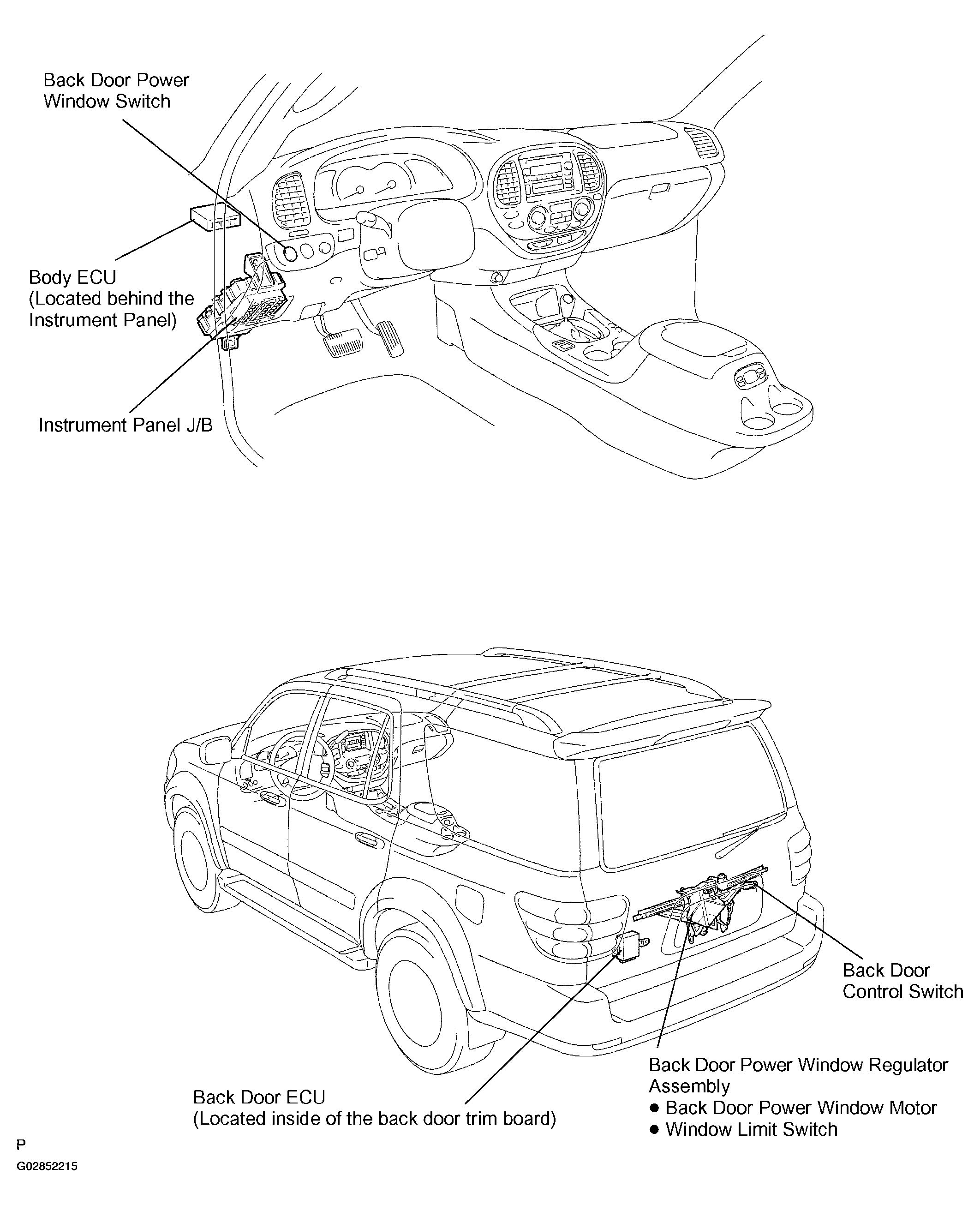

Fig 1: Locating Back Door Power Window Control System Components

G02852215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
