On-Vehicle Repair

DISCONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR

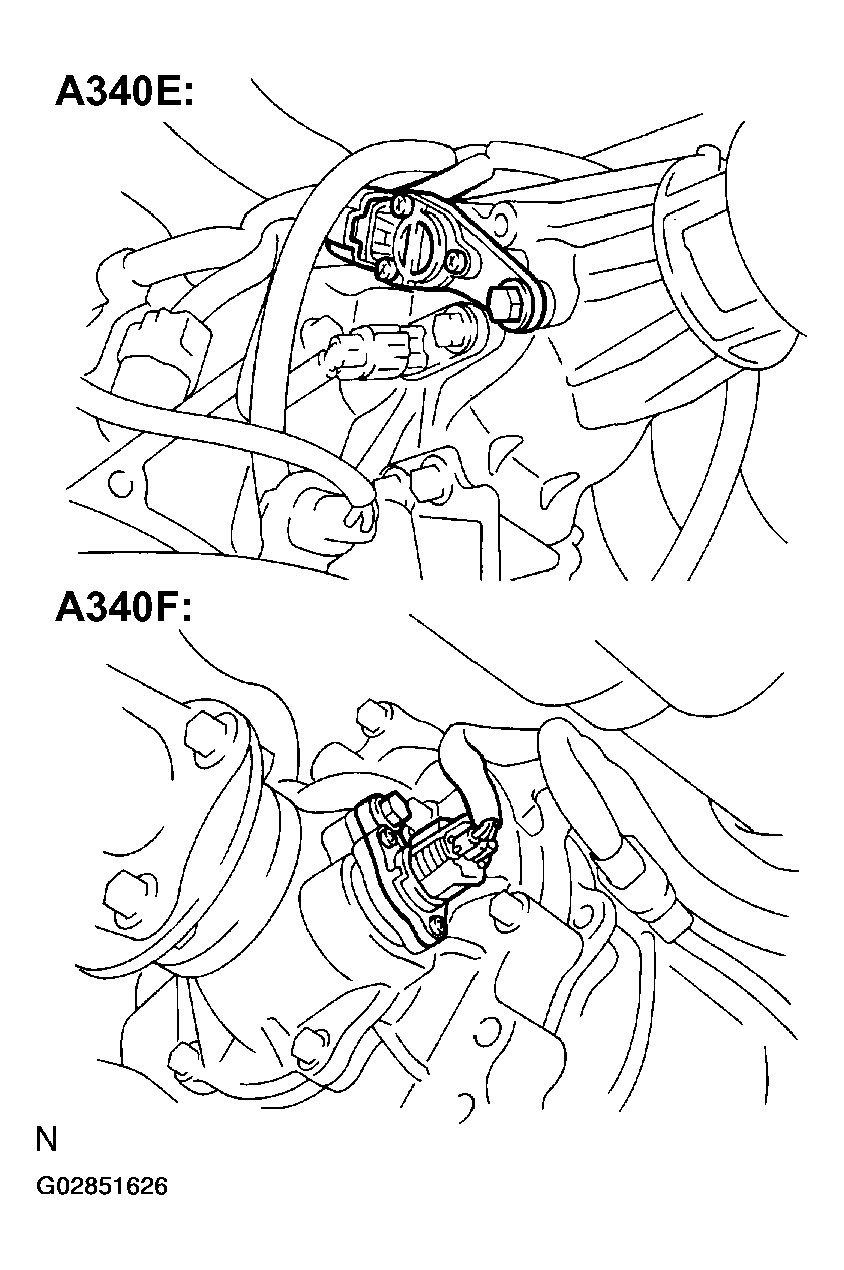

Fig 1: Disconnecting Vehicle Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 VEHICLE SPEED SENSOR
Remove the bolt and No.1 vehicle speed sensor.
DISASSEMBLE NO. 1 VEHICLE SPEED SENSOR
1. Remove the O-ring from the speed meter driven gear assembly.
2. Remove the clip and speed meter driven gear from the speed meter driven gear sleeve.
ASSEMBLE NO. 1 VEHICLE SPEED SENSOR
1. Install the speed meter driven gear and clip to the speed meter driven gear sleeve.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speed meter driven gear assembly.
INSTALL NO. 1 VEHICLE SPEED SENSOR
Install the No.1 vehicle speed sensor with the bolt.

Torque: 16 N.m (160 Kgf.cm, 12 ft.lbf)
CONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR

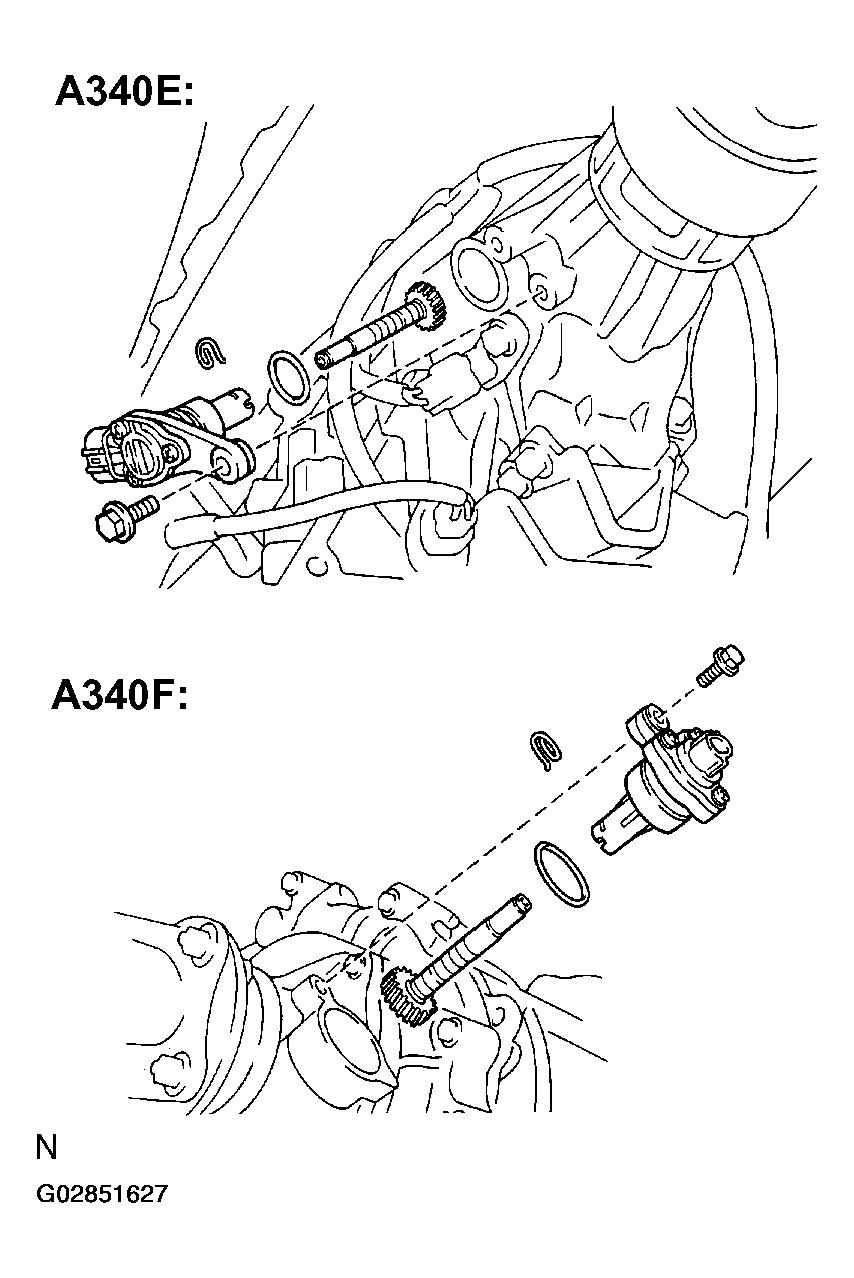

Fig 2: Installing No. 1 Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 2 VEHICLE SPEED SENSOR CONNECTOR
REMOVE NO. 2 VEHICLE SPEED SENSOR
1. Remove the bolt and No. 2 vehicle speed sensor.

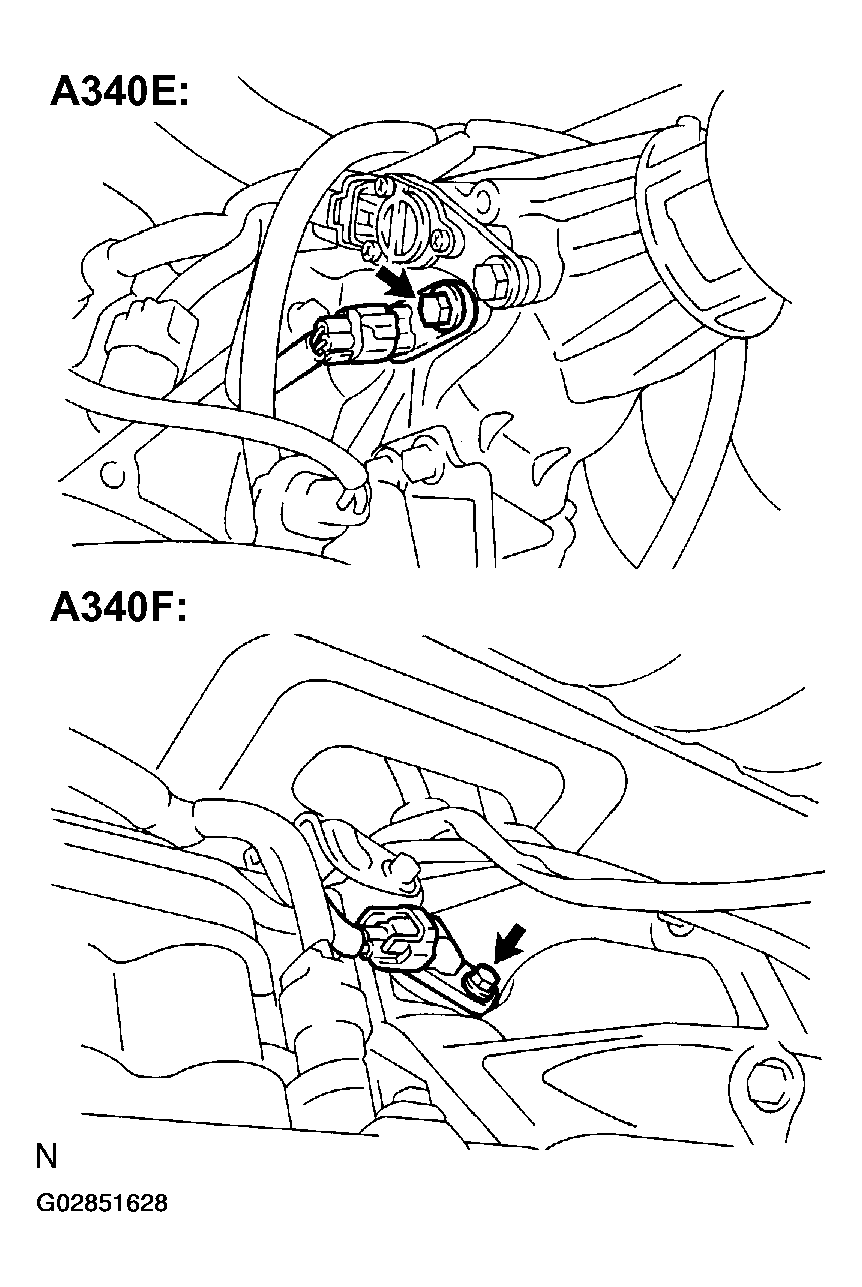

  Fig 3: Removing No. 2 Vehicle Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the No. 2 vehicle speed sensor.
INSTALL NO. 2 VEHICLE SPEED SENSOR
1. Coat a new O-ring with ATF and install it to the No. 2 vehicle speed sensor.
2. Install the No. 2 vehicle speed sensor with the bolt.

  Fig 4: Installing No. 2 Vehicle Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N.m (55 Kgf.cm, 48 in.lbf)
CONNECT NO. 2 VEHICLE SPEED SENSOR CONNECTOR
