Tilt Steering Column: Disassembly
NOTE:
When using a vise, do not overtighten it.
- REMOVE TRANSPONDER KEY COIL
- REMOVE KEY CYLINDER LAMP ASSEMBLY
- REMOVE COLUMN UPPER BRACKET
- Using a centering punch, mark the center of the 2 tapered-head bolts.
- Using a 3-4 mm (0.12-0.16 in.) drill, drill into the 2 bolts.

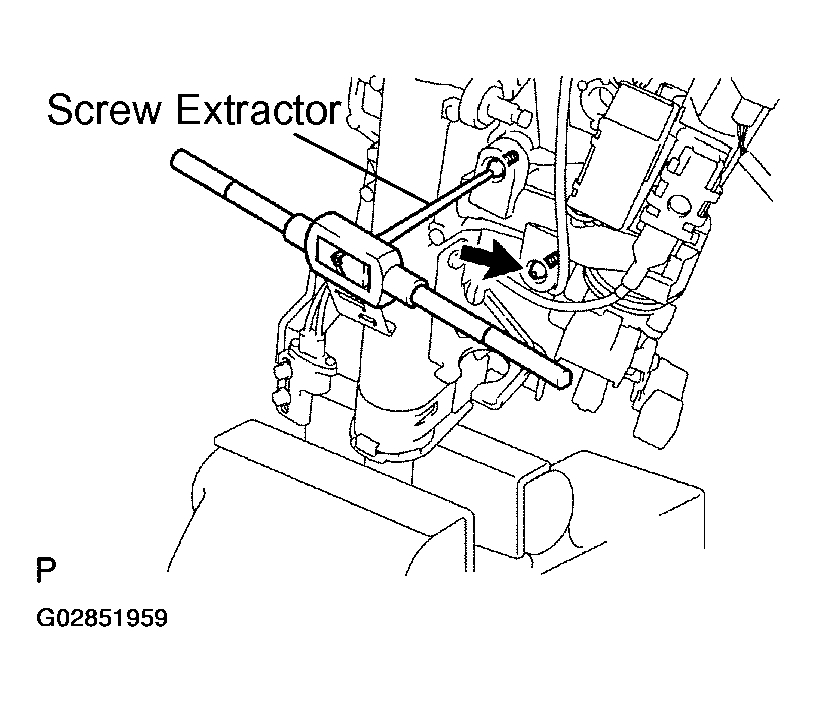

- Using a screw extractor, remove the 2 bolts and column upper bracket.
- REMOVE SHIFT LEVER
Using a torx socket wrench, remove the torx screw and shift lever.
- REMOVE PARK LOCK CABLE ASSEMBLY (See REMOVAL )
- REMOVE SHIFT LEVER HOUSING
Using a torx socket wrench, remove the 3 torx screws and shift lever housing.
- REMOVE RELEASE LEVER SPRING
- REMOVE TURN SIGNAL BRACKET
Using a torx socket wrench, remove the 2 torx screws and turn signal bracket.
- REMOVE STEERING COLUMN HOUSING WITH MAIN SHAFT ASSEMBLY

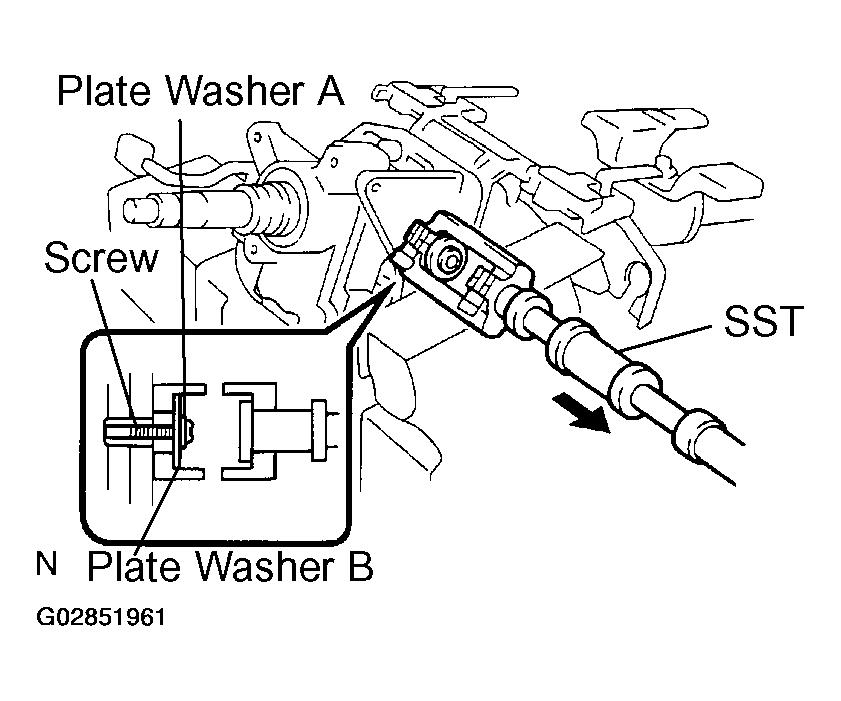

- Set SST, plate washer (18 and 36 mm outer diameter) and screw (4.0 mm diameter, 0.7 mm pitch, 15.0 mm length), as shown in the illustration. And then remove the 2 pivot pins.
SST 09910- 00015 (09911- 00011, 09912- 00010)
Reference
Plate washer A (18 mm): 90562-04012
Plate washer B (36 mm): 90201-10201
Screw: 90154-40015
- Remove the column housing with the shaft assembly from the column tube assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not bend the universal joint of the main shaft assembly more than 15°. - Remove the tilt spring and spring guide.
- Set SST, plate washer (18 and 36 mm outer diameter) and screw (4.0 mm diameter, 0.7 mm pitch, 15.0 mm length), as shown in the illustration. And then remove the 2 pivot pins.
- REMOVE 2 TILT NO. 1 SUPPORT
- REMOVE MAIN SHAFT STOPPER
- REMOVE MAIN SHAFT ASSEMBLY
- Install SST to the main shaft assembly, as shown in the illustration.
SST 09612-07010
- Using SST, compress the compression spring.NOTE: Do not bend the universal joint of the shaft assembly more than 15°.NOTE: Hold the shaft assembly with your hand so that it does not rotate.
- Using a screwdriver, remove the No. 2 steering column ring.
- Remove the spring retainer, compression spring, upper bearing inner race seat and inner race.
- Install SST to the main shaft assembly, as shown in the illustration.
- REMOVE TILT LEVER
Remove the tilt lever lock shaft and shift lever.
