Home >> Toyota >> 2003 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Window Glass >> Components

Quarter Window Glass: Components

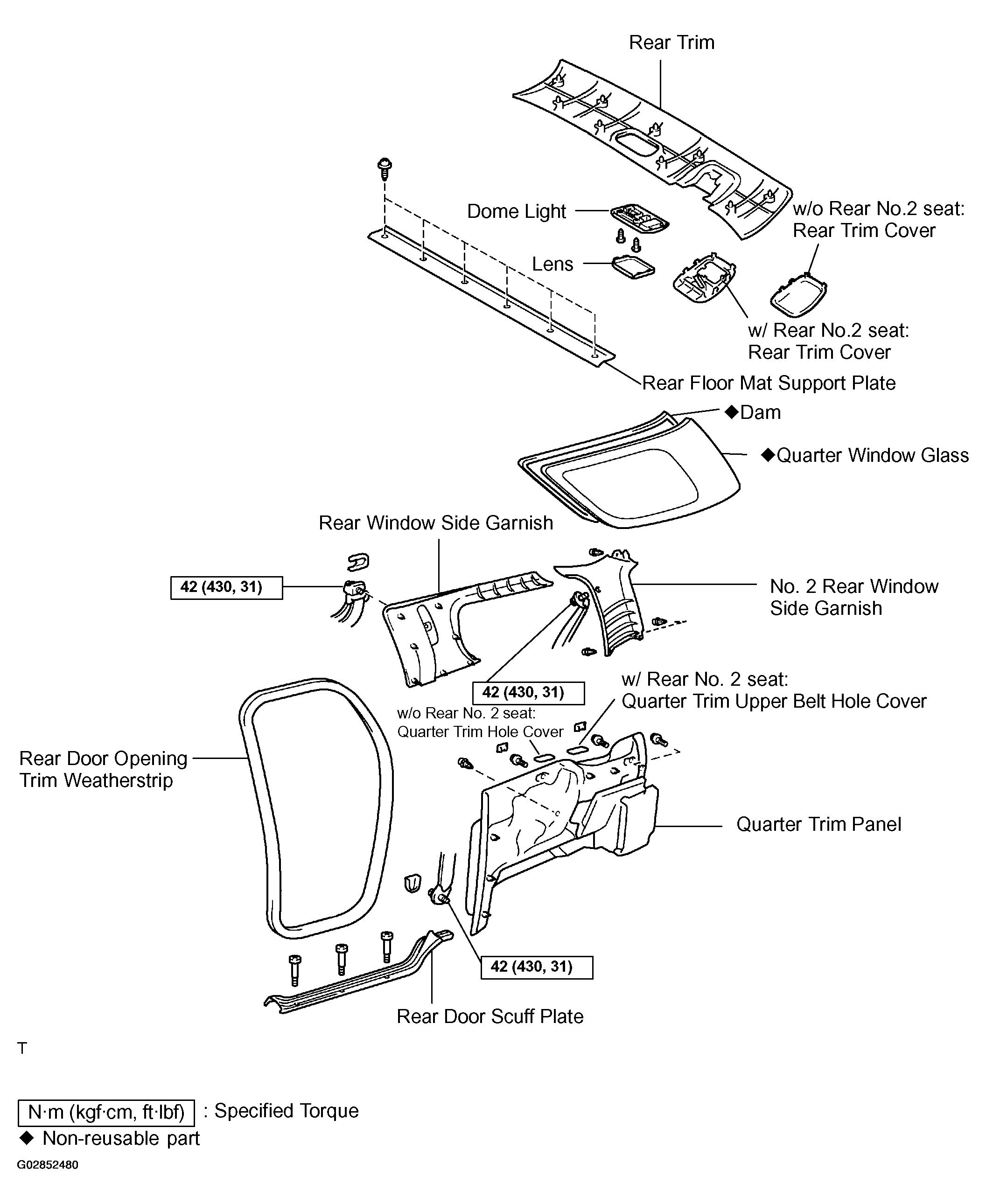

Fig 1: Identifying Quarter Window Glass Components

G02852480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
