Trailer Towing System: Inspection

INSPECT TOWING CONVERTER CIRCUIT
Remove the towing converter with connector still connected and inspect the wire harness side connector from the back side, as shown in the table.

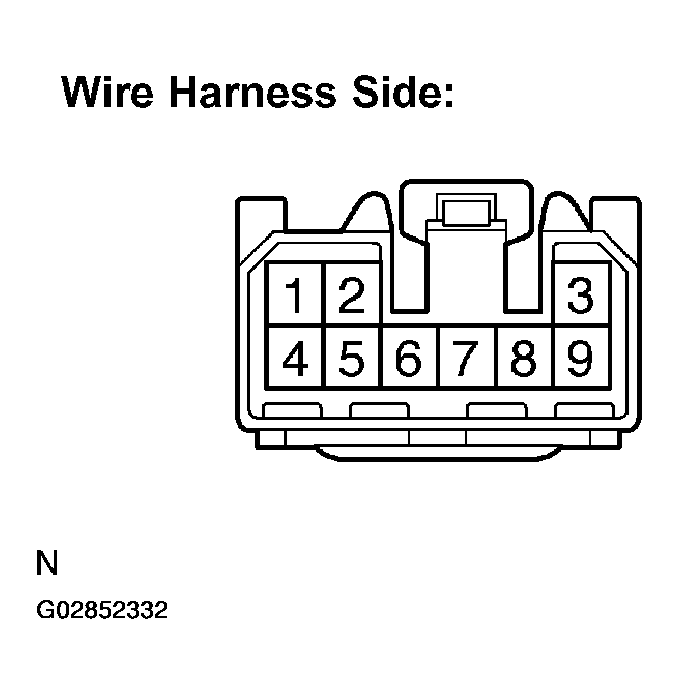

Fig 1: Inspecting Towing Converter Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

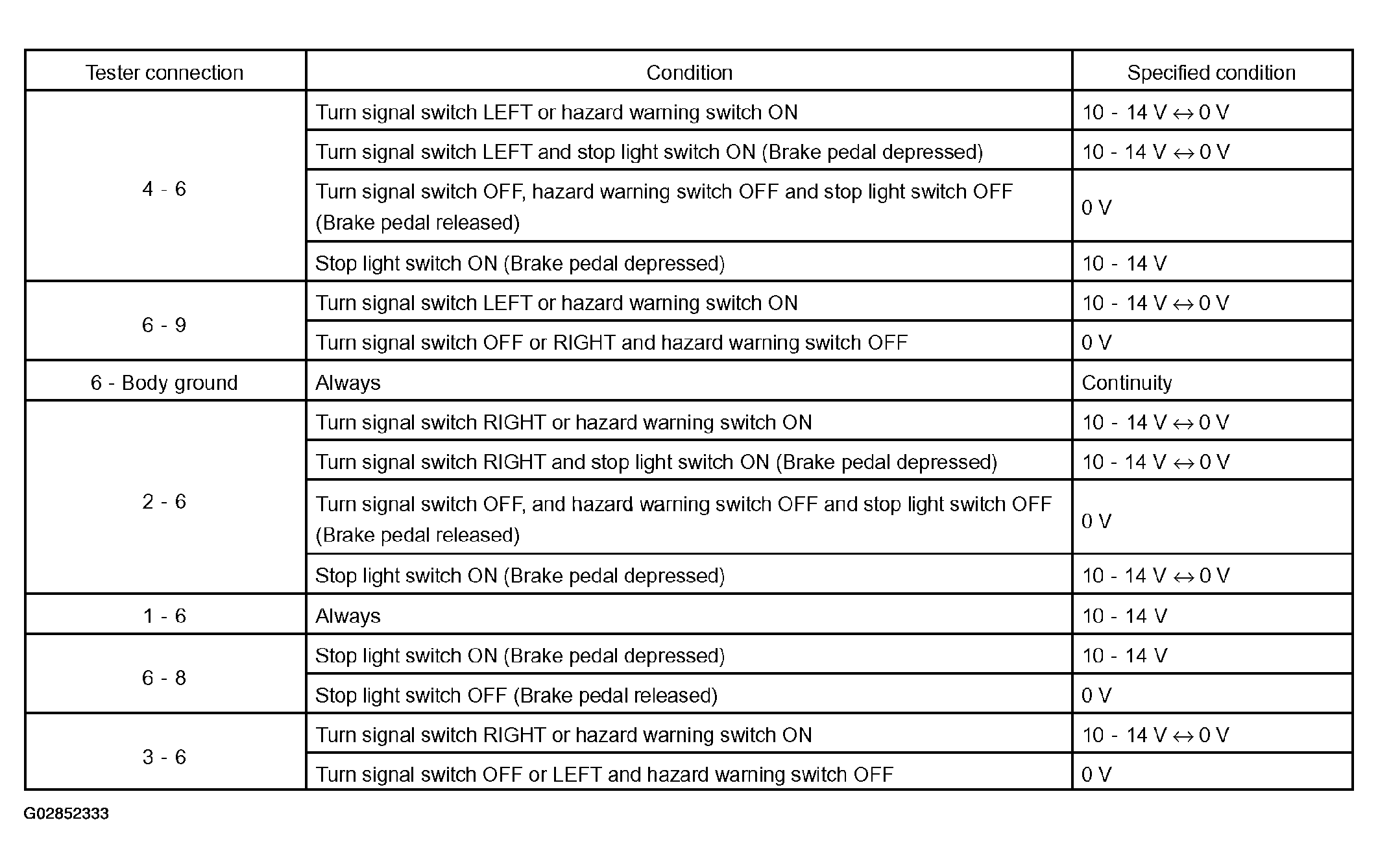

Fig 2: Towing Converter Connector Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Trailer Socket 7 Pin Type: INSPECT BRAKE CONTROLLER CIRCUIT
Remove the brake controller with connector still connected and inspect the wire harness side connector from the back side, as shown in the table.

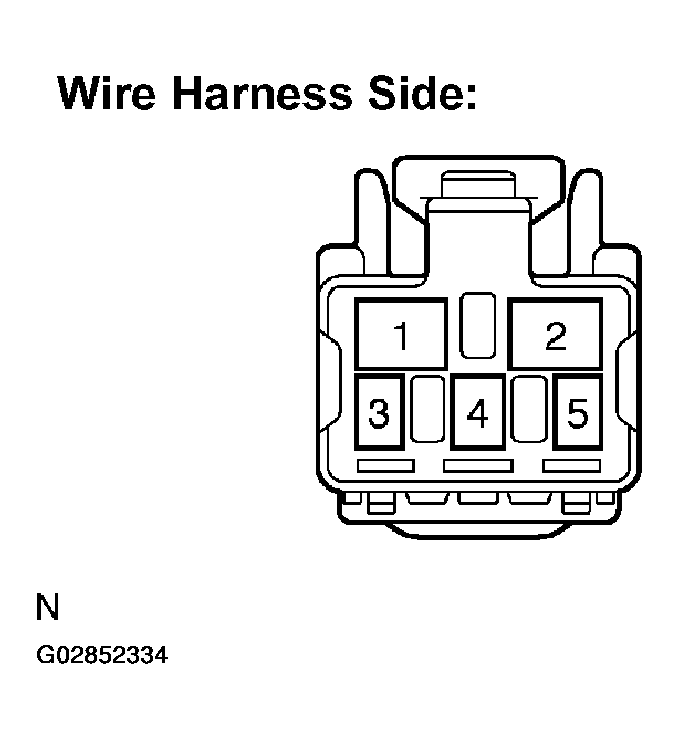

Fig 3: Identifying Brake Controller Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

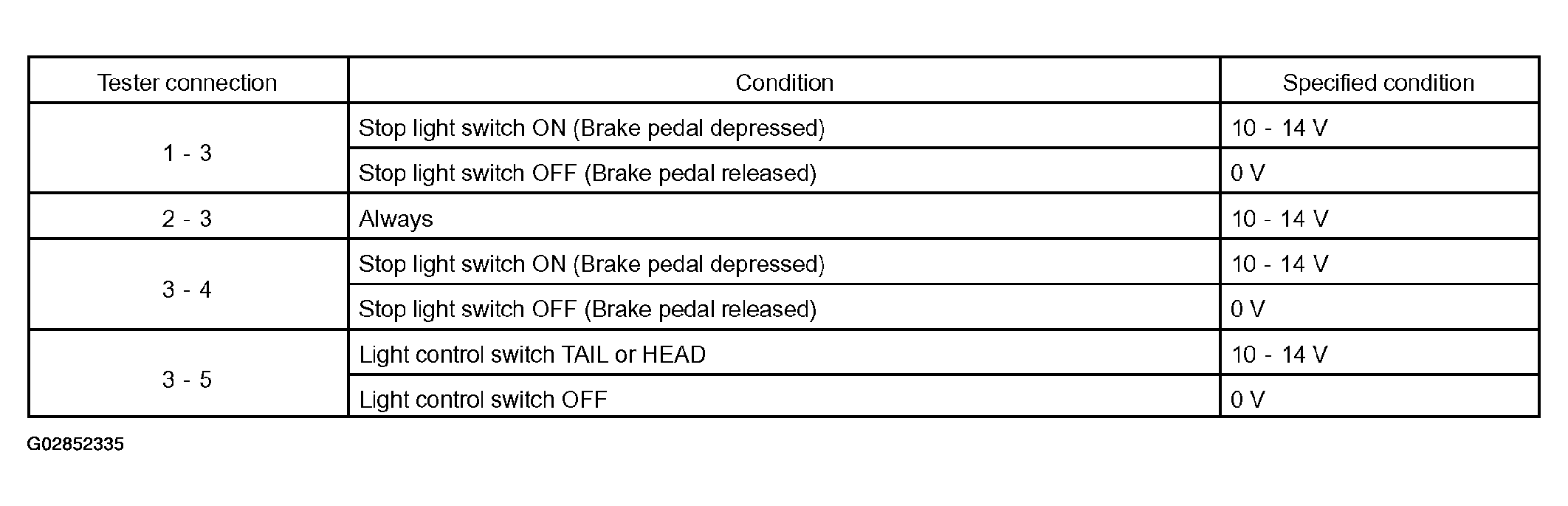

Fig 4: Brake Controller Connector Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the circuit is not as specified, inspect the circuit connected to other parts.
INSPECT TOWING TAIL RELAY CONTINUITY

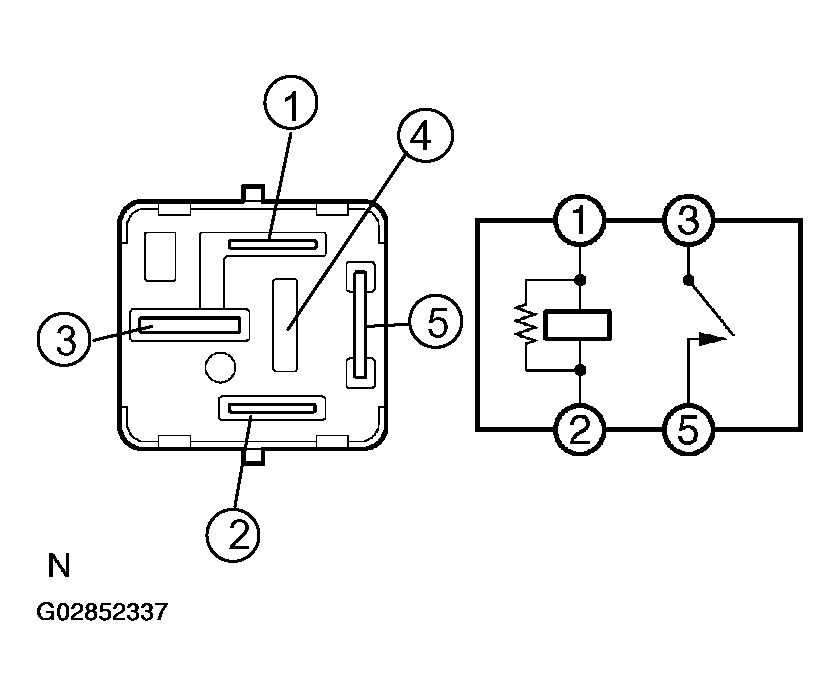

Fig 5: Identifying Towing Tail Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

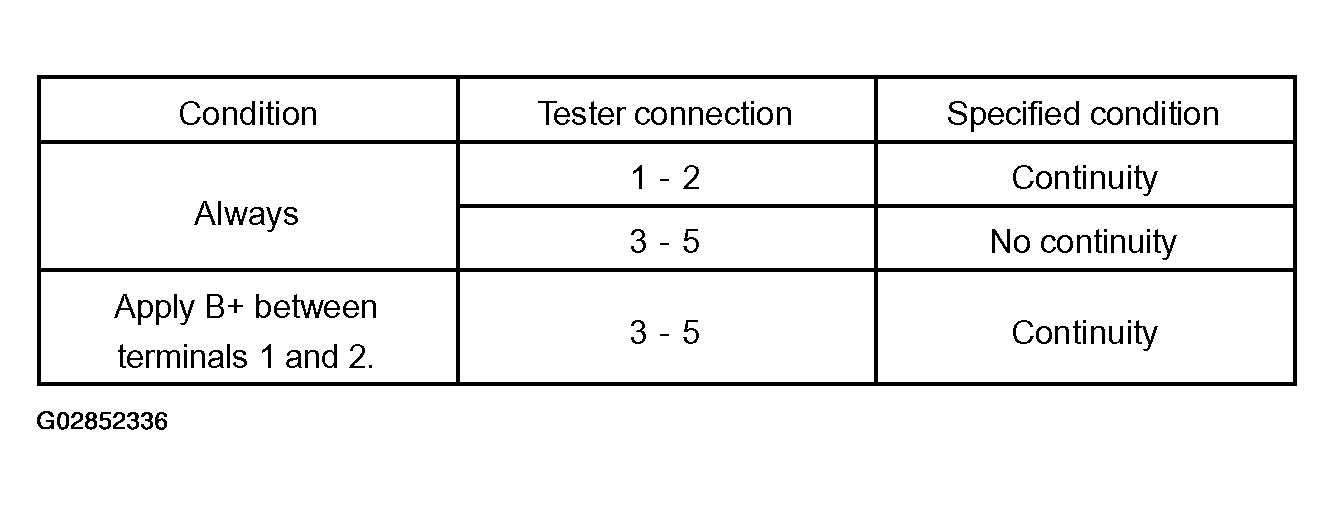

Fig 6: Towing Tail Relay Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.
INSPECT BATT CHARGE RELAY CIRCUIT

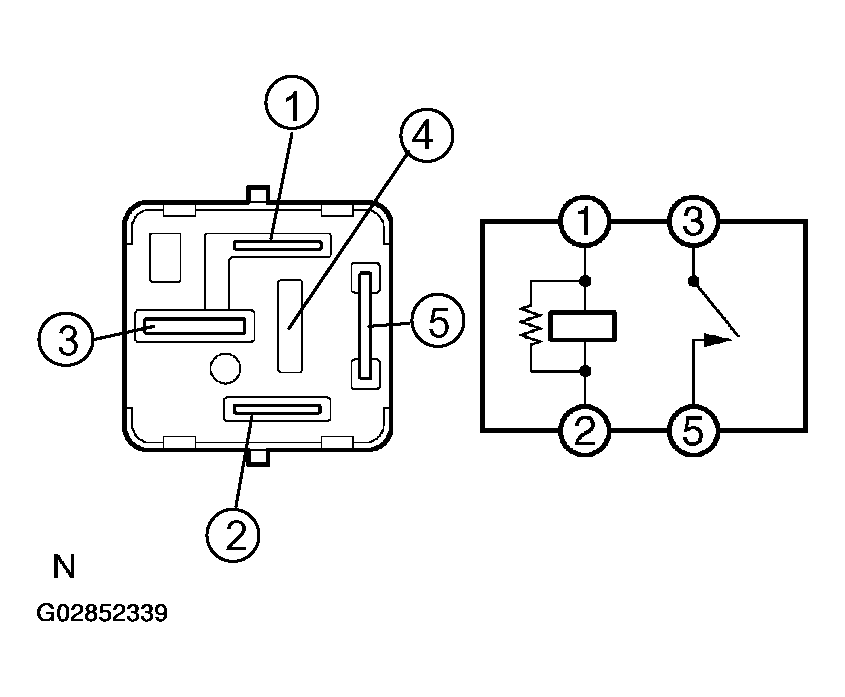

Fig 7: Identifying Batt Charge Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Batt Charge Relay Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.
