Power Steering Gear: Components

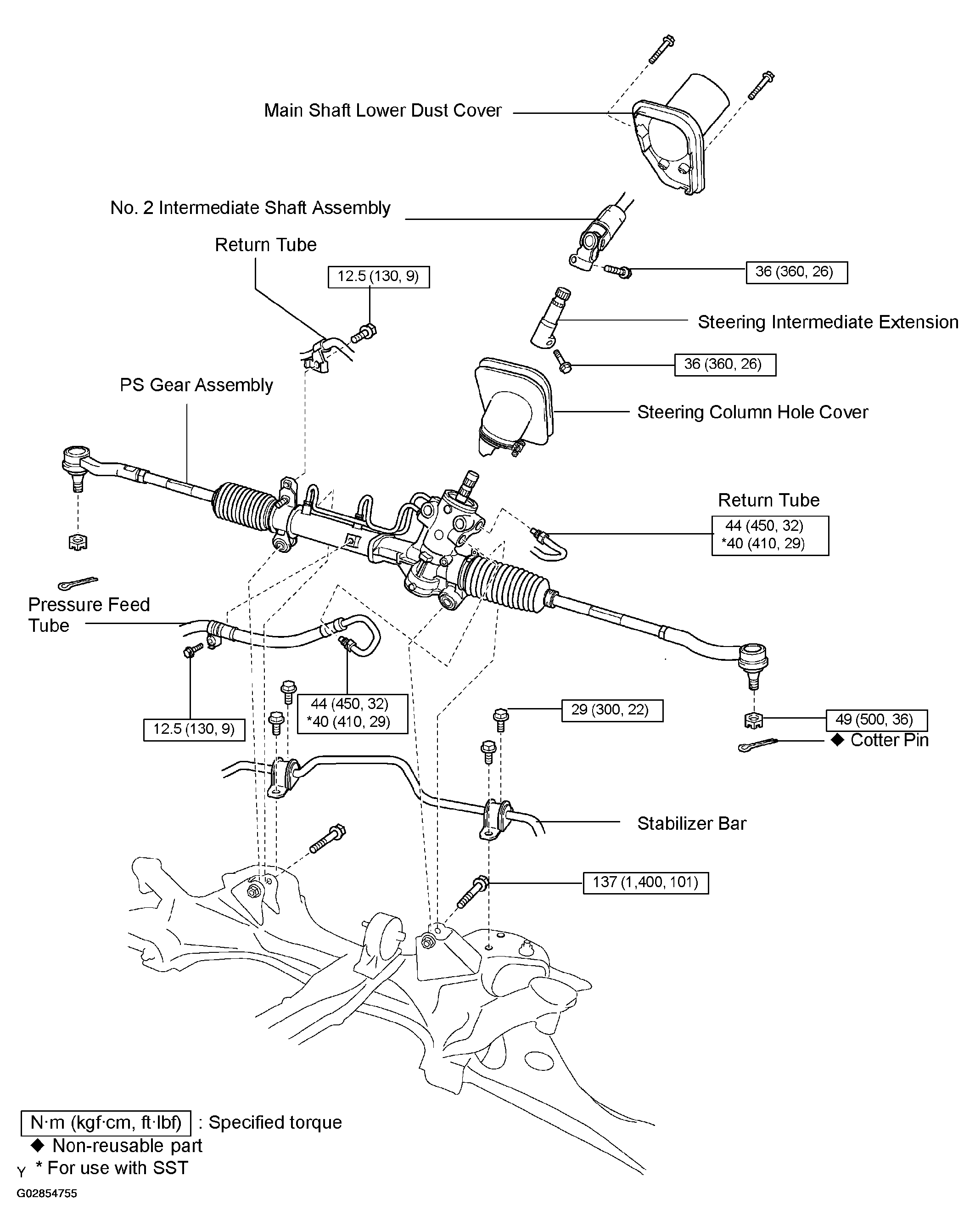

Fig 1: Exploded View Of Power Steering Gear Components (1 Of 3)
G02854755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

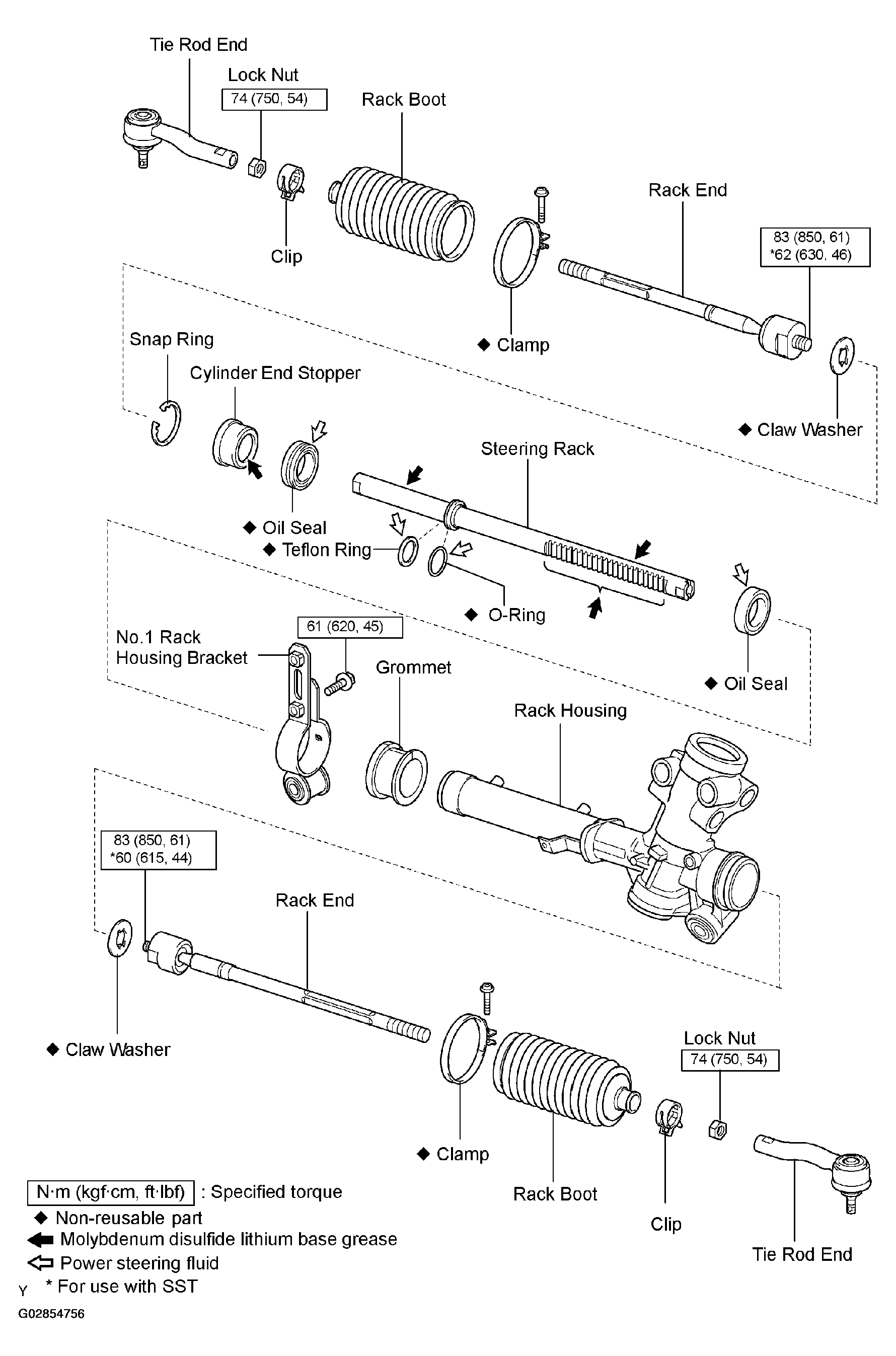

Fig 2: Exploded View Of Power Steering Gear Components (2 Of 3)
G02854756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

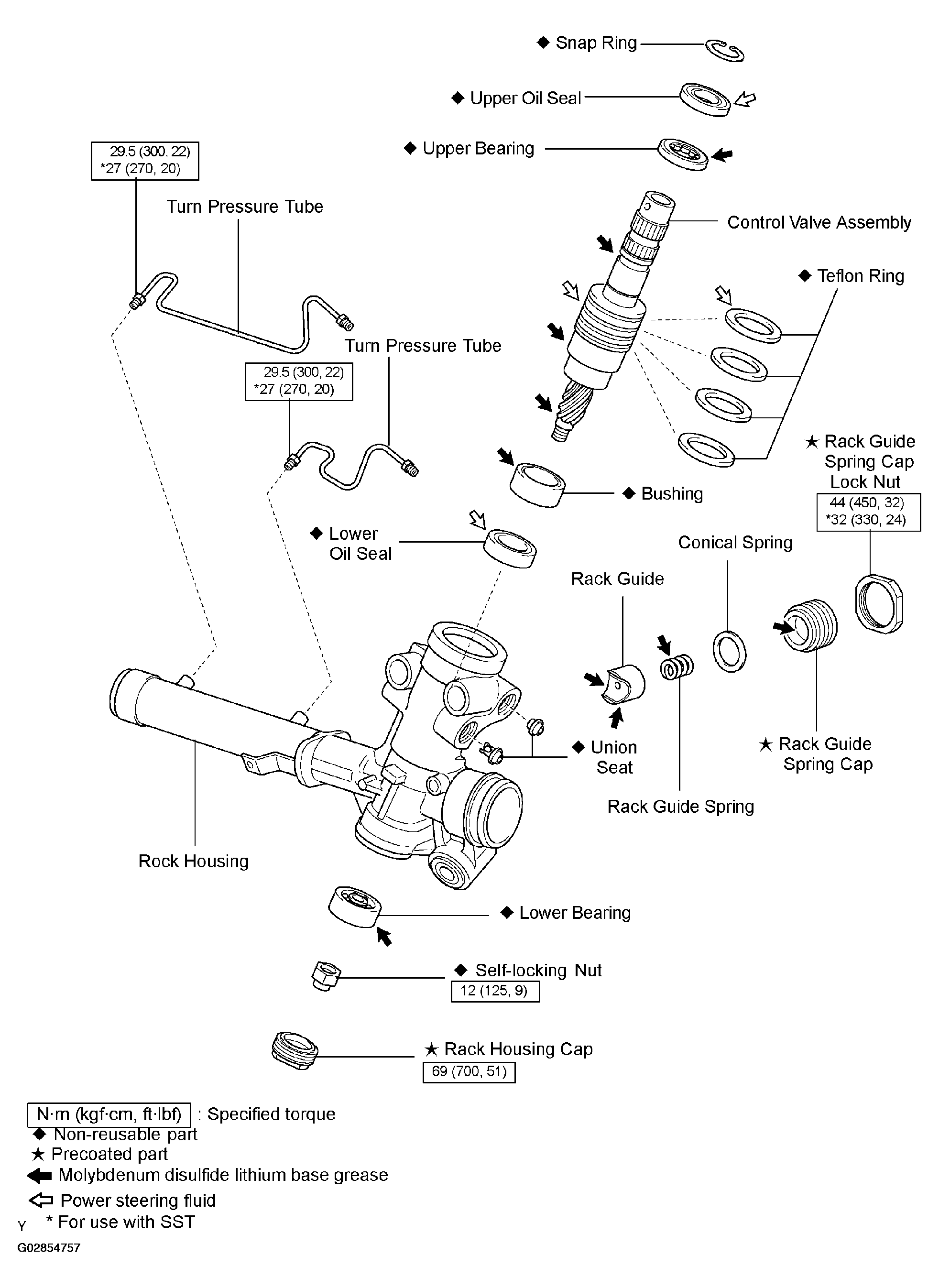

Fig 3: Exploded View Of Power Steering Gear Components (3 Of 3)
G02854757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
