Quarter Window Glass: Removal

REMOVE REAR SEAT
REMOVE REAR FLOOR FINISH PLATE
REMOVE REAR DOOR SCUFF PLATE
REMOVE DECK SIDE TRIM

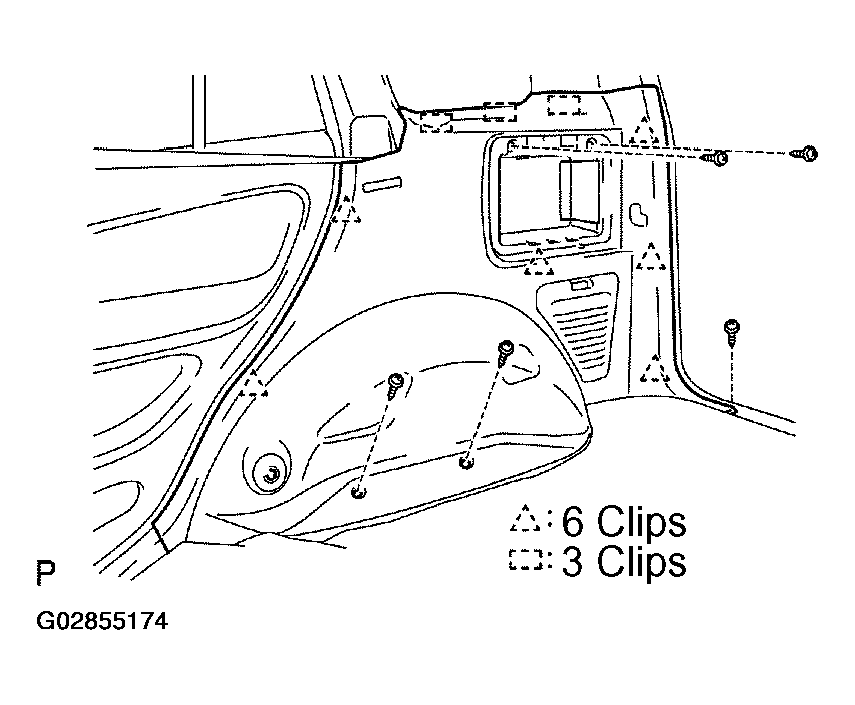

Fig 1: Removing Deck Side Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and rear seat outer belt floor anchor.
2. Remove the 5 screws.
3. Using a screwdriver, remove the deck side trim.
  NOTE: Tape the screwdriver tip before use.
4. LH side: Disconnect the connector.
REMOVE ROOF SIDE INNER GARNISH

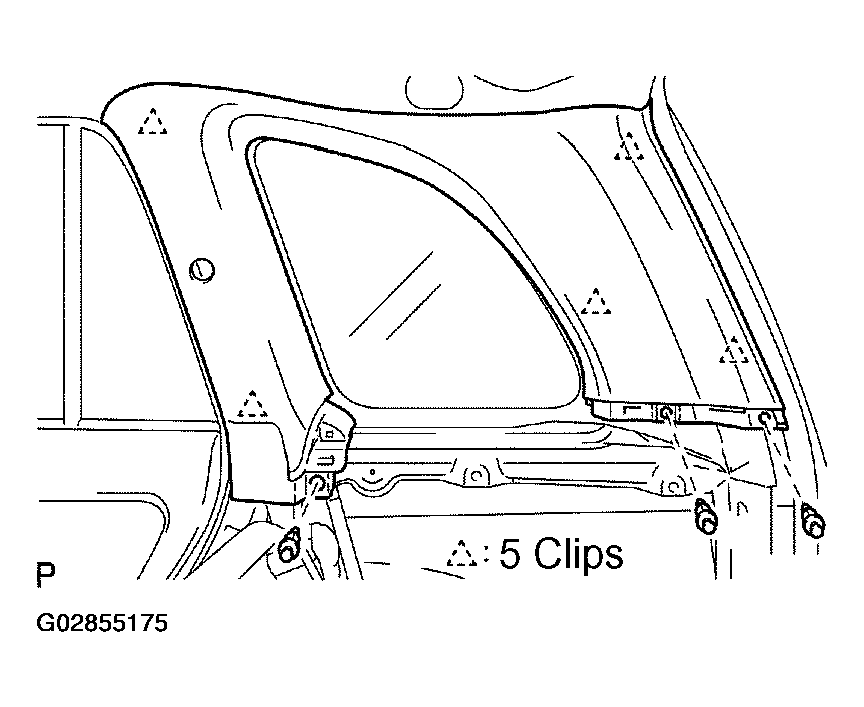

Fig 2: Removing Roof Side Inner Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and rear seat outer belt shoulder anchor.
2. Remove the 3 clips.
3. Using a screwdriver, remove the roof side inner garnish.
NOTE: Tape the screwdriver tip before use.
REMOVE QUARTER WINDOW GLASS
1. Using a knife, cut off the moulding as shown in the below illustration.

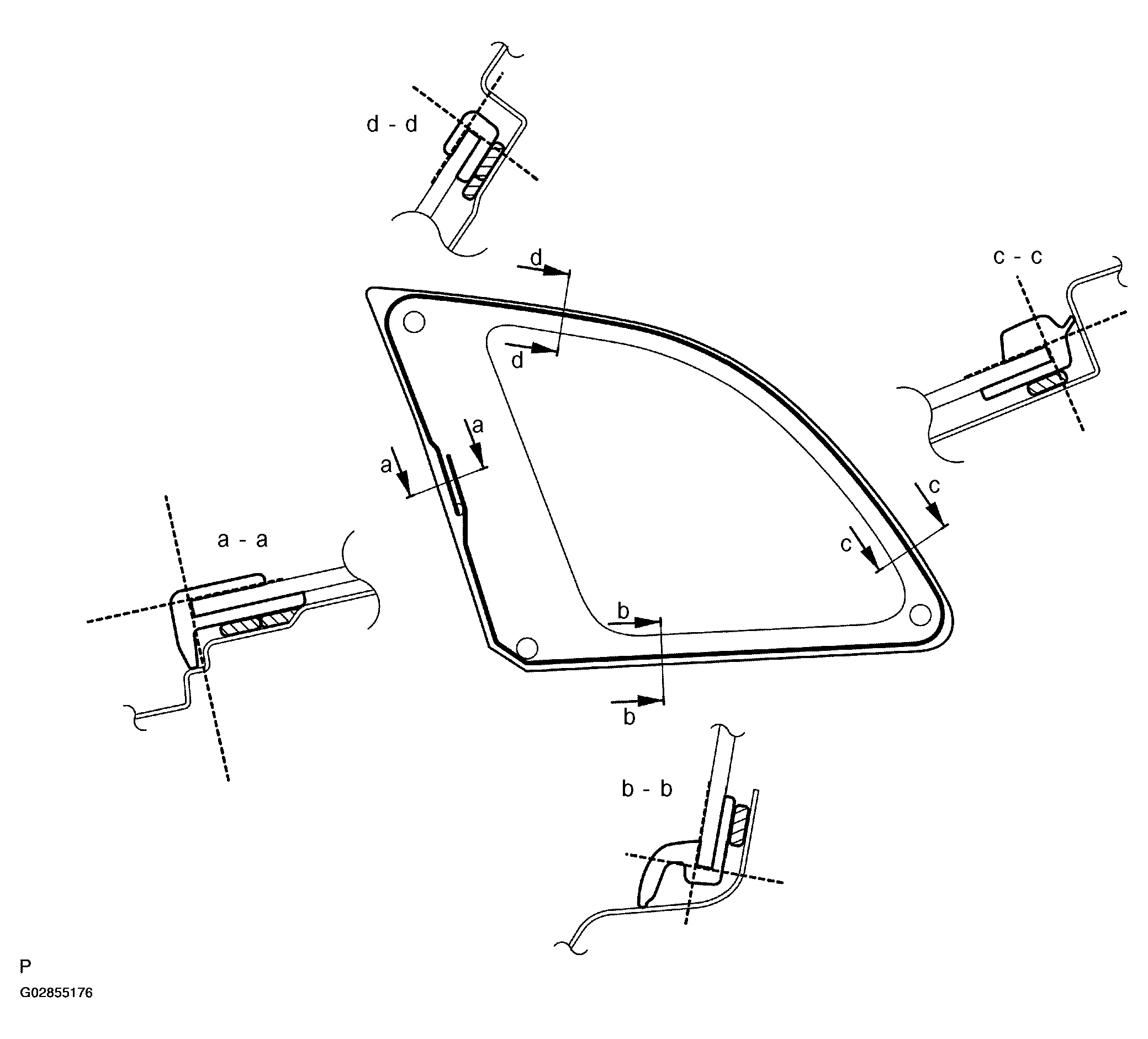

  Fig 3: Cutting Off Moulding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the body with the knife.
2. Remove the remaining moulding.
3. Push a piano wire through between the body and glass from the interior.
4. Tie both wire ends to wooden blocks or similar objects.

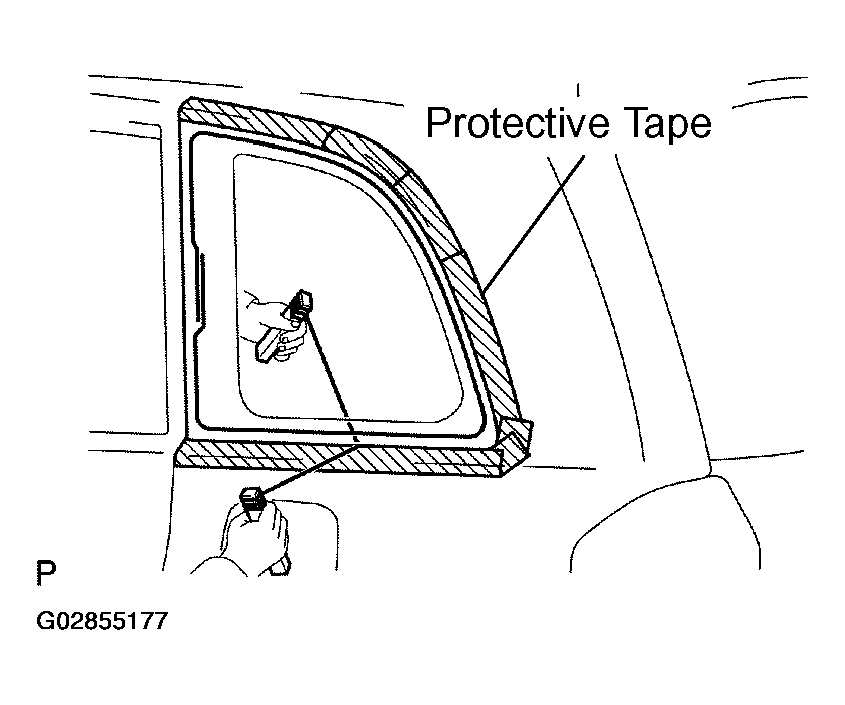

  Fig 4: Tying Both Wire Ends To Wooden Blocks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.

  NOTE: When separating the glass, take care not to damage the paint and exterior.
5. Cut the adhesive by pulling the piano wire around it.

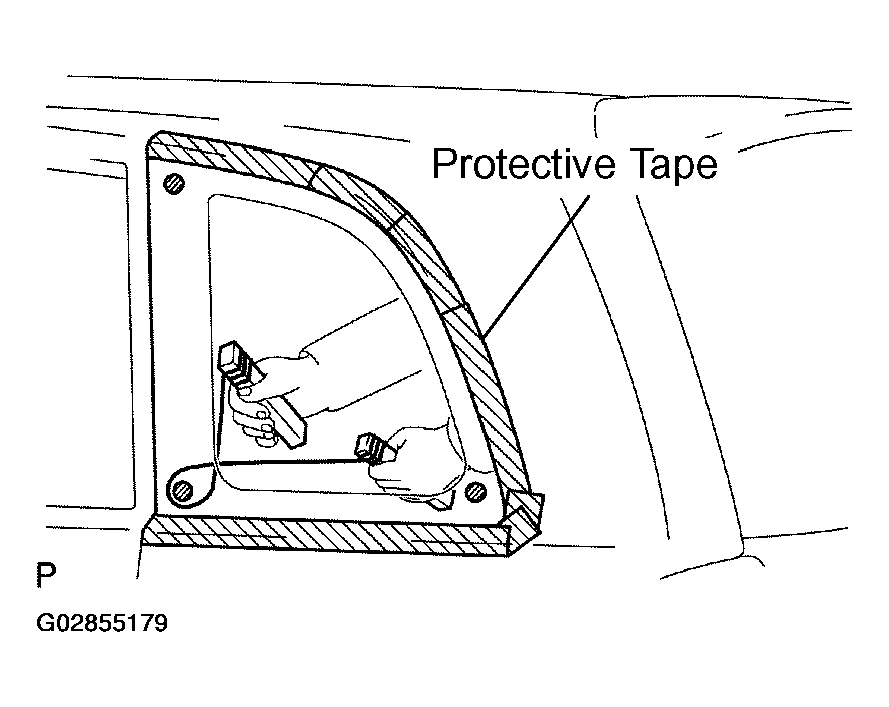

  Fig 5: Cutting Adhesive By Pulling Piano Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Cut the adhesive areas as shown in the illustration, leaving the adhesive where the clips are.
6. Push the piano wire through as shown in the illustration, cut off the adhered part to the clips.
7. Remove the glass.
NOTE: Leave the adhesive on the body as much as possible when cutting off the glass.
