Ignition-Controlled Door Locking/Unlocking

The RS3200 is programmed to automatically lock your vehicle's doors when you turn the ignition key to "ON" or "START", and unlock the doors when you turn the key back to "ACC" or "LOCK". If you start the vehicle while a door is open, the system will not lock the doors; you must lock them manually.

How the RS3200 automatically locks and unlocks the doors:

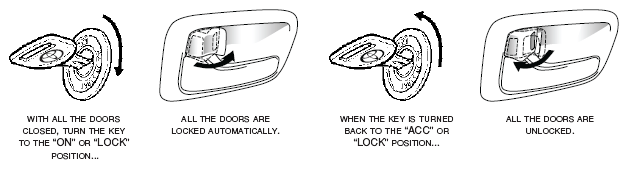

Fig 1: Locking/Unlocking Ignition-Controlled Door
G06741311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This feature may be defeated by changing the system's programming. Refer to INSTALL THE BATTERY  for programming instructions.
