Home >> Toyota >> 2003 >> RAV4 L, AWD, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Heated Glass/Defoggers >> Defogger System >> Location

Defogger System: Location

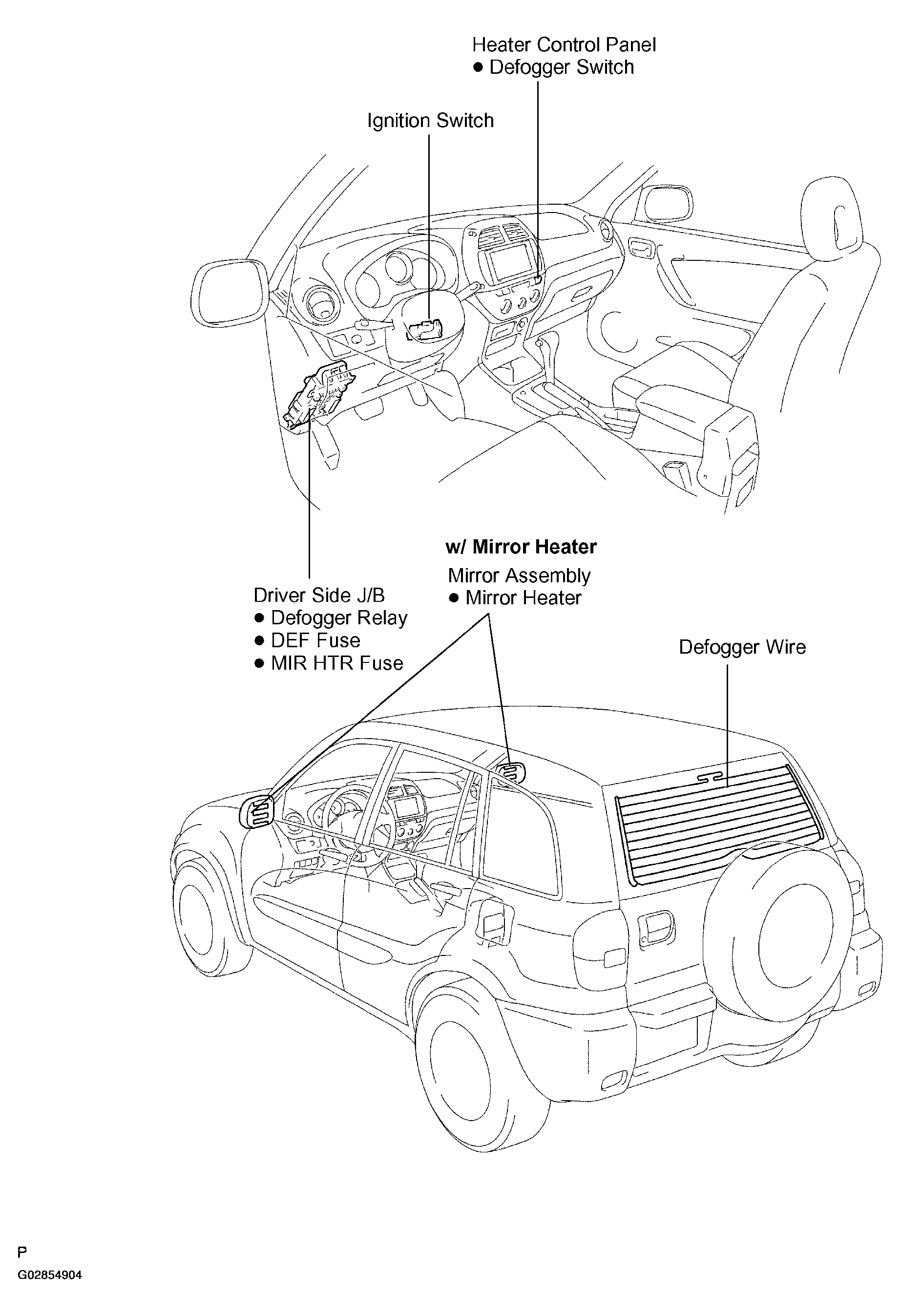

Fig 1: Locating Defogger System Components

G02854904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
