Cooling System (Mechanical): Radiator: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE RADIATOR GRILLE

    Remove the 4 screws, 2 Clips and radiator grille.

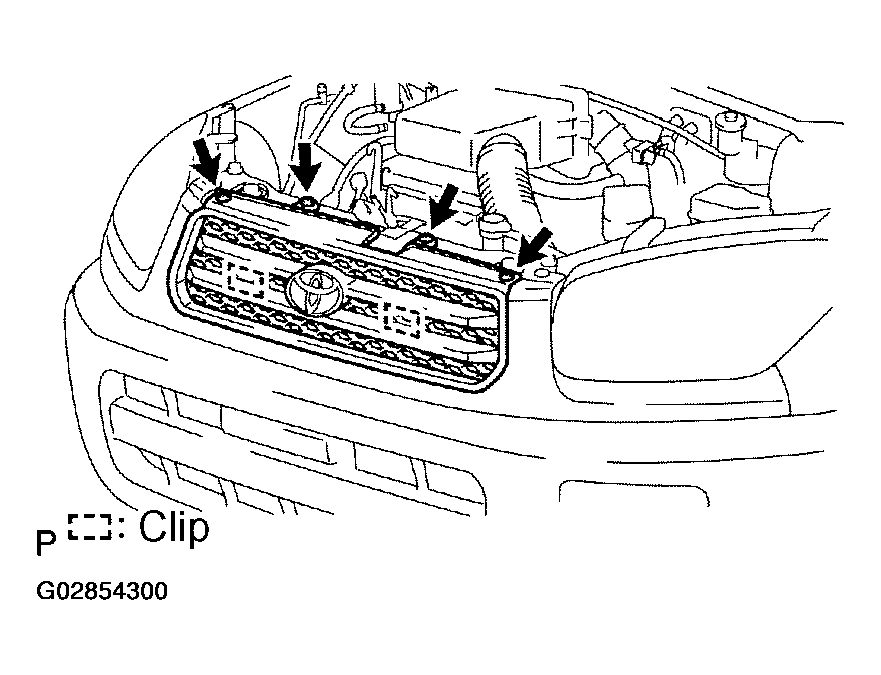

    Fig 1: Removing Radiator Grille
    G02854300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT END PANEL

    Remove the 4 screws and front end panel.

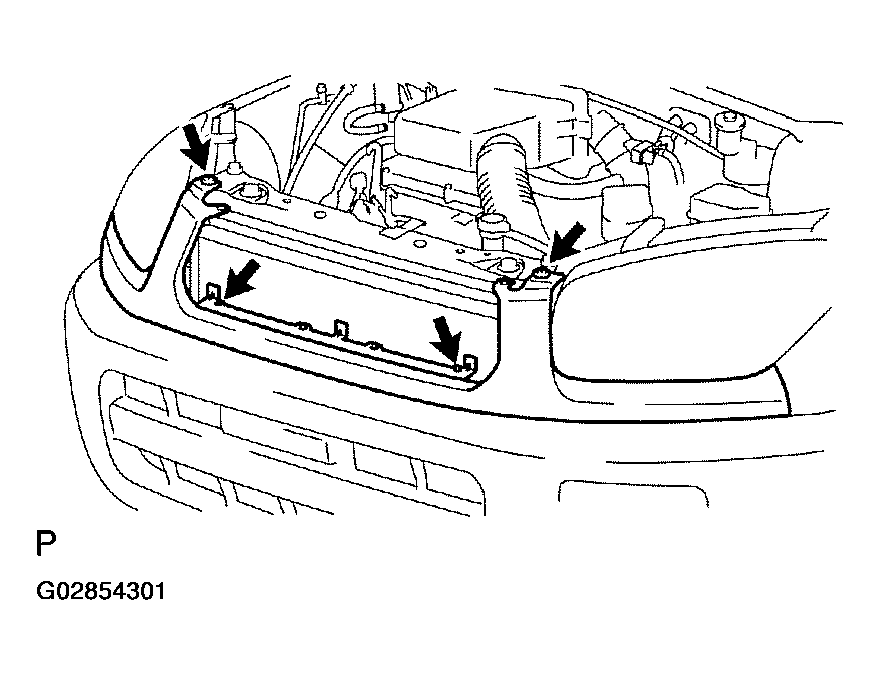

    Fig 2: Removing Front End Panel
    G02854301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT HOOD LOCK
    1. Remove the 3 bolts, and disconnect the hood lock.

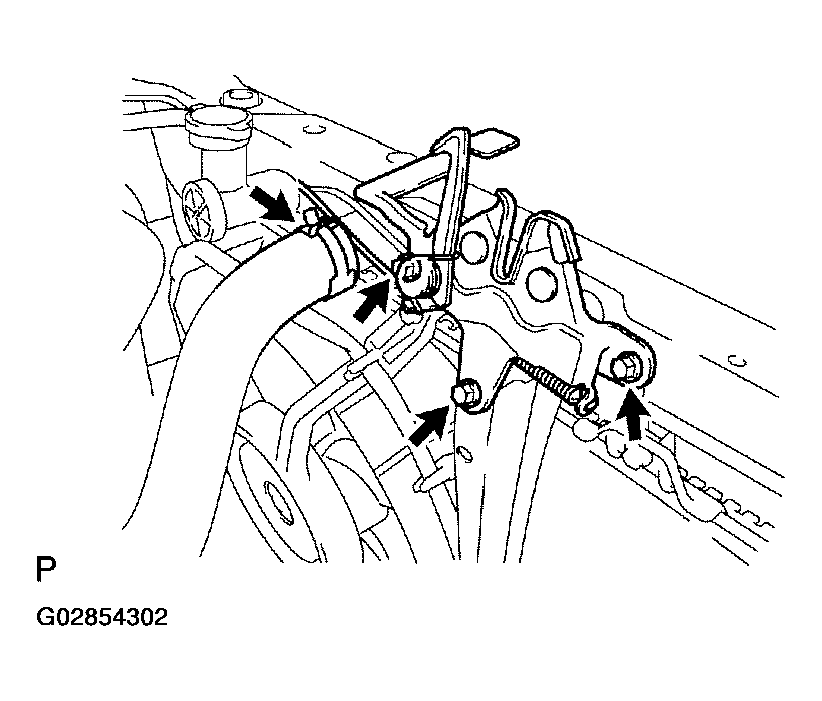

      Fig 3: Disconnecting Hood Lock
      G02854302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire from the clamp.
  5. DISCONNECT UPPER RADIATOR HOSE
  6. REMOVE UPPER RADIATOR SUPPORT

    Remove the 5 bolts and radiator support.

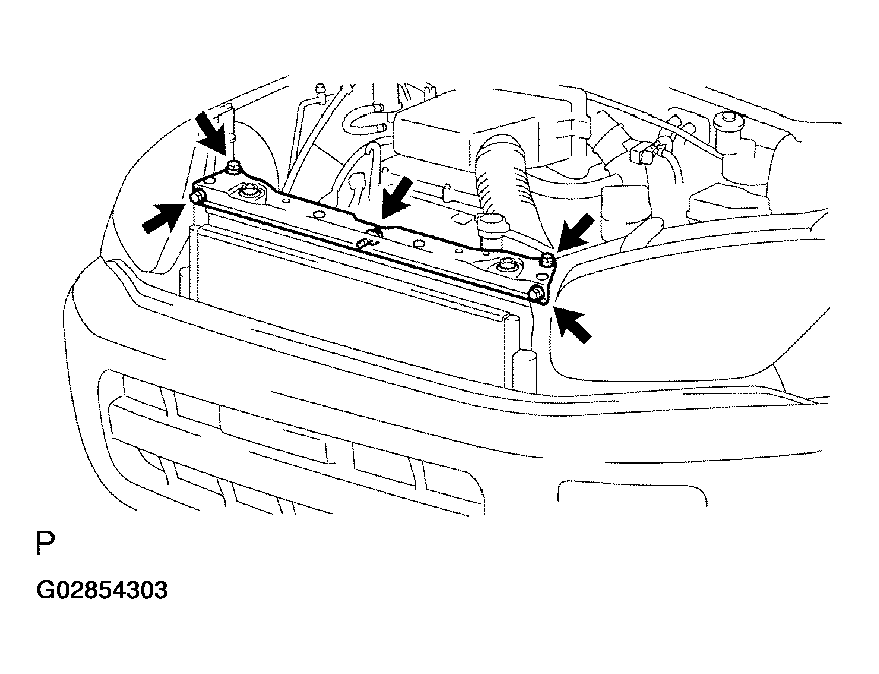

    Fig 4: Removing Radiator Supports
    G02854303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LH ENGINE UNDER COVER
  8. REMOVE RADIATOR RESERVOIR
  9. REMOVE NO. 1 AND NO. 2 COOLING FANS (See page  ELECTRIC COOLING FANS  )
  10. A/T:
    1. DISCONNECT OIL 2 HOSES

    Disconnect the 2 oil cooler hoses from the radiator.

  11. DISCONNECT ECT SWITCH CONNECTOR
  12. DISCONNECT LOWER RADIATOR HOSE
  13. REMOVE RADIATOR
  14. REMOVE UPPER AND LOWER RADIATOR SUPPORTS FROM RADIATOR
