Terminals Of Ecu

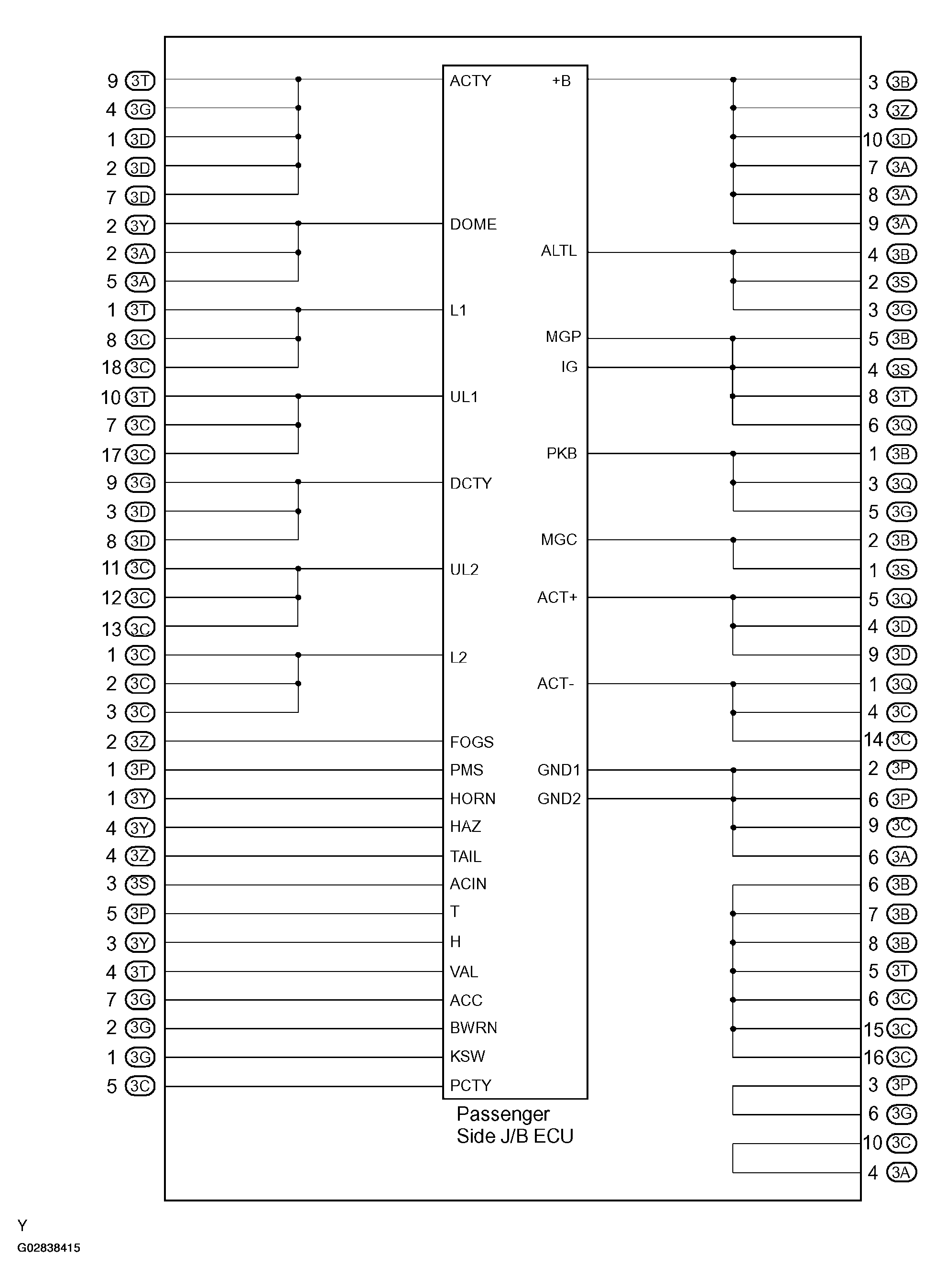

Fig 1: Identifying Terminals Of ECU (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

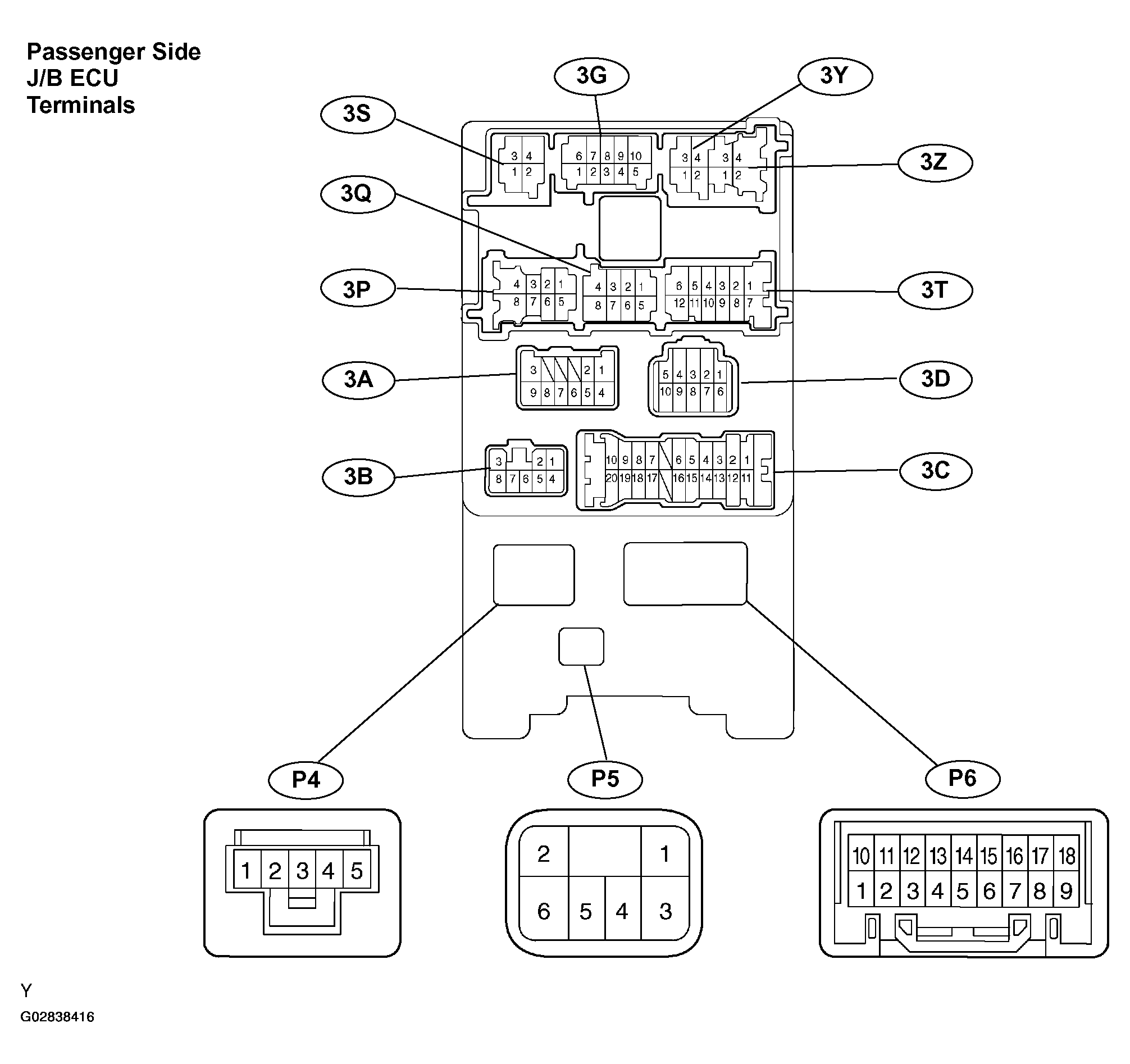

Fig 2: Identifying Terminals Of ECU (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

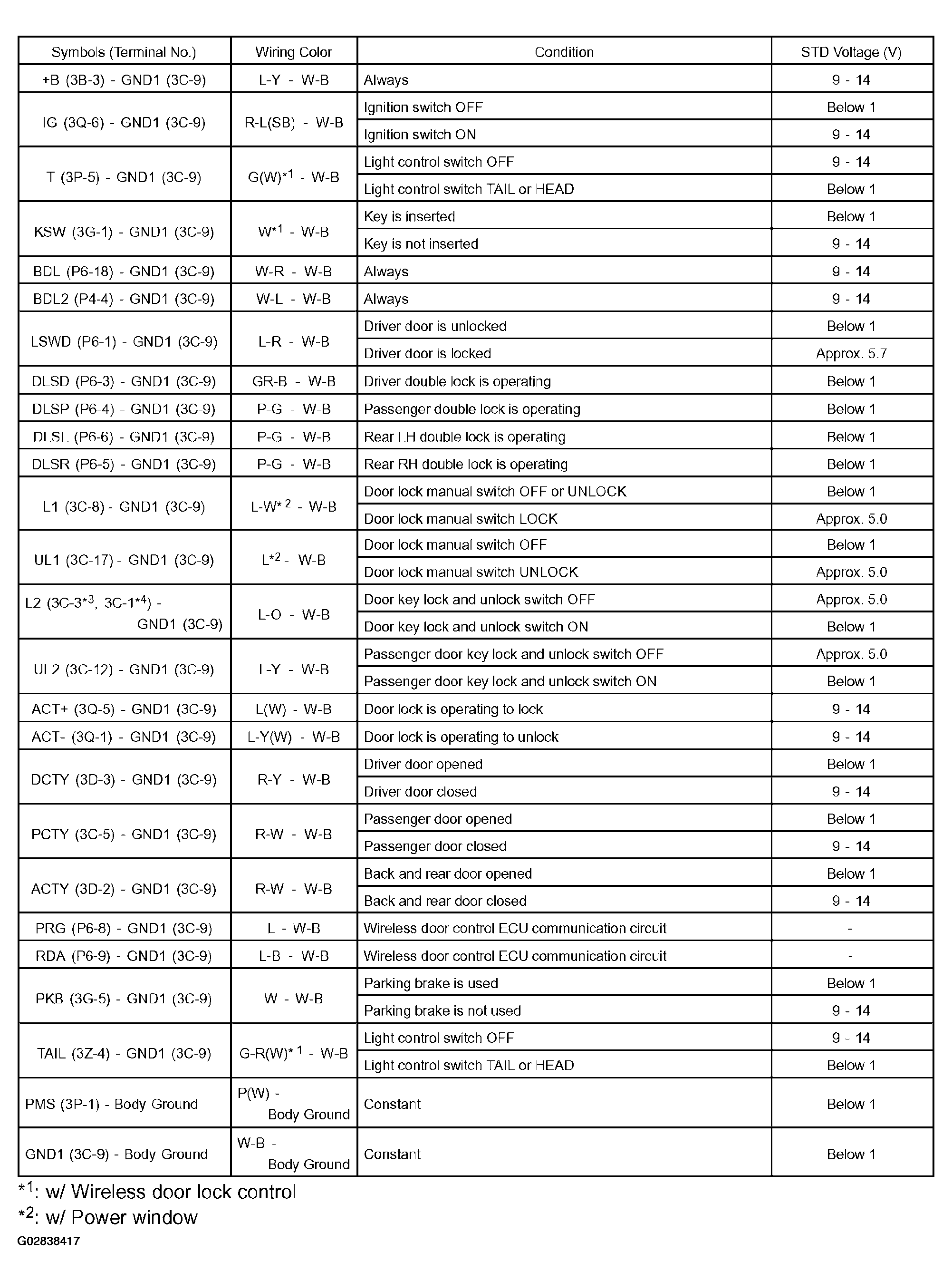

Fig 3: ECU Terminals Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

^*1 : w/ Wireless door lock control

^*2 : w/ Power window
