Ignition Switch Power Source Circuit: Wiring Diagram

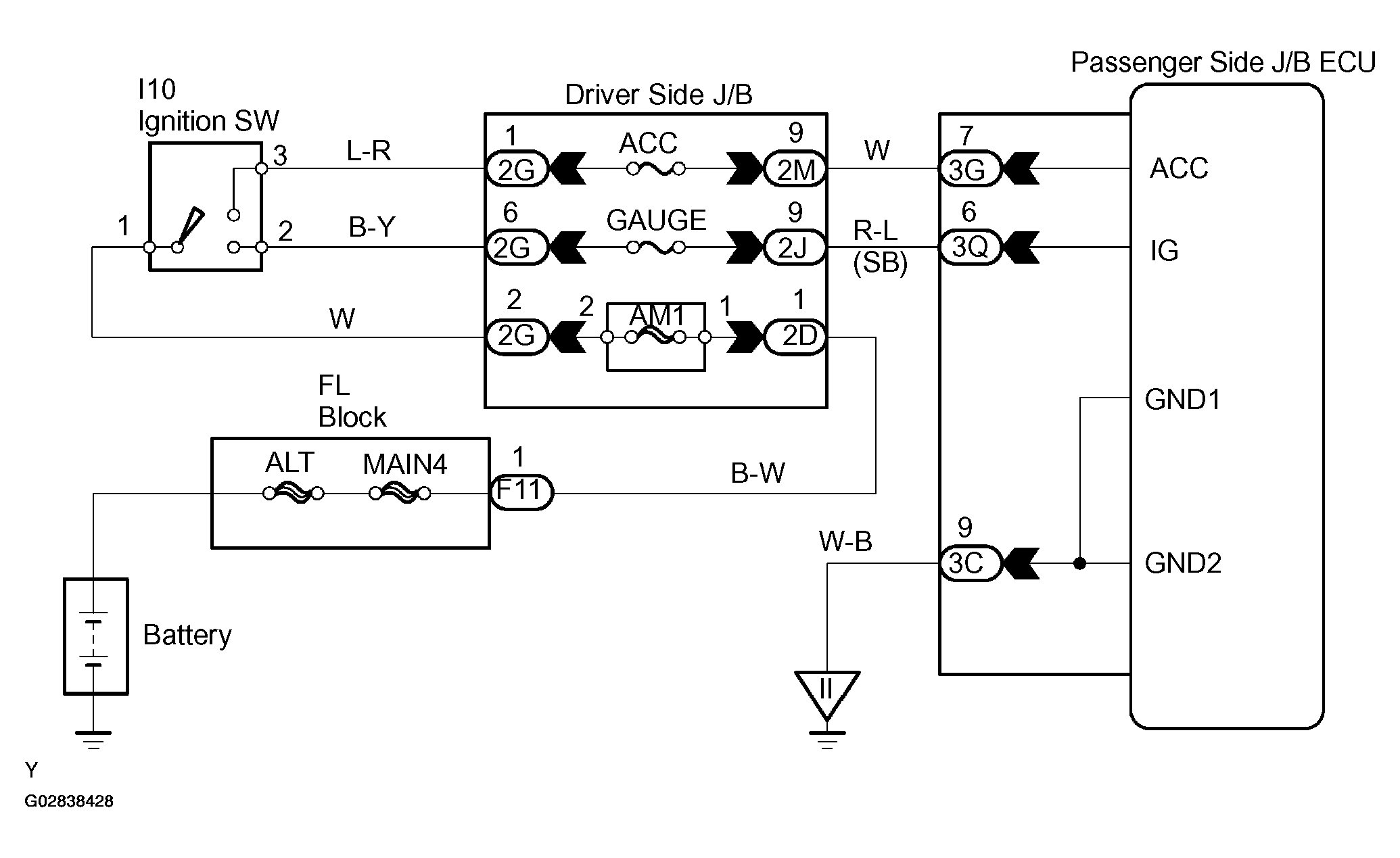

Fig 1: Wiring Diagram - Ignition Switch Power Source Circuit

G02838428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
