Power Steering Vane Pump: Installation

INSTALL PS VANE PUMP ASSEMBLY
1. Insert the mounting bolt A to the PS vane pump assembly.
2. Set the PS vane pump assembly in installation position.
3. Using SST, install and torque the PS vane pump assembly mounting bolts.

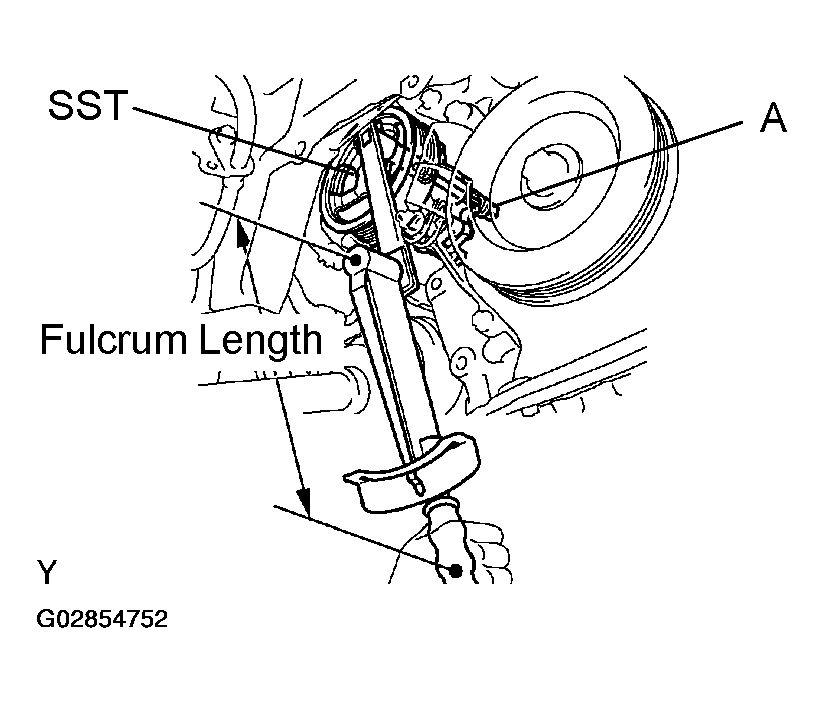

  Fig 1: Installing PS Vane Pump Assembly Mounting Bolts Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. SST 09248-63010
  2. Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)
NOTE: Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).
CONNECT OIL PRESSURE SWITCH CONNECTOR
NOTE: Be careful to prevent oil from being attached to the connector.
CONNECT PRESSURE FEED TUBE
Connect the pressure feed tube with the union bolt and new gasket.

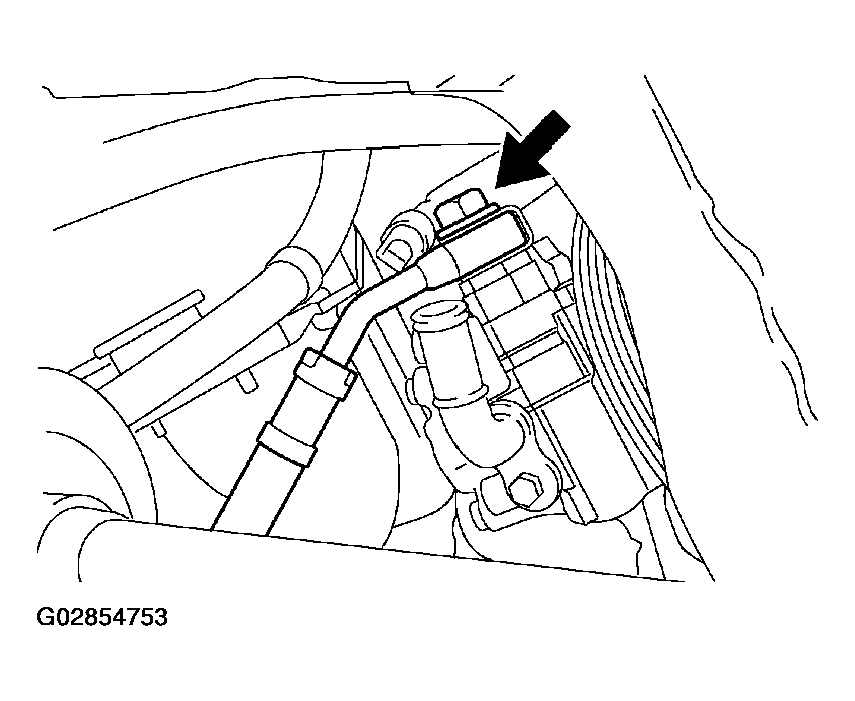

Fig 2: Identifying Pressure Feed Tube With Union Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Torque: 51.5 N.m (525 kgf.cm, 38 ft.lbf)
CONNECT SUCTION HOSE
Connect the suction hose with the clip.
INSTALL DRIVE BELT
Hook SST on the hexagonal portion of the drive belt tensioner bracket and slowly compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and install the drive belt.

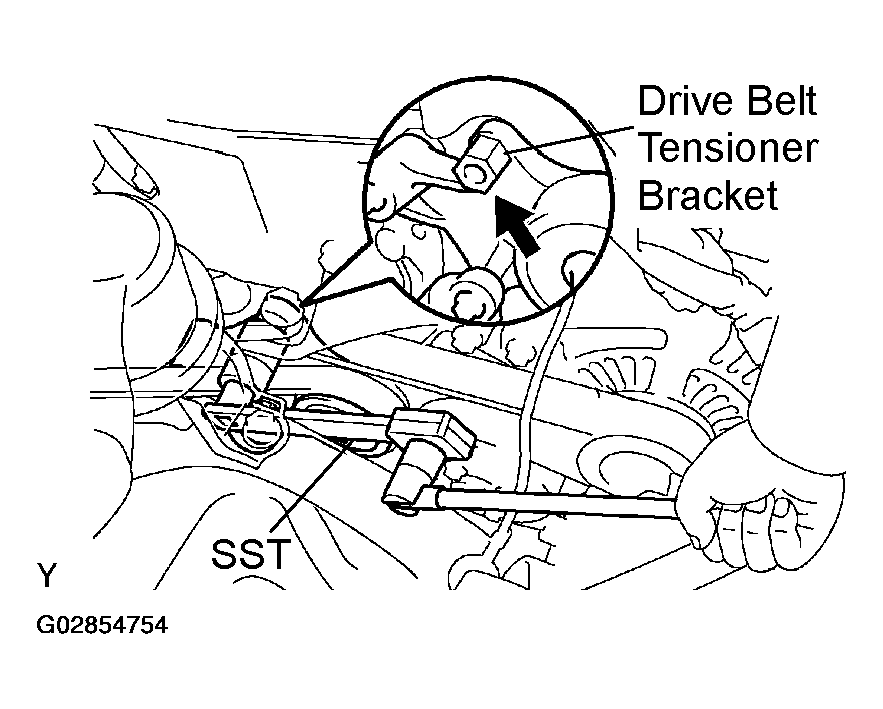

Fig 3: Installing SST On Hexagonal Portion Of Drive Belt Tensioner Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. SST 09249-63010
NOTE: Compress the drive belt tensioner by taking 3 seconds or more and installed the drive belt.
INSTALL RH ENGINE UNDER COVER
BLEED POWER STEERING SYSTEM (See BLEEDING )
