Joint Angle: Adjustment

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When doing operations which involve the removal and installation of the propeller shaft, always check the joint. Make adjustments if necessary.

STABILIZE PROPELLER SHAFT AND DIFFERENTIAL

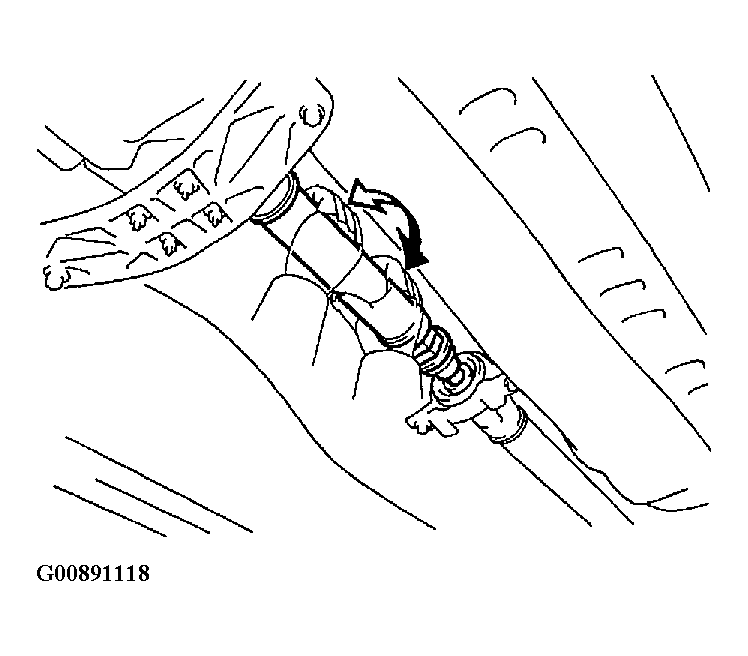

1. Turn the propeller shaft several times by hand to stabilize the center support bearing.

  Fig 1: Stabilizing Center Support Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

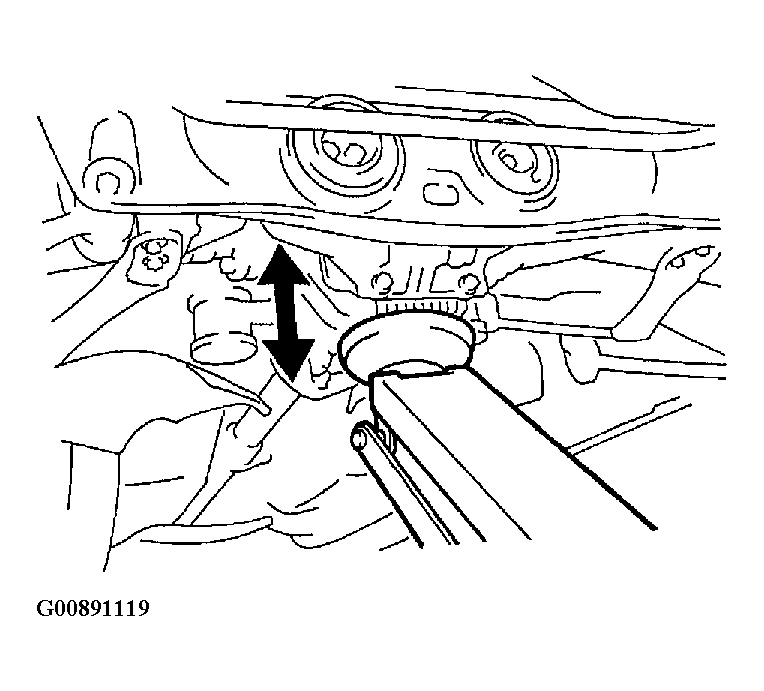

2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.

  Fig 2: Stabilizing Differential Mounting Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK JOINT ANGLE OF NO. 2 JOINT AND NO. 3 JOINT
1. Using SST, measure the installation angle of the intermediate shaft and propeller shaft.
  1. SST 09370-50010

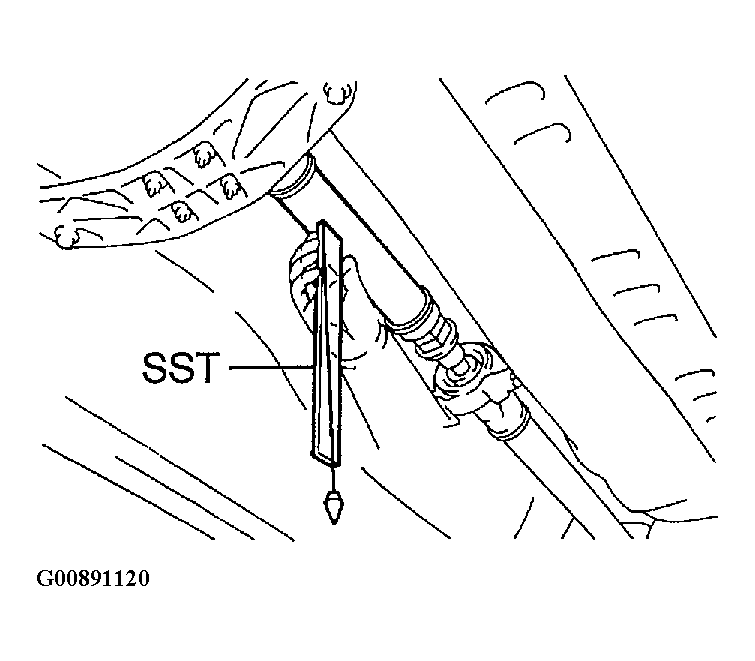

  Fig 3: Measuring Installation Angle Of Intermediate Shaft & Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, measure the installation angle of the differential.
  1. SST 09370-50010
  HINT:

  Measure the installation angle by placing the SST in the position, as shown in Fig 4 .

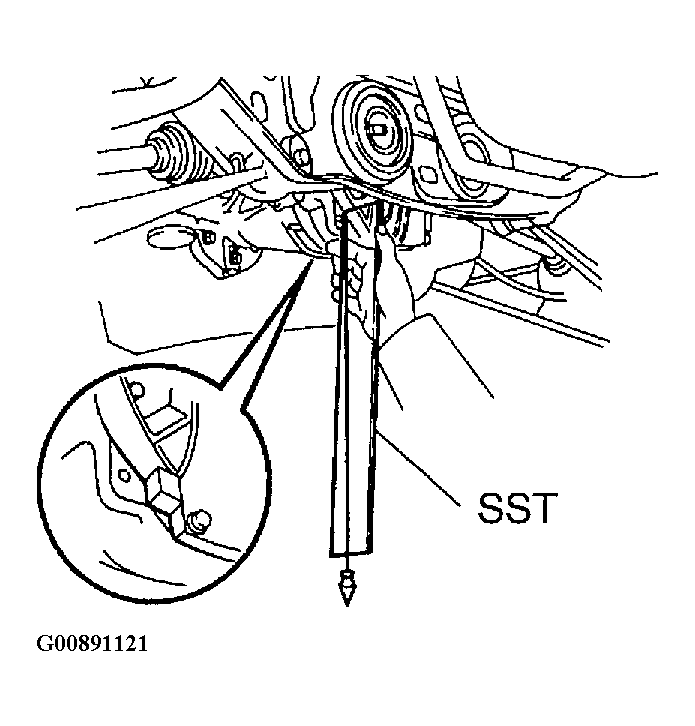

  Fig 4: Measuring Installation Angle Of Differential
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Calculate the No. 2 joint angle.
  1. No. 2 joint angle: A - B = -1° 21' +/- 30'
  2. A: Intermediate shaft installation angle
  3. B: Propeller shaft installation angle
4. Calculate the No. 3 joint angle.
  1. No. 3 joint angle: B - C = 2° 18' +/- 30'
  2. B: Propeller shaft installation angle
  3. C: Differential installation angle

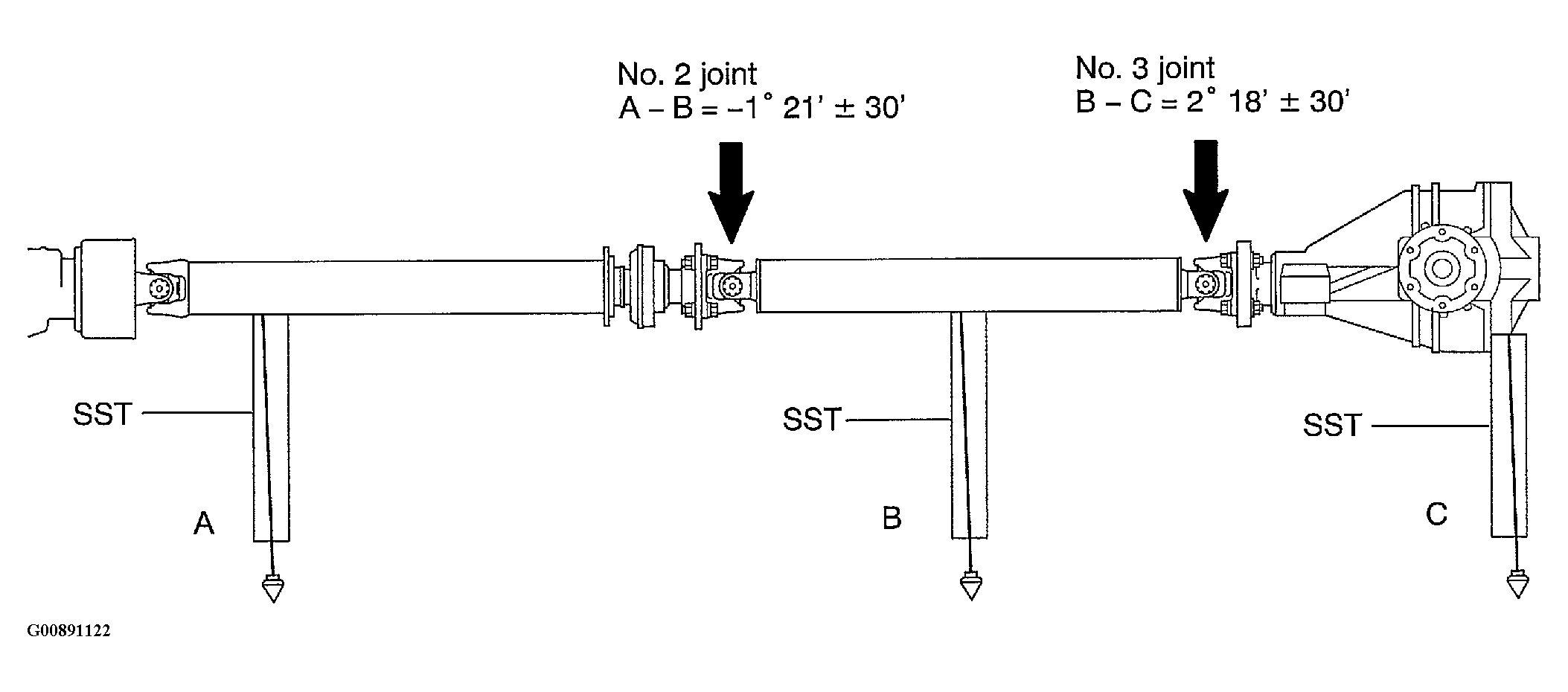

Fig 5: Identifying Joint Angle Of Propeller Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the measured angle is not within the specification, adjust it with the center support bearing adjusting washer and differential adjusting shim.

Center support bearing adjusting washer thickness:

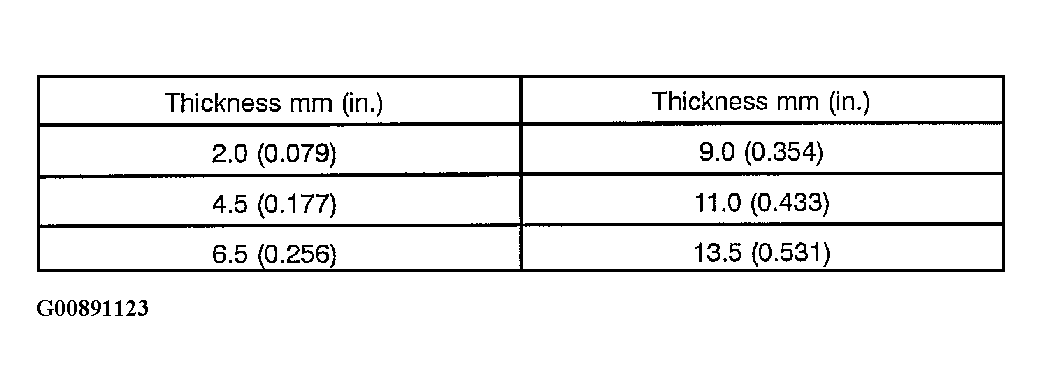

Fig 6: Center Support Bearing Adjusting Washer Thickness Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Left and right washers should be the same thickness.
- 2 washers should not be assembled together.
- Some vehicles are not assembled with washers.
