On-Vehicle Inspection

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TURN SIGNAL FLASHER CIRCUIT
1. Disconnect the connector from the turn signal flasher and inspect the connector on wire harness side as shown in the chart.

  Fig 1: Identifying Turn Signal Flasher Circuit Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

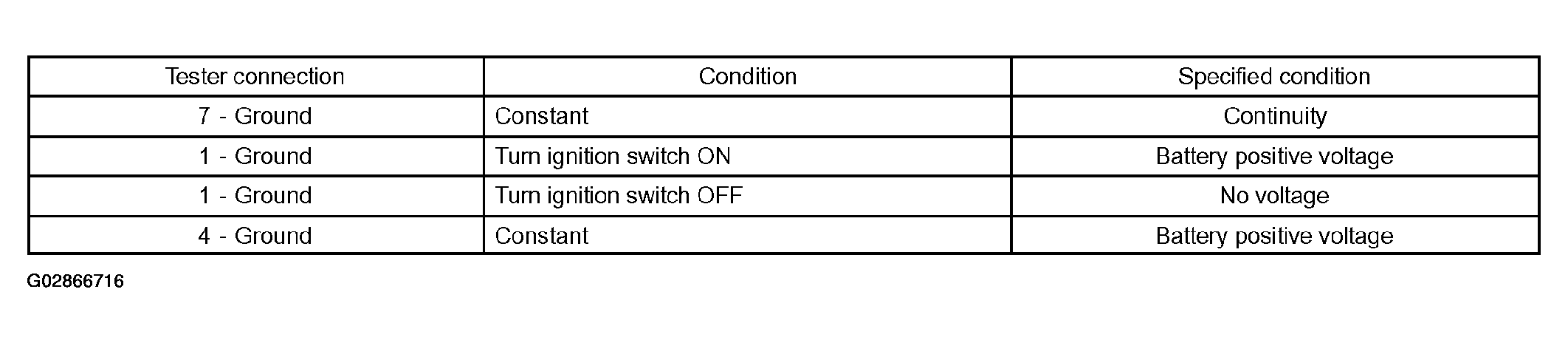

  Fig 2: Turn Signal Flasher Circuit Terminals Specified Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector to the turn signal flasher and inspect the wire harness side connector from the back side as shown in the chart.
  Standard:

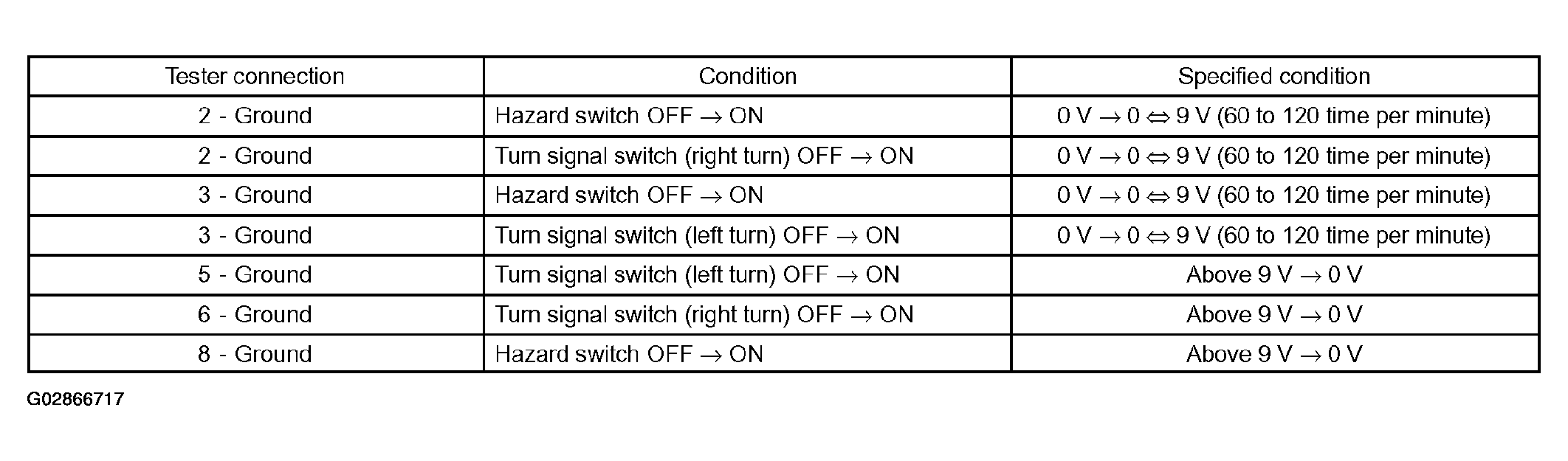

  Fig 3: Turn Signal Flasher Circuit Terminals Specified Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DAYTIME RUNNING LIGHT MAIN RELAY CIRCUIT
1. Disconnect the connector from the relay and inspect the connector on the wire harness side.

  Fig 4: Identifying Daytime Running Light Main Relay Circuit Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

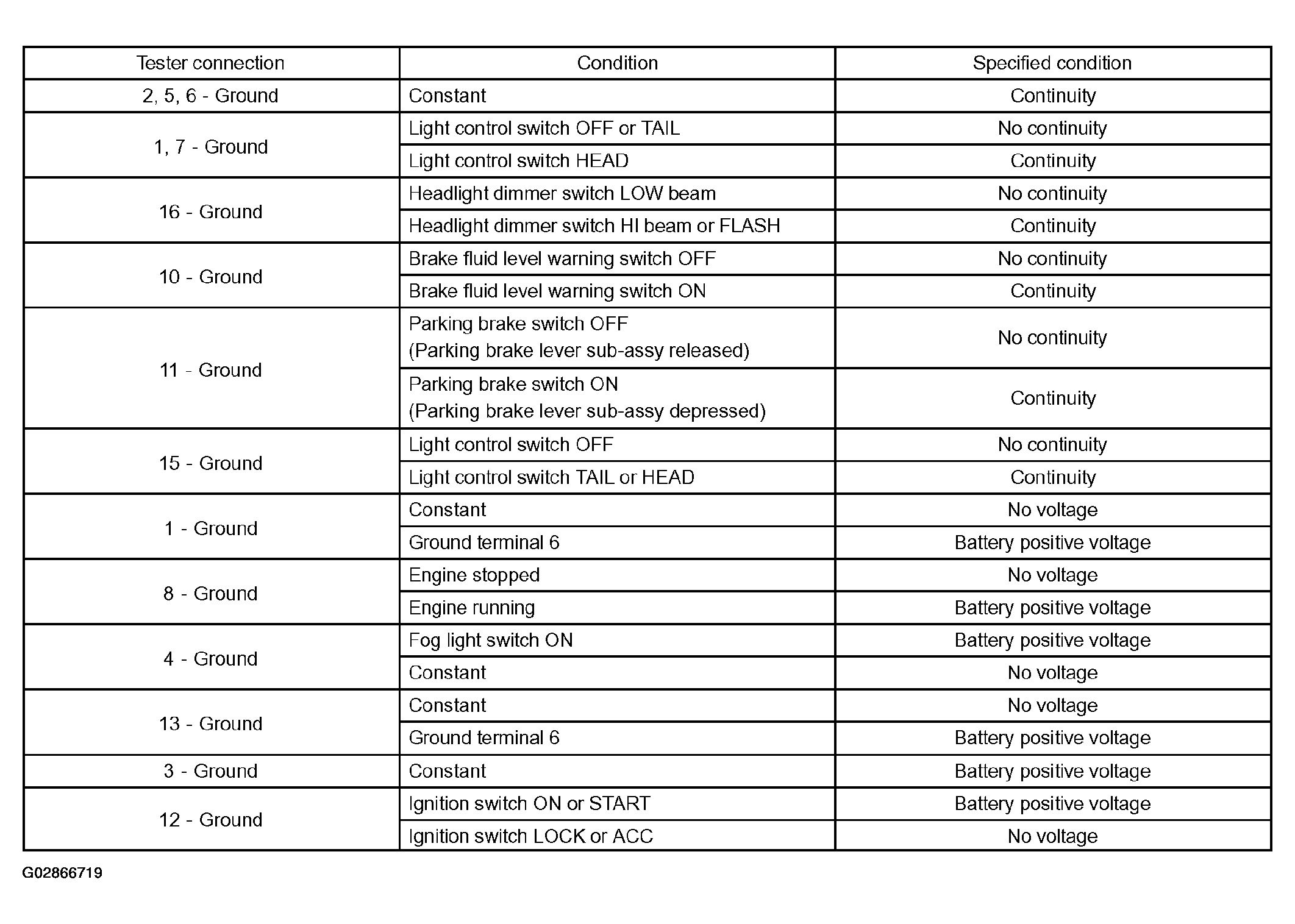

  Fig 5: Daytime Running Light Main Relay Circuit Continuity Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If circuit is specified, try replacing the relay with a new one.

  If circuit is not as specified, inspect the circuits connected to other parts.
ILLUMINATED ENTRY SYSTEM OPERATION CHECK
NOTE: The lights that is lit in the illuminated entry system are room lamp assy No. 1 (center and rear) and key cylinder lamp.
1. Turn the ignition switch to OFF, close all the doors, and set the driver side door in the lock condition.
2. Unlock the driver side door and open any door, and check that the lights go on. Close the door and check that the lights go off in about 15 seconds.
3. Turn the ignition switch to ON and open and close any door. Check that the light goes off immediately.
4. Turn the ignition switch to OFF.
5. Open and close any door to turn on the lights. Before the lights go off in about 15 seconds, turn the ignition switch to ON. Check that the lights go off immediately.
6. Turn the ignition switch to OFF.
7. Open and close any door to turn on the lights. Before the lights go off in about 15 seconds, lock the driver side door. Check that the lights go off immediately.
