Confirmation Engine Racing Pattern

For confirmation engine racing pattern, See Fig 1.

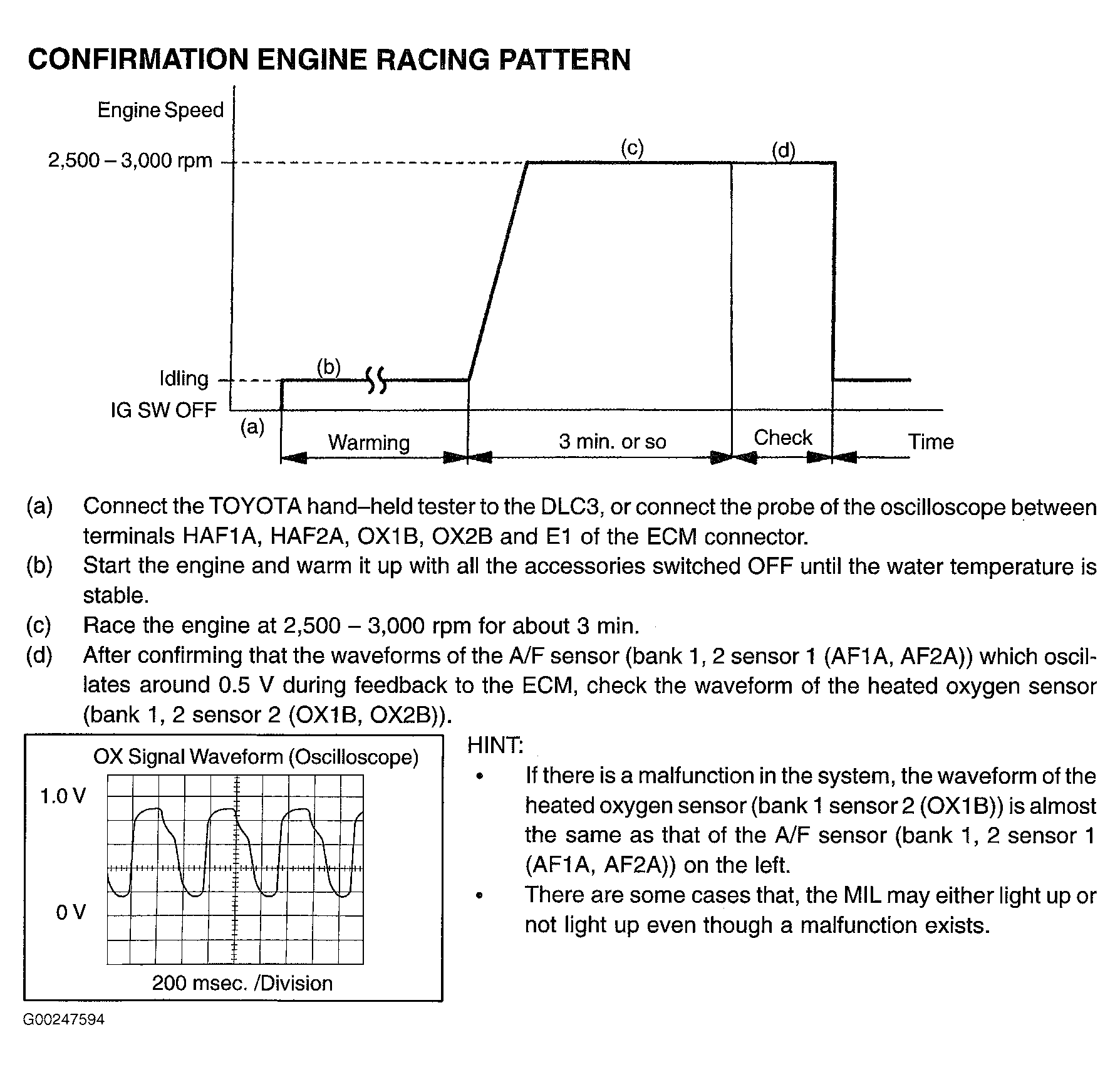

Fig 1: Confirmation Engine Racing Pattern
G00247594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
