Problem Symptoms Table
>>
Interior Light System
Interior Light System

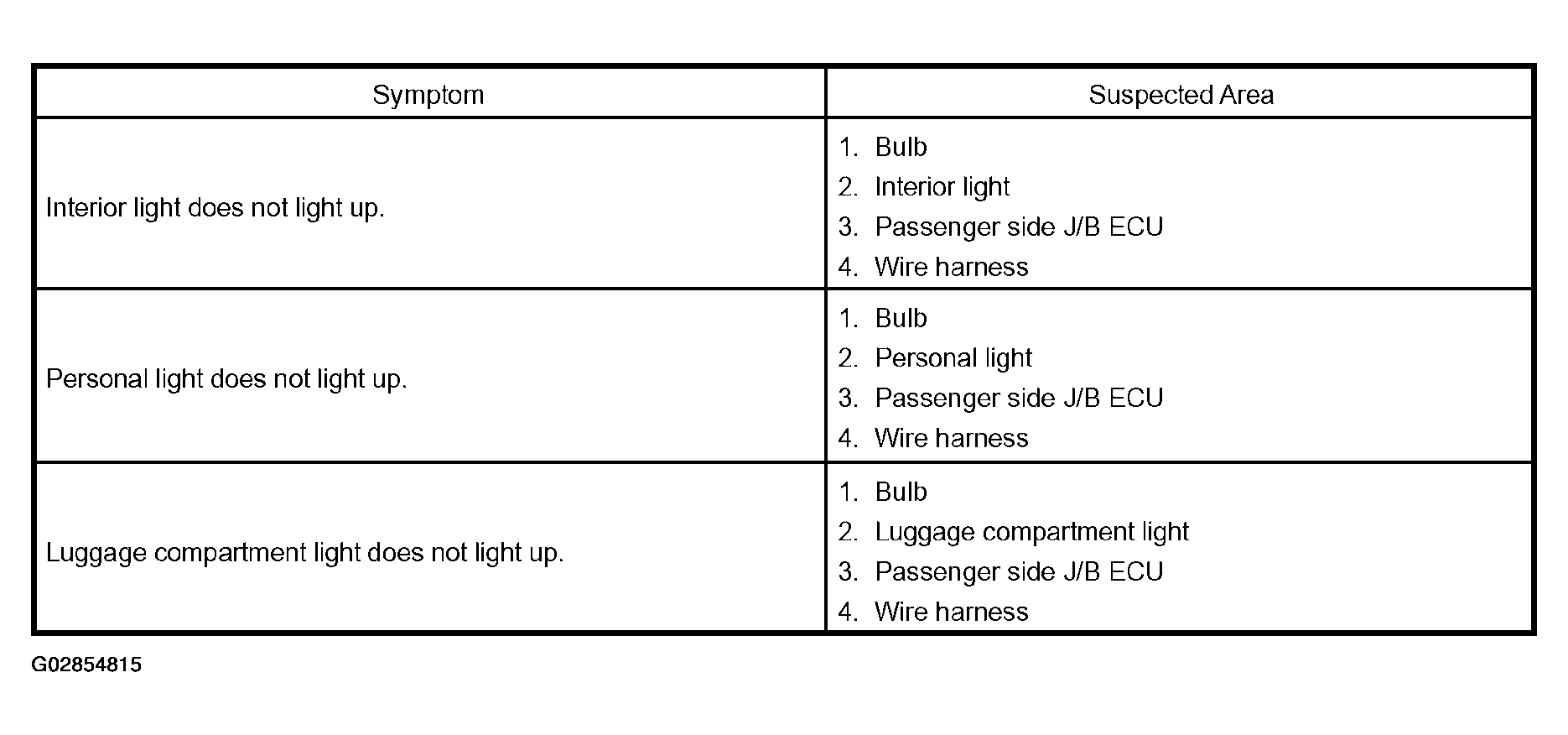

Fig 1: Interior Light System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
