Diagnostic Procedure

For wiring diagram, see Fig 1. For testing procedures, see Fig 2 and Fig 3 .

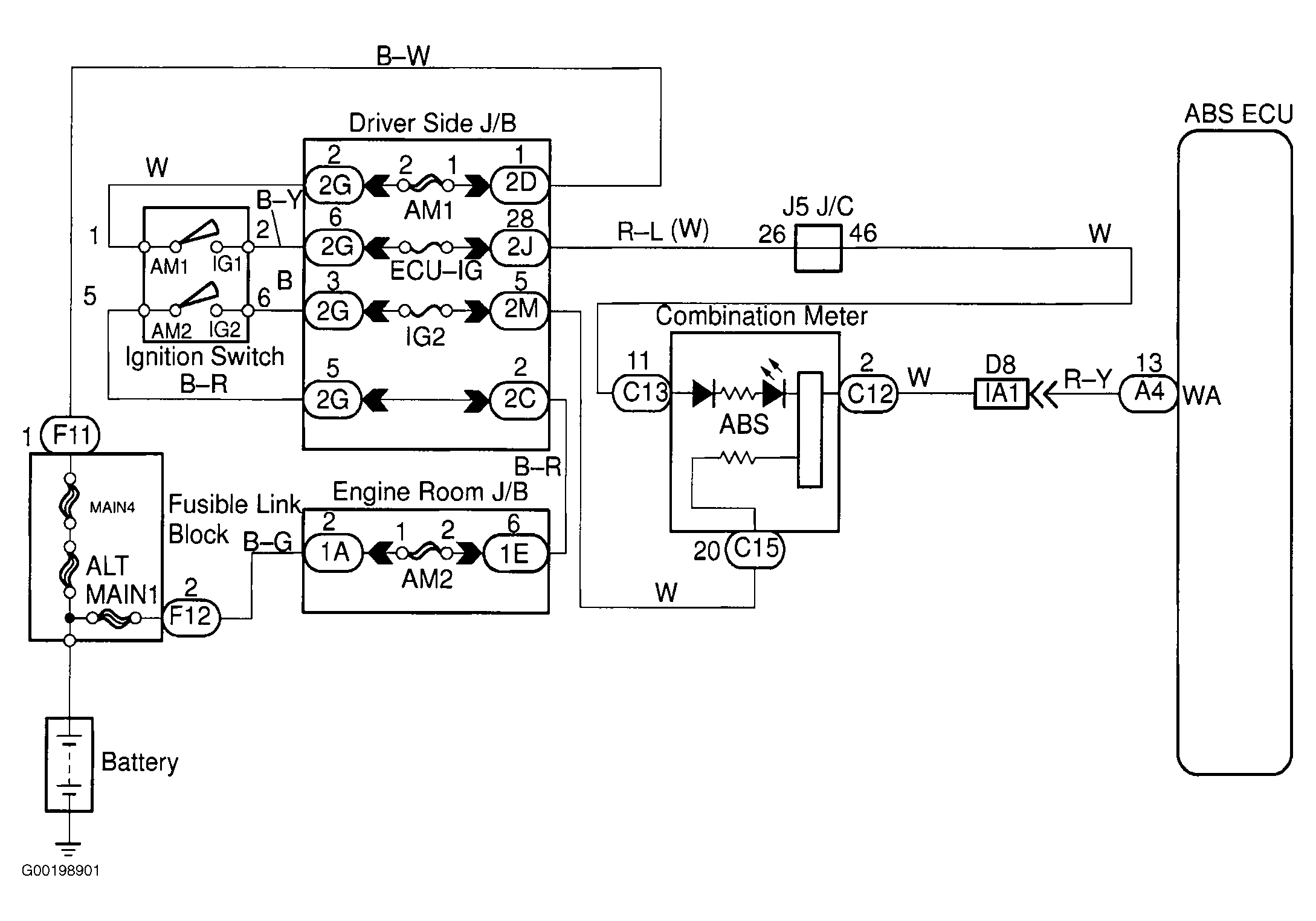

Fig 1: ABS Warning Light Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

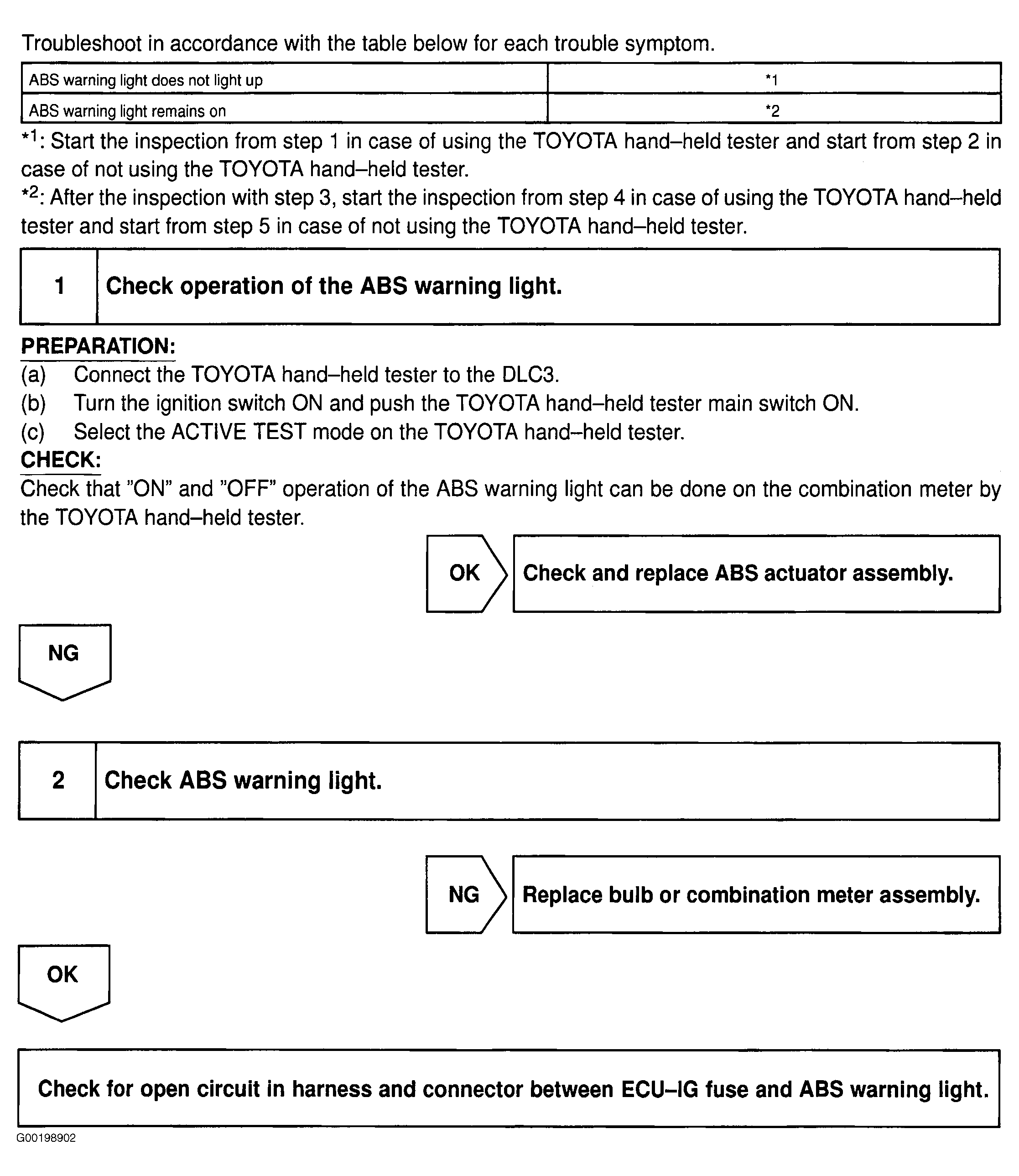

Fig 2: ABS Warning Light Testing Procedures (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

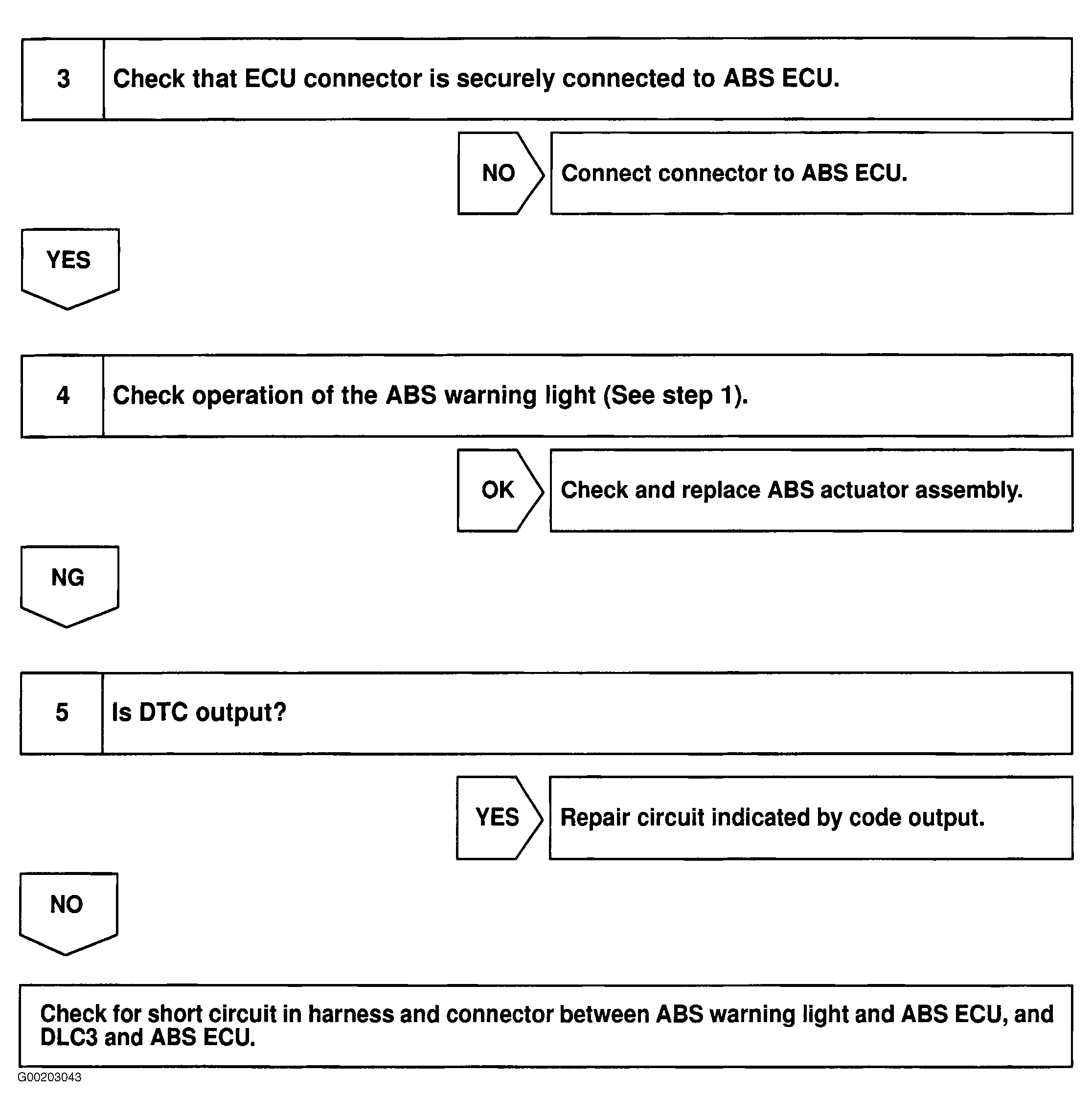

Fig 3: ABS Warning Light Testing Procedures (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
