Back Door: Adjustment

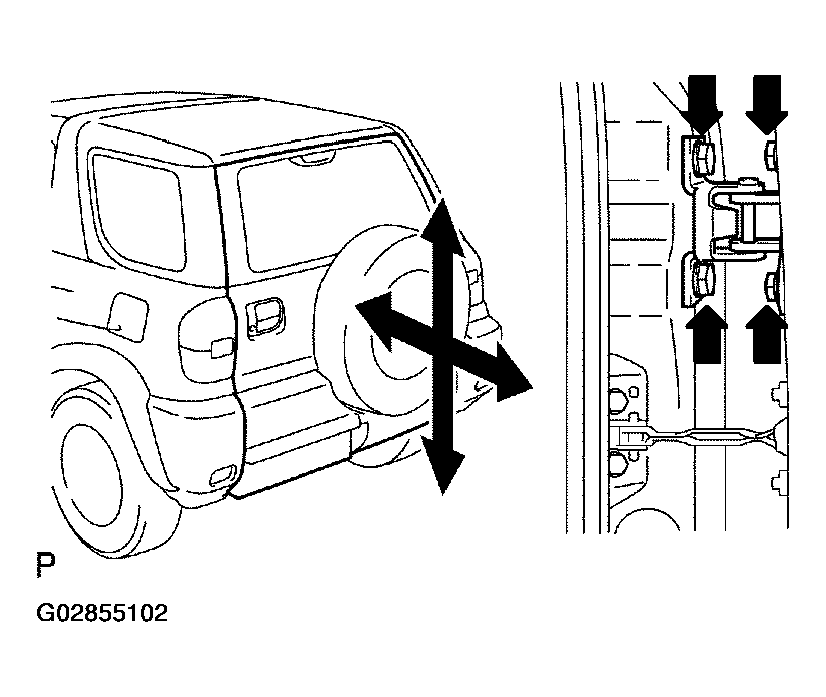

Fig 1: Adjusting Door In Forward/Rearward & Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Adjust the door by slightly loosening the hinge nuts on the body side.

1. Torque:
2. Door side: 36 N.m (365 kgf.cm, 27 ft.lbf)
3. Body side: 26 N.m (265 kgf.cm, 19 ft.lbf)

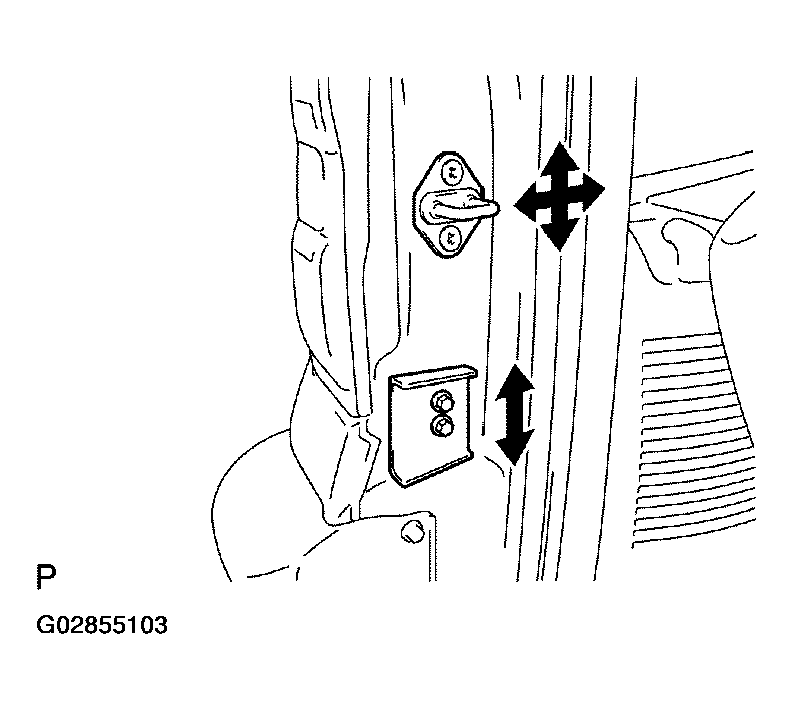

Fig 2: Adjusting Door Lock Striker

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosen the striker mounting screws. Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)
2. Using a plastic hammer, tap the striker to adjust it.
