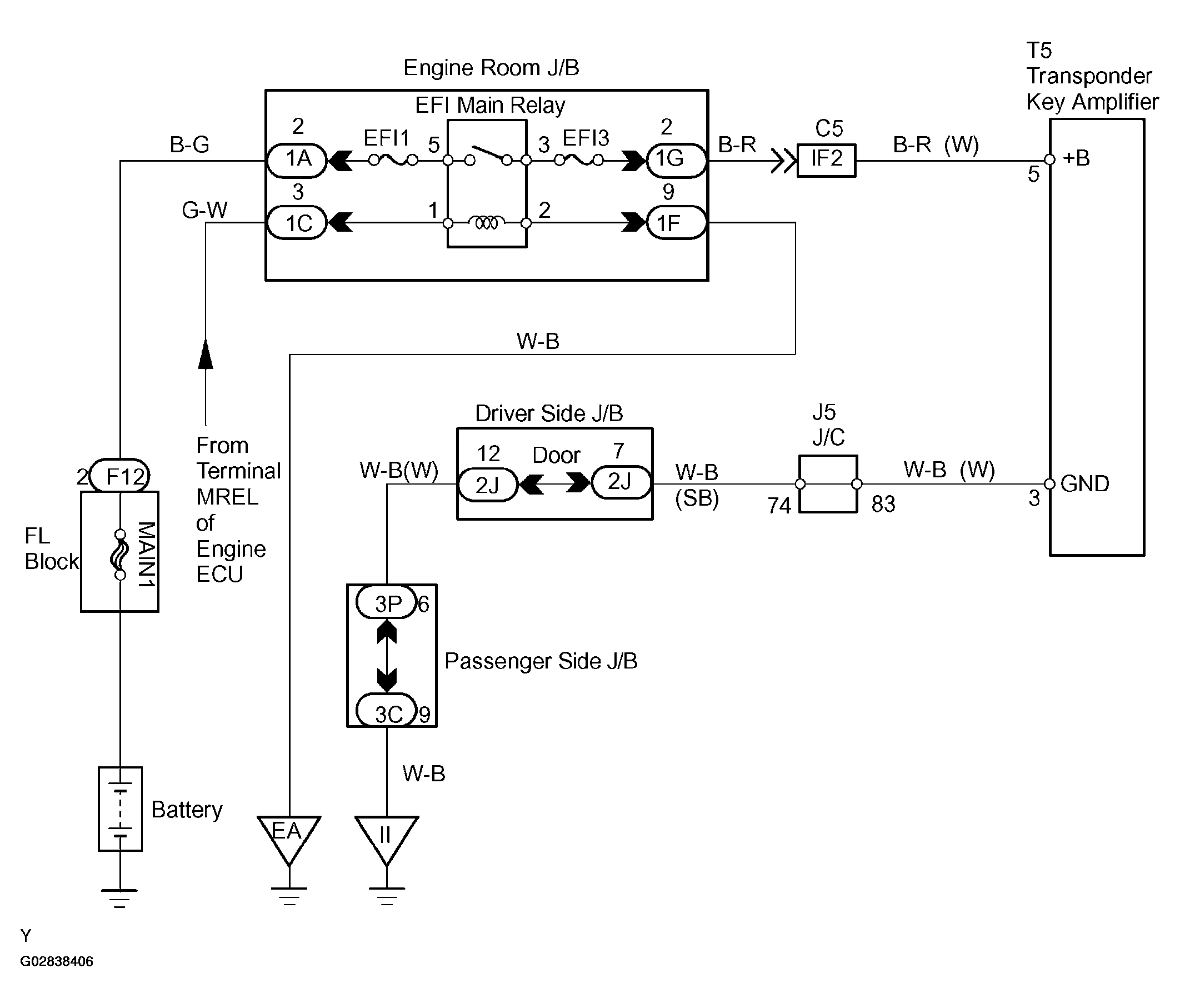

Home >> Toyota >> 2003 >> RAV4 Base, AWD, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Engine Immobilizer System - Diagnostics >> Circuit Inspection >> Power Source Circuit >> Wiring Diagram
