Terminals Of ECM

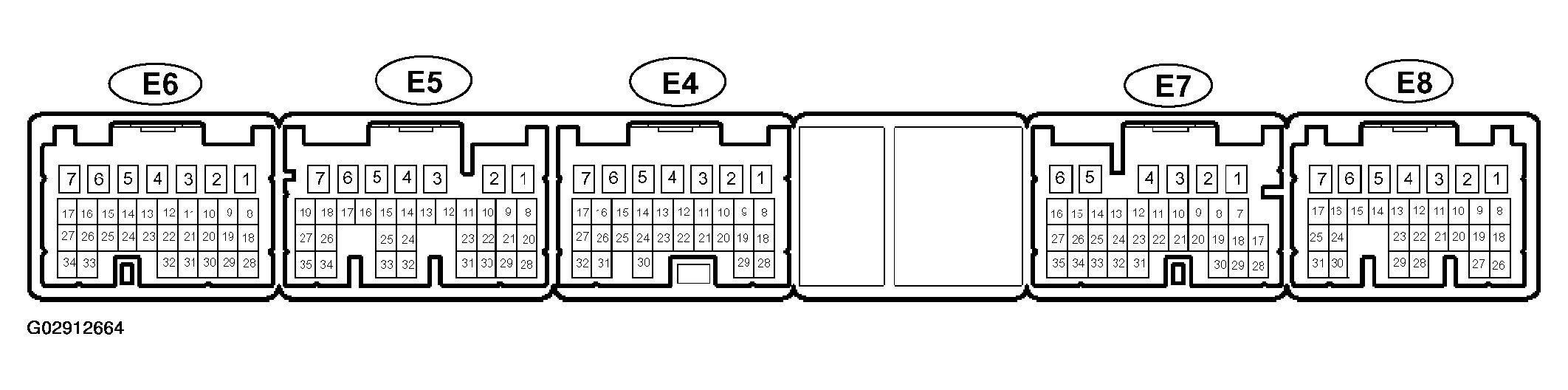

Fig 1: Identifying ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Next, use the column "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown in the column "Specified Condition".

It is useful to refer to the illustration above to confirm the location of ECM terminals.

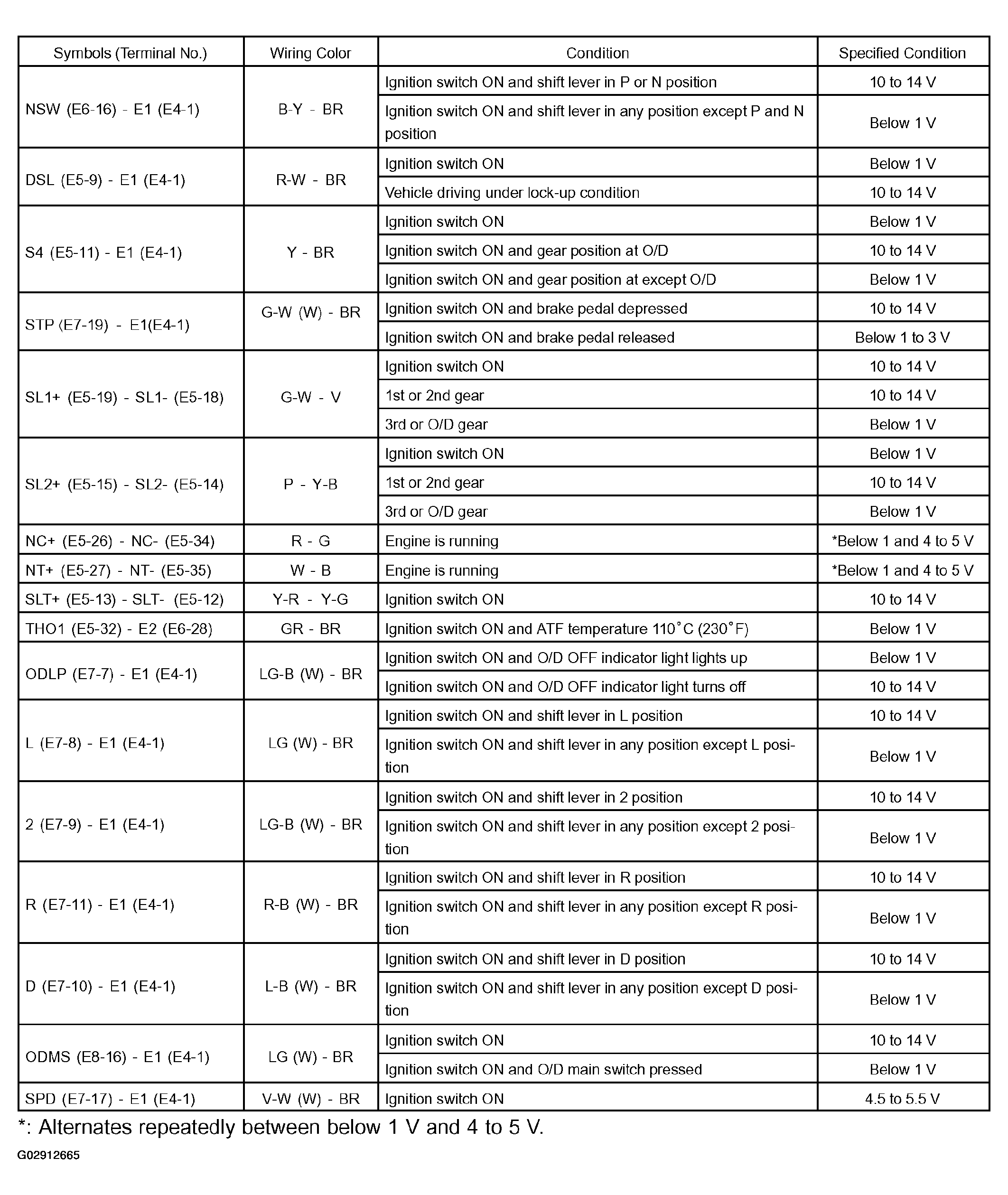

Fig 2: ECM Connector Terminals Specified Condition Table
