Diagnostic Trouble Code Chart

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the applicable test.

HINT:

• ^*1 : MIL illuminates.
• ^*2 : means that the ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
• ^*3 : Except Mexico.
• This DTC may be output when the clutch, brake, and gear components, etc. inside the automatic transaxle are damaged.

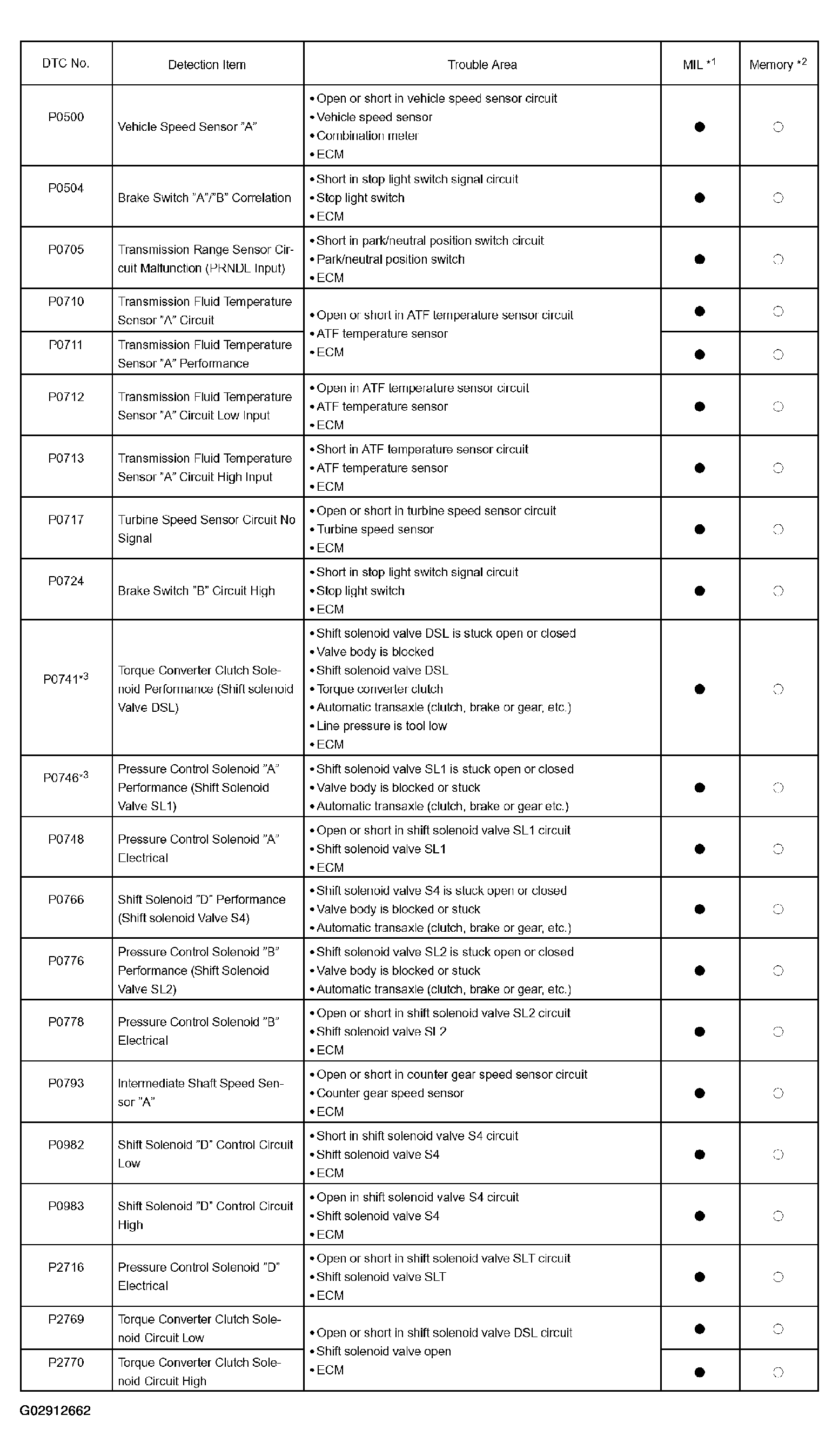

  Fig 1: DTC Trouble Detection Table

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
