Set Off

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. CLOSE BOTH HAND VALVES OF MANIFOLD GAUGE SET
  2. DISCONNECT QUICK DISCONNECT ADAPTERS FROM SERVICE VALVES ON REFRIGERANT LINE

    HINT:

    Slide the sleeve of the quick disconnect adapter upward to unlock the adapter and remove it from the service valve.

  3. INSTALL CAPS TO SERVICE VALVES ON REFRIGERANT LINES

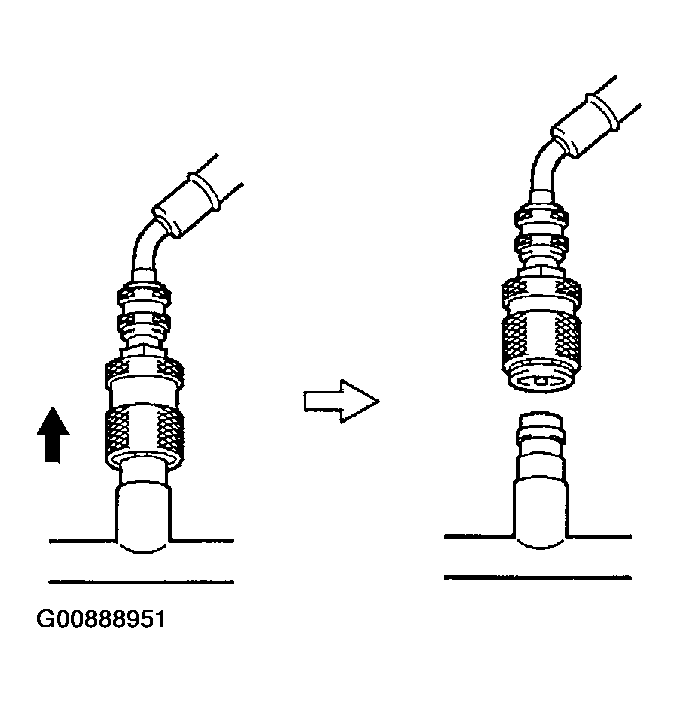

    Fig 1: Disconnecting Quick Disconnect Adapters From Service Valves On Refrigerant Line
    G00888951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
