Section 604 (Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, please refer to the following item. Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.
1. Specified amount: 600 +/- 50 g (21.16 +/- 1.76 oz.)
REMOVE AIR CLEANER DUCT AND AIR CLEANER ASSEMBLY
REMOVE ECU OUTLET DUCT
REMOVE 2 RADIATOR UPPER SUPPORTS
Remove the 2 bolts and upper supports.
DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Remove the 2 bolts and disconnect the hose and tube.
1. Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the hose and tube.

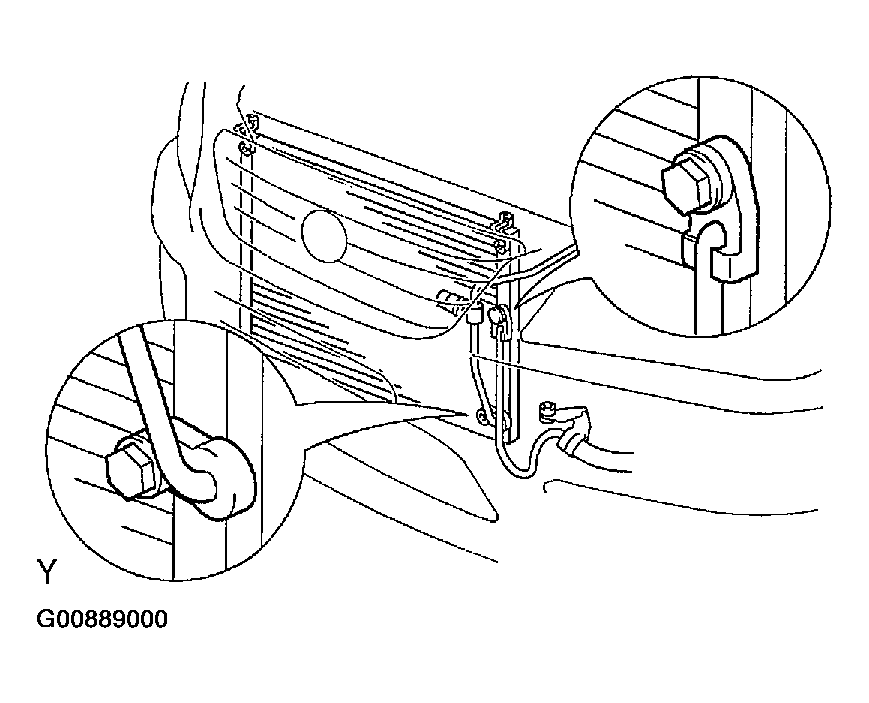

Fig 1: Disconnecting Discharge Hose & Liquid Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONDENSER
1. Remove the 4 bolts and 2 brackets.
2. Push the radiator toward engine.
3. Push the condenser toward radiator and pull it upward.
HINT:

At the time of installation, please refer to the following item.

If condenser is replaced, add compressor oil to the condenser.
1. Add 40 cc (1.4 fl. oz)
2. Compressor oil: ND - OIL 8 or equivalent

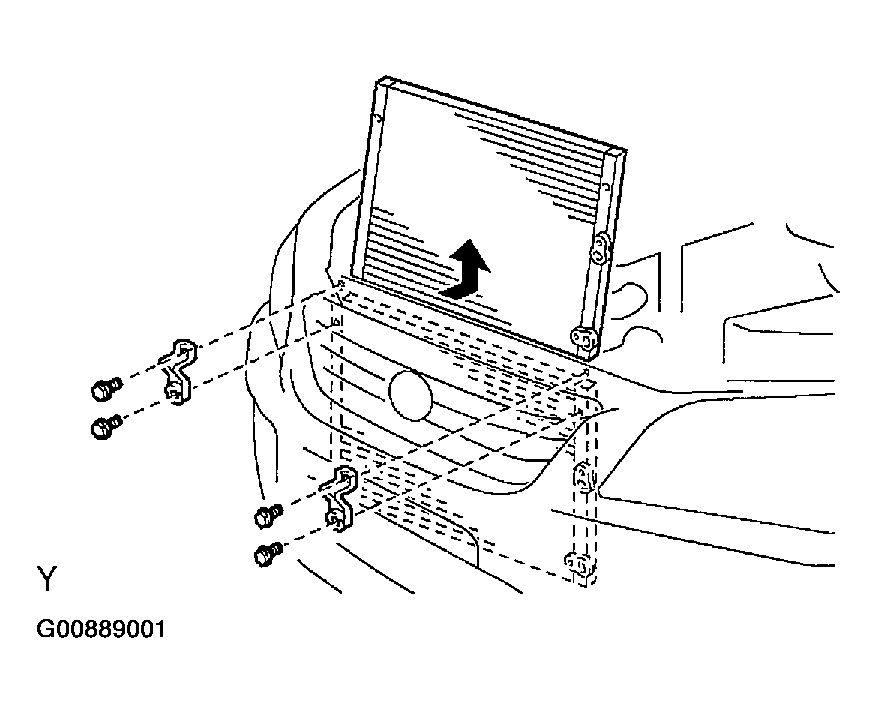

Fig 2: Removing Condenser
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
