Condenser Fan: Reassembly

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FAN MOTORS
1. Install the fan motor with the 3 screws. Install the 2 fan motors.

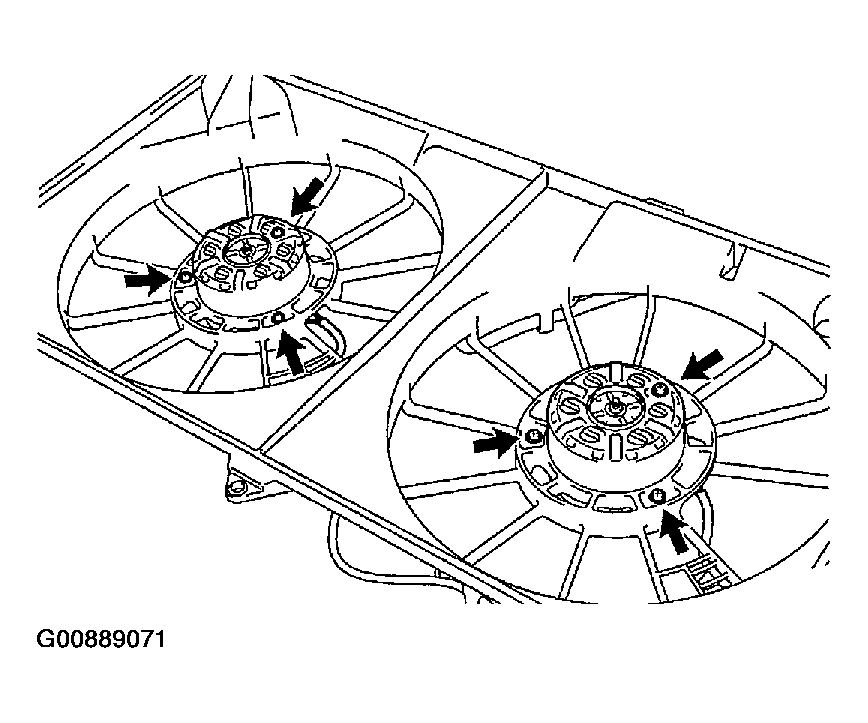

  Fig 1: Installing Fan Motors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wires and connector holders to the fan shroud as shown in Fig 2 .

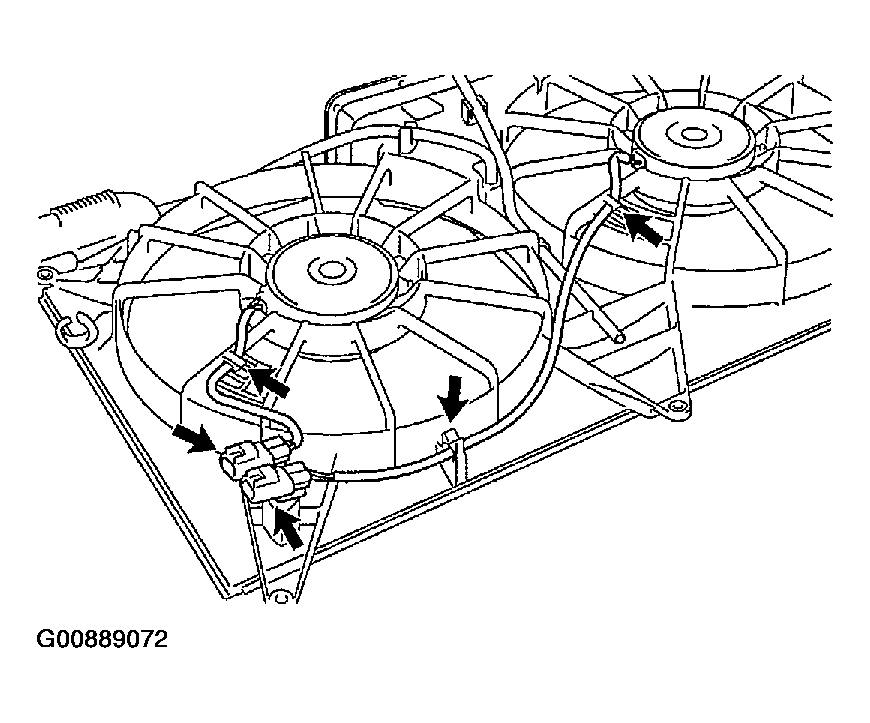

  Fig 2: Installing Wires & Connector Holders To Fan Shroud
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FANS
Install the fan with the nut. Install the 2 fans.

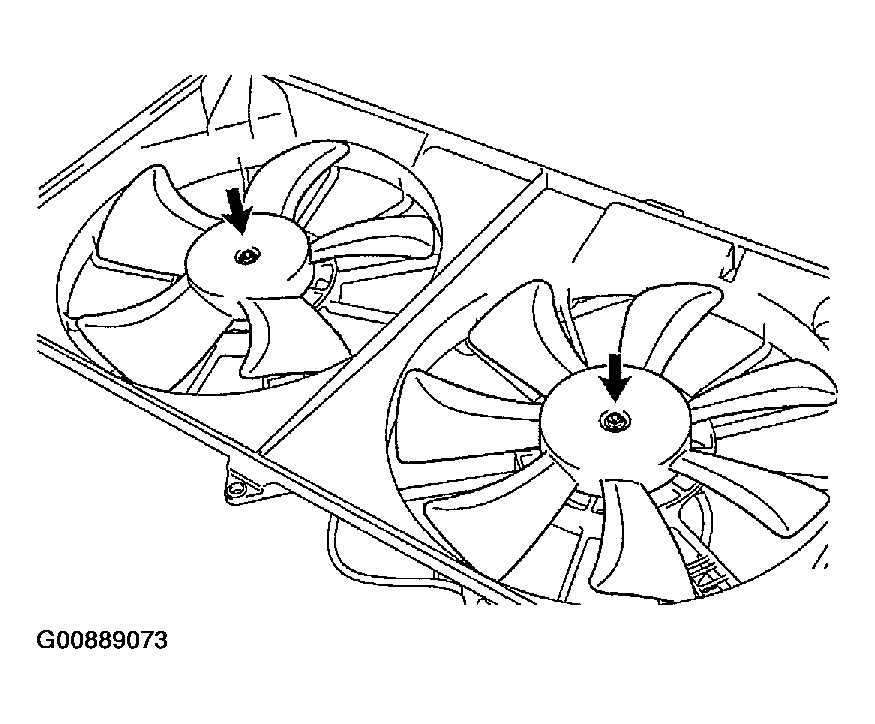

Fig 3: Installing Fans
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
