Section 516 (Hood): Adjustment

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Since the centering bolt is used as a hood hinge and hood lock set bolt, the hood and hood lock can not be adjusted with it on.

Substitute a bolt with washer for the centering bolt.

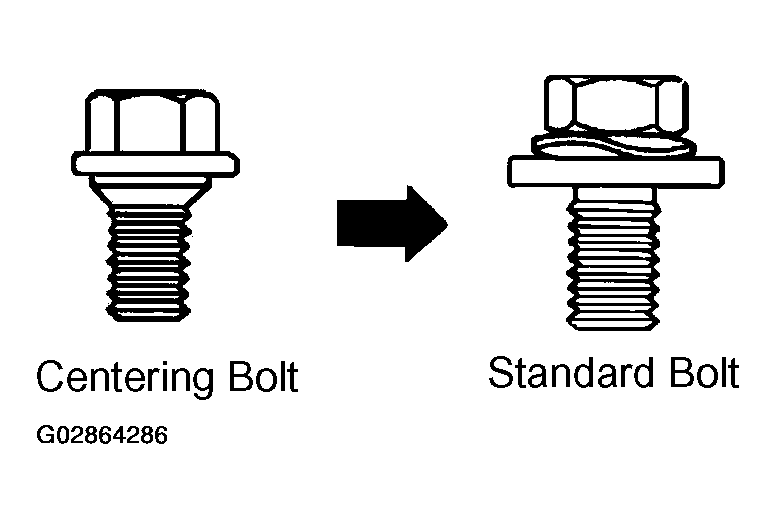

Fig 1: Identifying Centering & Standard Bolt

INSPECT HOOD SUB-ASSY

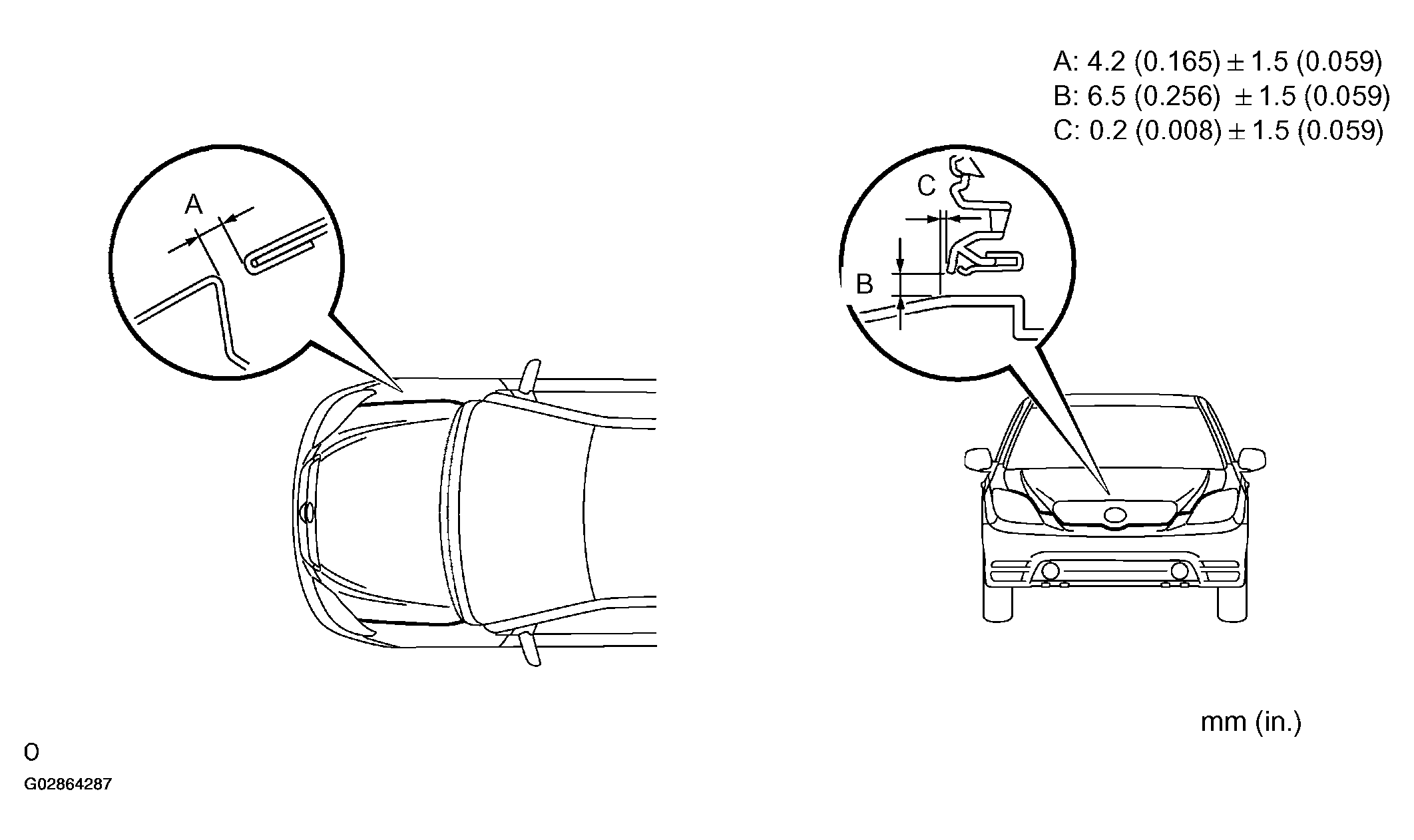

Fig 2: Inspecting Hood Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Check that the clearance is within the standard value.
ADJUST HOOD SUB-ASSY
1. Adjust the hood by loosening the hood side hinge bolts.
  Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

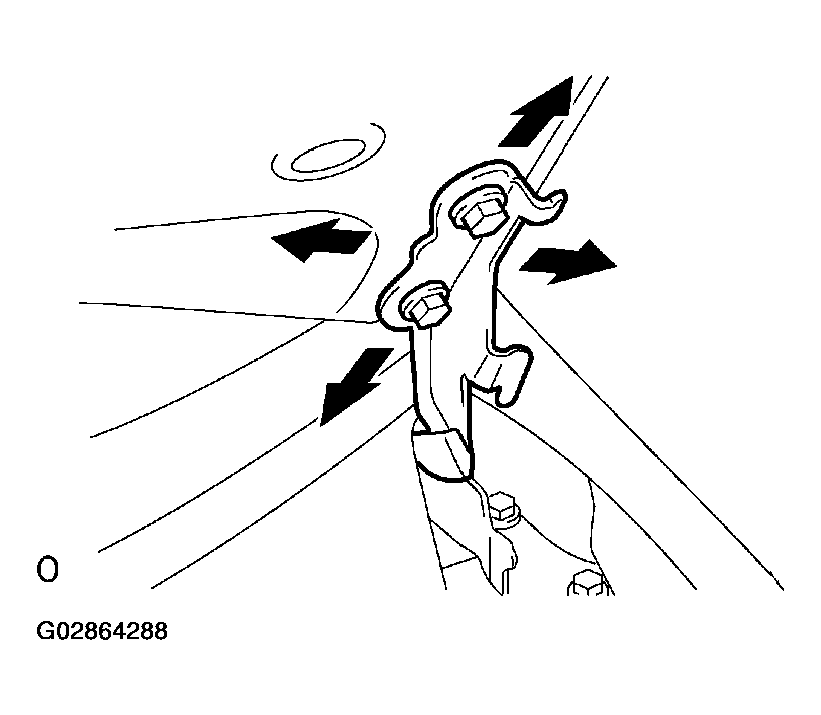

  Fig 3: Using Hood Hinge Bolts To Adjust Hood
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the hood by turning the cushions.

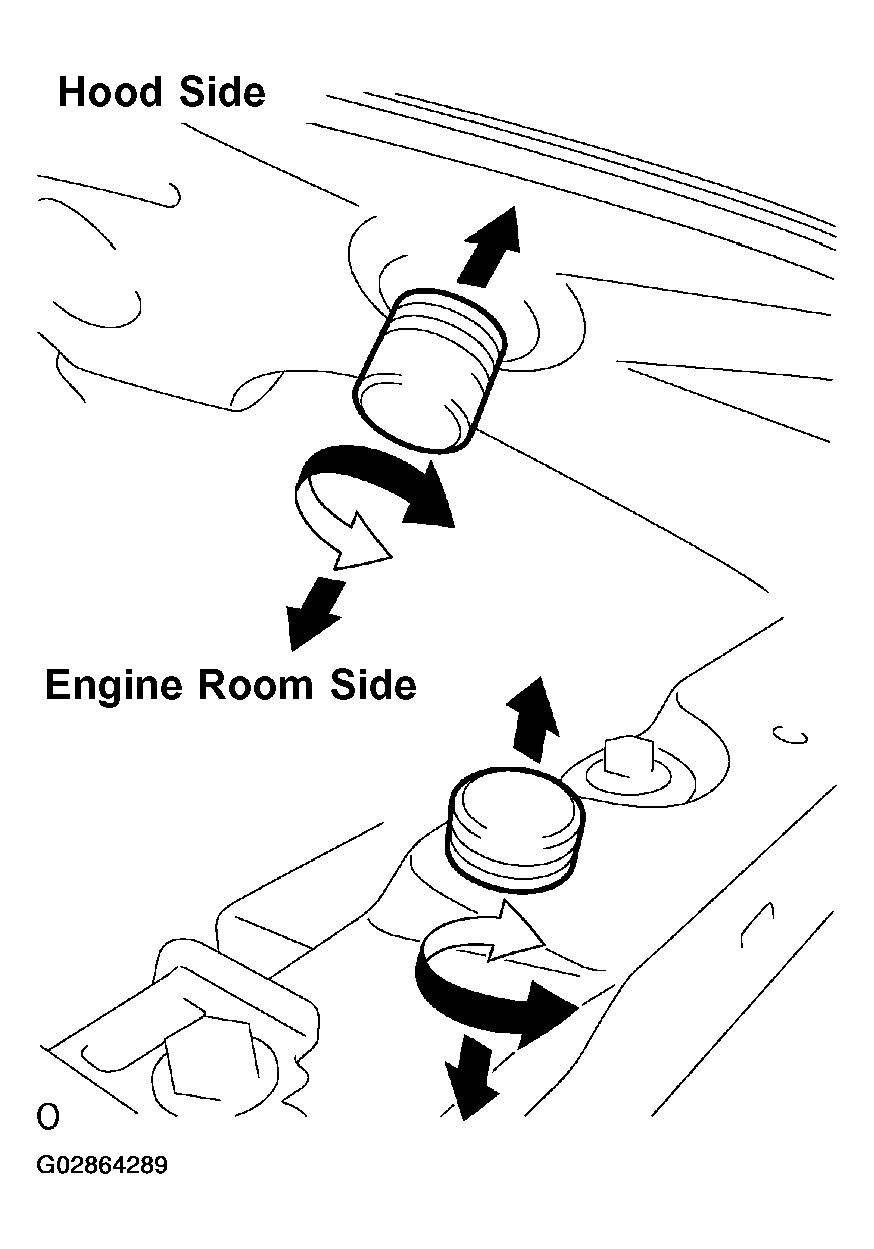

  Fig 4: Using Cushions To Adjust Hood
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, remove the hood lock release lever cover.

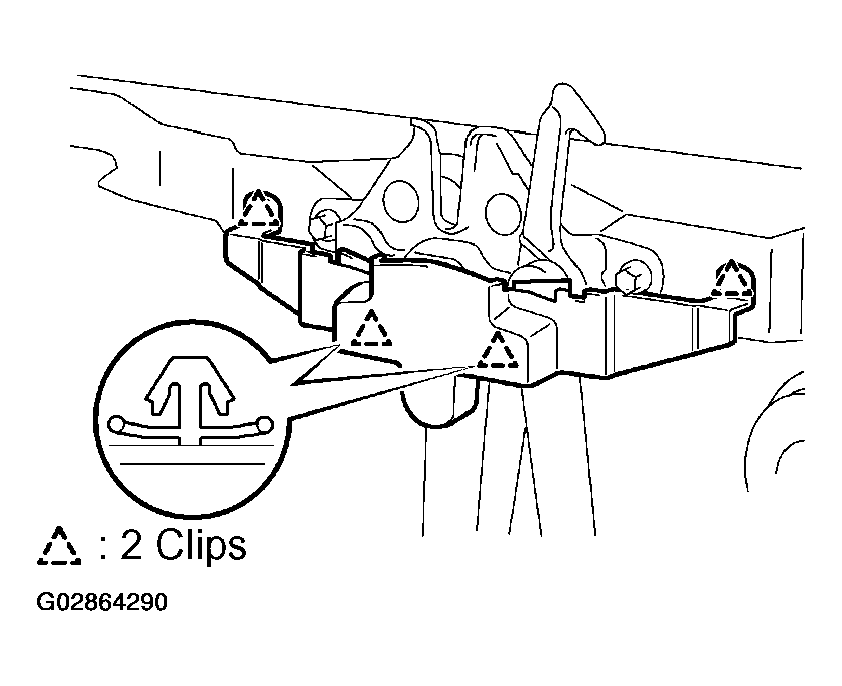

  Fig 5: Removing Hood Lock Release Lever Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.

  NOTE: Removing the protector damages the clips inside the protector, and therefore the use of a new protector is necessary on installation.
4. Adjust the lock by loosening the bolts.

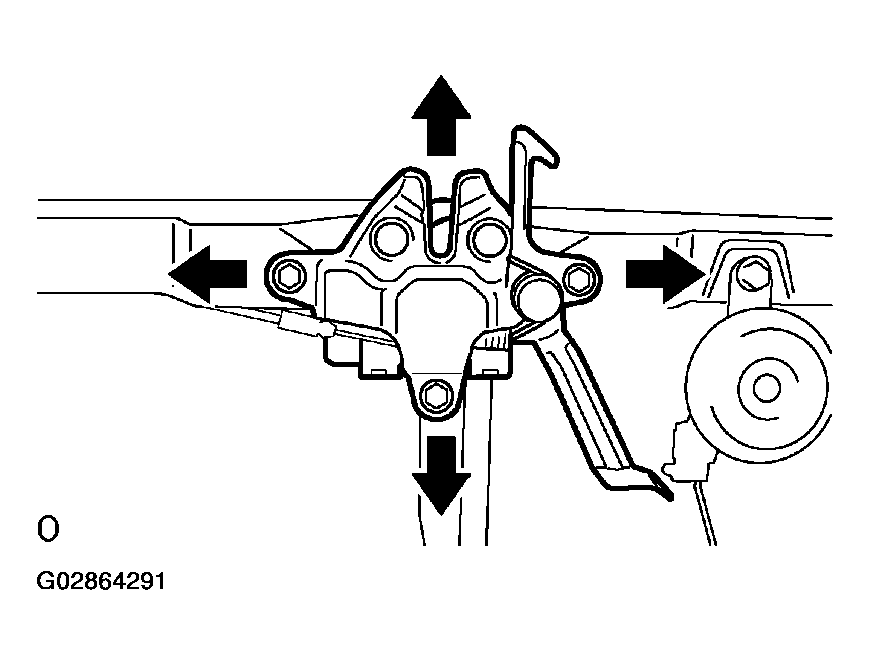

  Fig 6: Adjusting Lock By Loosening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
